A building grid is a one-, two-, or three-dimensional grid whose intersection points represent snap points for the graphical input. It is thus used as a drawing aid for positioning objects.
Entering in RFEM and RSTAB

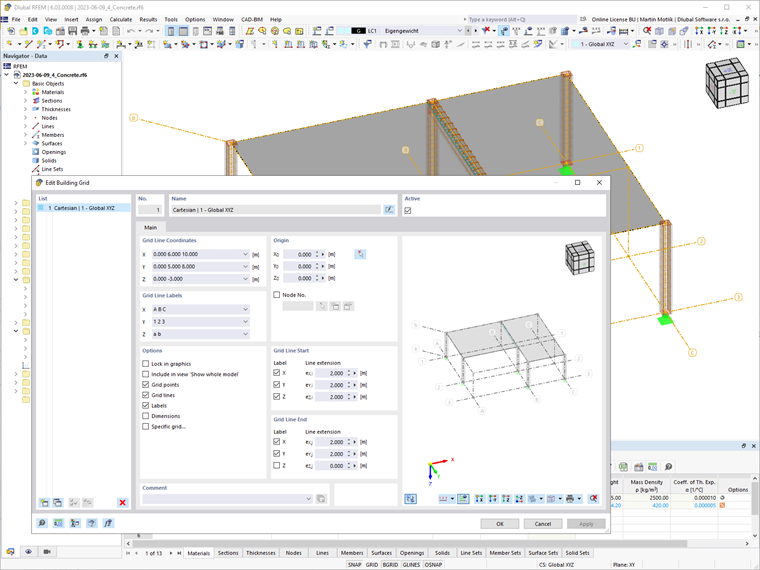

You can define a building grid by using the menu "Insert" → "Guide Objects" → "Building Grid" → "Dialog Box," or the corresponding shortcut menu in the Navigator – Data.
In the "Grid Line Coordinates" section of the dialog box, you can specify the position coordinates of the grid lines, separated by spaces. The zero point of the building grid is defined in the "Origin" section.
You can create the building grid not only in a Cartesian coordinate system, but also as an inclined, cylindrical, or spherical grid as a "specific grid".
