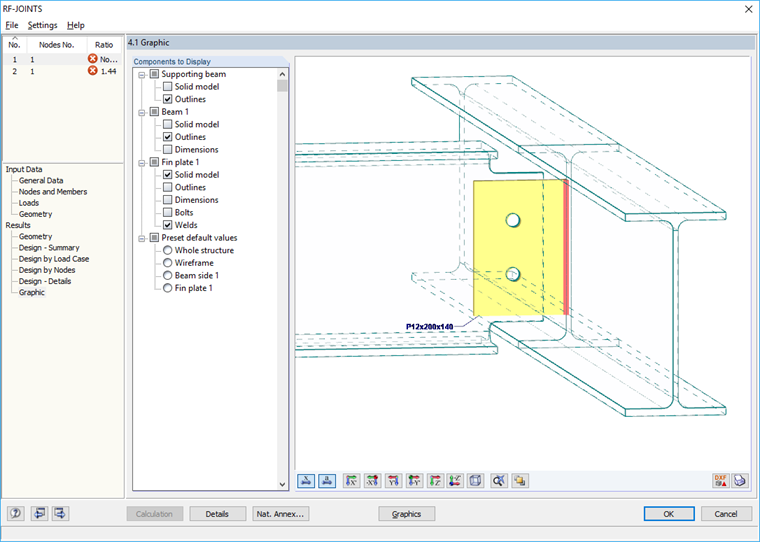

A fin plate is a generally rectangular steel plate that is used to connect several structural components.
Fin plates are often used especially for pinned steel connections. They are used as connecting elements and the connection is achieved by welding on one side and by screws on the other side.
