Background Layer

A background layer is used as a template for graphical modeling, which is thus much easier.

Background Layer in RFEM

Entering in RFEM and RSTAB

A background layer can be imported using the menu "Insert" → "Guide Objects" → "Background Layer" or the shortcut menu of Project Navigator – Data → "Guide Objects" → "Background Layers". The file to be imported requires a file in the DXF format.

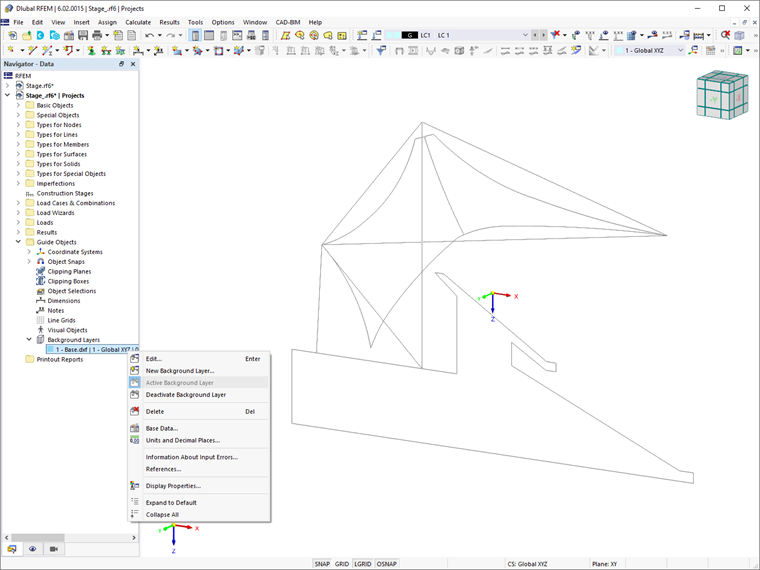

After importing a background layer, pay attention to the setting of the Object Snap: To activate or deactivate the snap mode to background layers, use the button in the status bar on the right.

• Object Snap

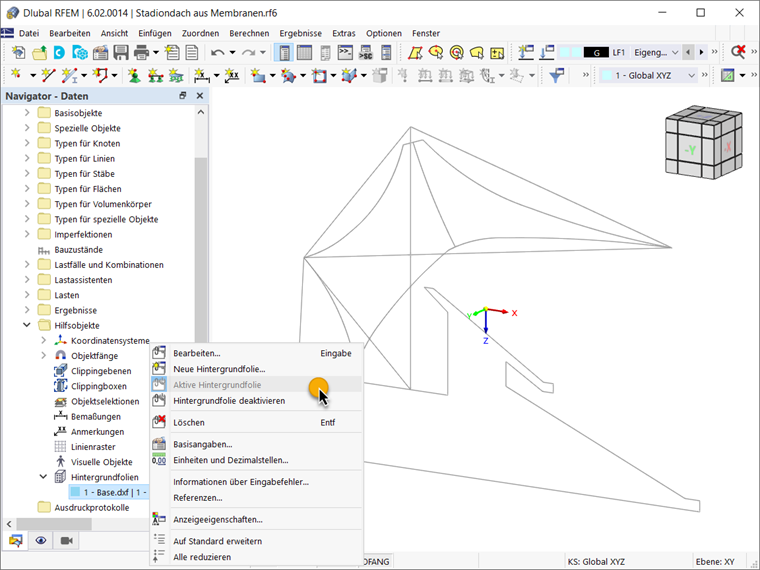

Furthermore, you can edit or move the background layer by right-clicking the entry of the background layer in the Navigator – Data.
