The Dlubal Structural Analysis Wiki explains technical terms used in structural analysis and design. The terms are given in alphabetical order and are usually used in Dlubal Software.

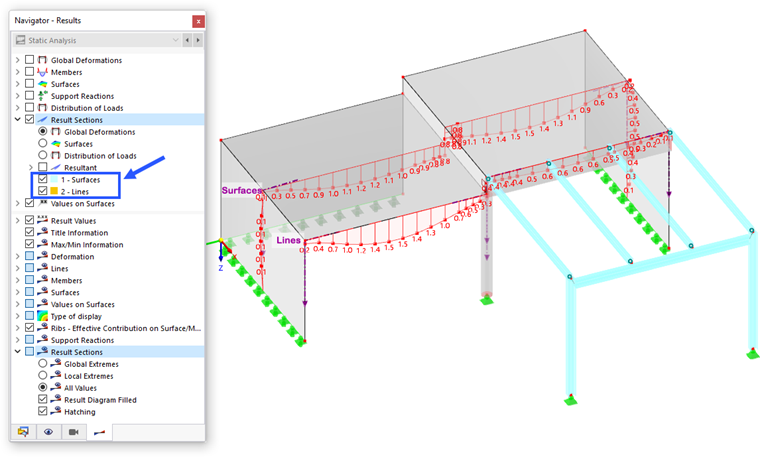

By using a section , a plane is placed through a component so that it is possible to perform a detailed evaluation of the surfaces and solids. Therefore, in RFEM 6 the section is named Result Section and managed under the result objects.
The results of a section can also be displayed as Result Diagrams in a separate window.
