Form-Finding of Membrane, Cable, and Beam Structures
The "Form-Finding" add-on finds the optimal shape of members subjected to axial forces and tension-loaded surface models. The resulting model shape with the active force conditions is used as a universally applicable initial state for the entire structural analysis.
- The "Form-Finding" add-on was developed to search for the optimal shape of members subjected to an axial force and of surface models subjected to tension.
- In the form-finding process, the program considers the equilibrium between the axial force in members or the membrane stress in surfaces and the specified boundary conditions.
- This process creates a new model shape with an active force conditions.
- The resulting model shape with active force conditions is available for you as a universally applicable initial state for further calculation of the entire structure.
Main Features of Form-Finding
Designed with Form-Finding for RFEM 6
Fantastic and Professional Support
I would just like to send a quick note to wish everyone at Dlubal well, in particular I would like to say thank you for the fantastic, thorough and professional support you provide.
Powerful, Easy to Use, Easy to Learn…
We adopted Dlubal in our work and haven't looked back. Powerful, easy to use, easy to learn, with mercifully simple output (once set up).
.png?mw=192&hash=f63e4a3f1836233005de32f60201d5392e507cf1)
Results

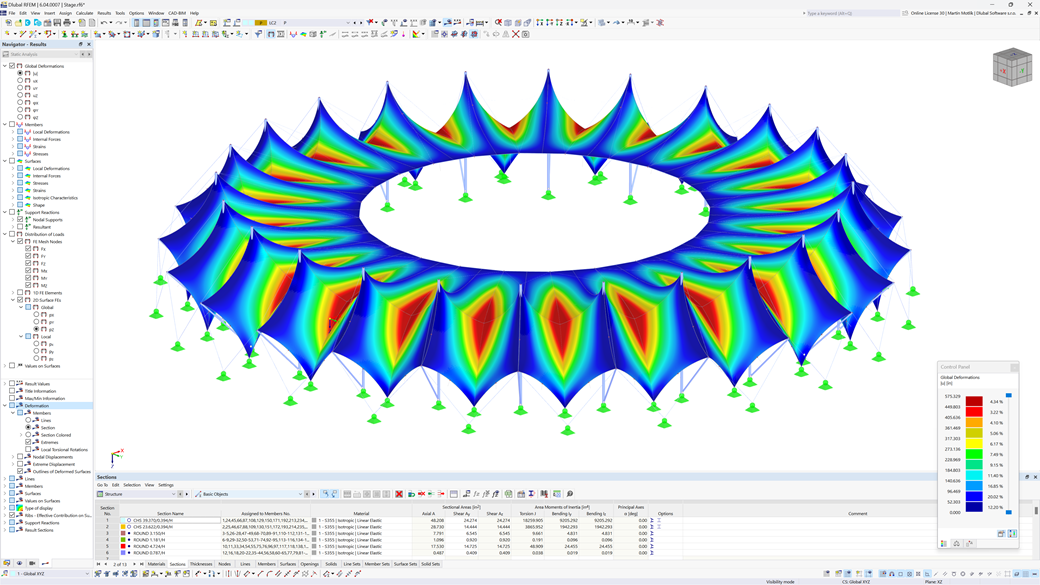

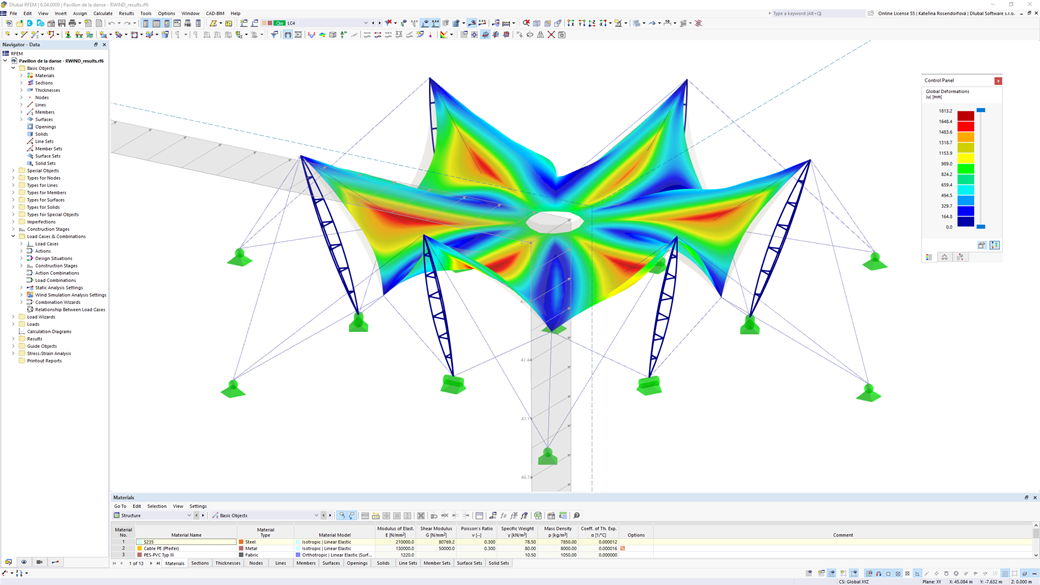

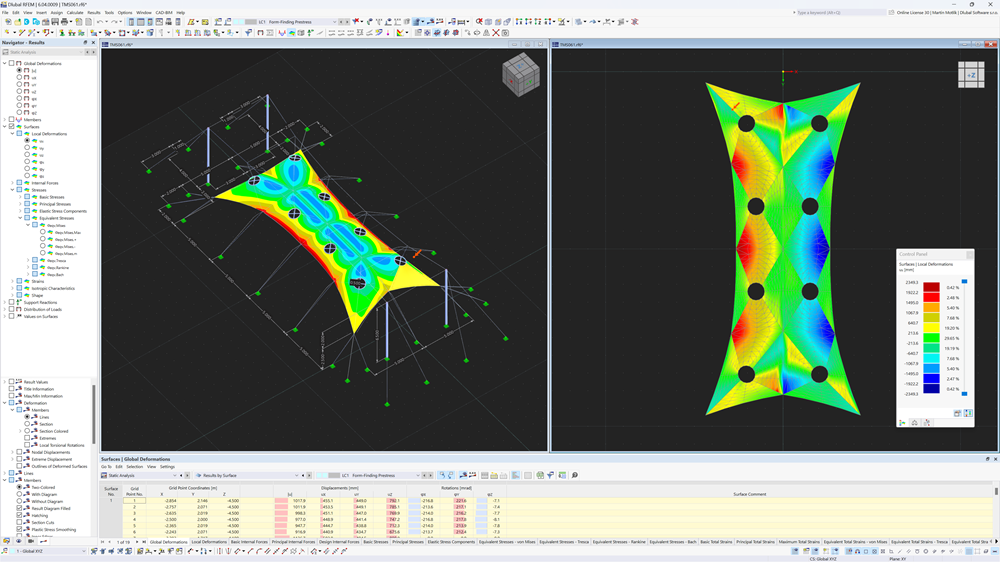

In the "prestress load case", the form-finding process creates a structural model with active forces. The deformation results show the displacement from the initial position to the form-found geometry. The results based on the force and stress clarify the state for maintaining the shape. For the analysis of the shape geometry, the program provides you with a contour line plot and an inclination plot.
