Installation of Photovoltaic Roofing in Vendée, France

In the context of the energy transition, the production of renewable energy through urban infrastructures represents a major challenge in meeting current environmental requirements. Photovoltaic roofing offers an innovative solution that allows for the production of green electricity and the improvement of parking spaces.

Following this trend, GH Hervouet has collaborated with Spie Citynetworks on two projects to install photovoltaic roofing structures at two sites in the Vendée department in France.
Photovoltaic roof designed by GH Hervouet | Modular and durable structure
116x

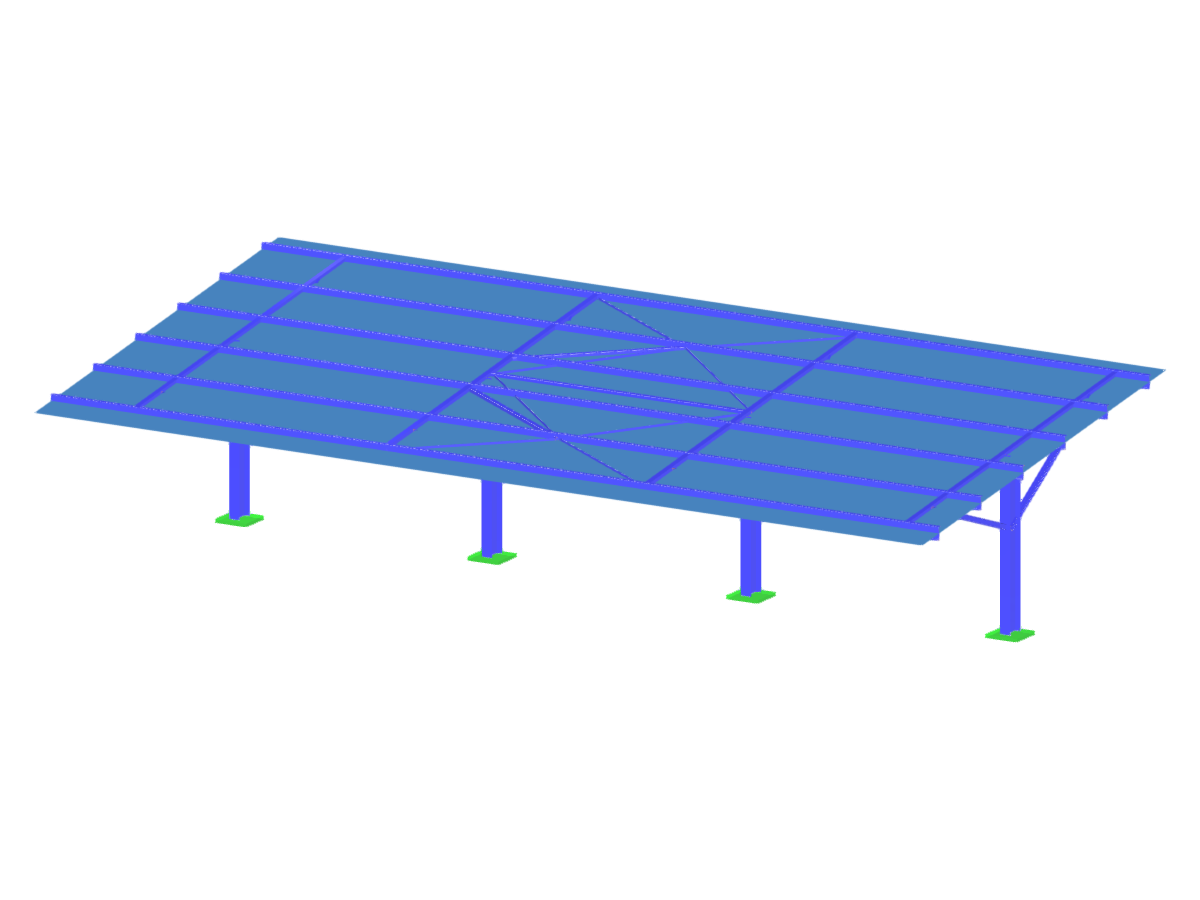

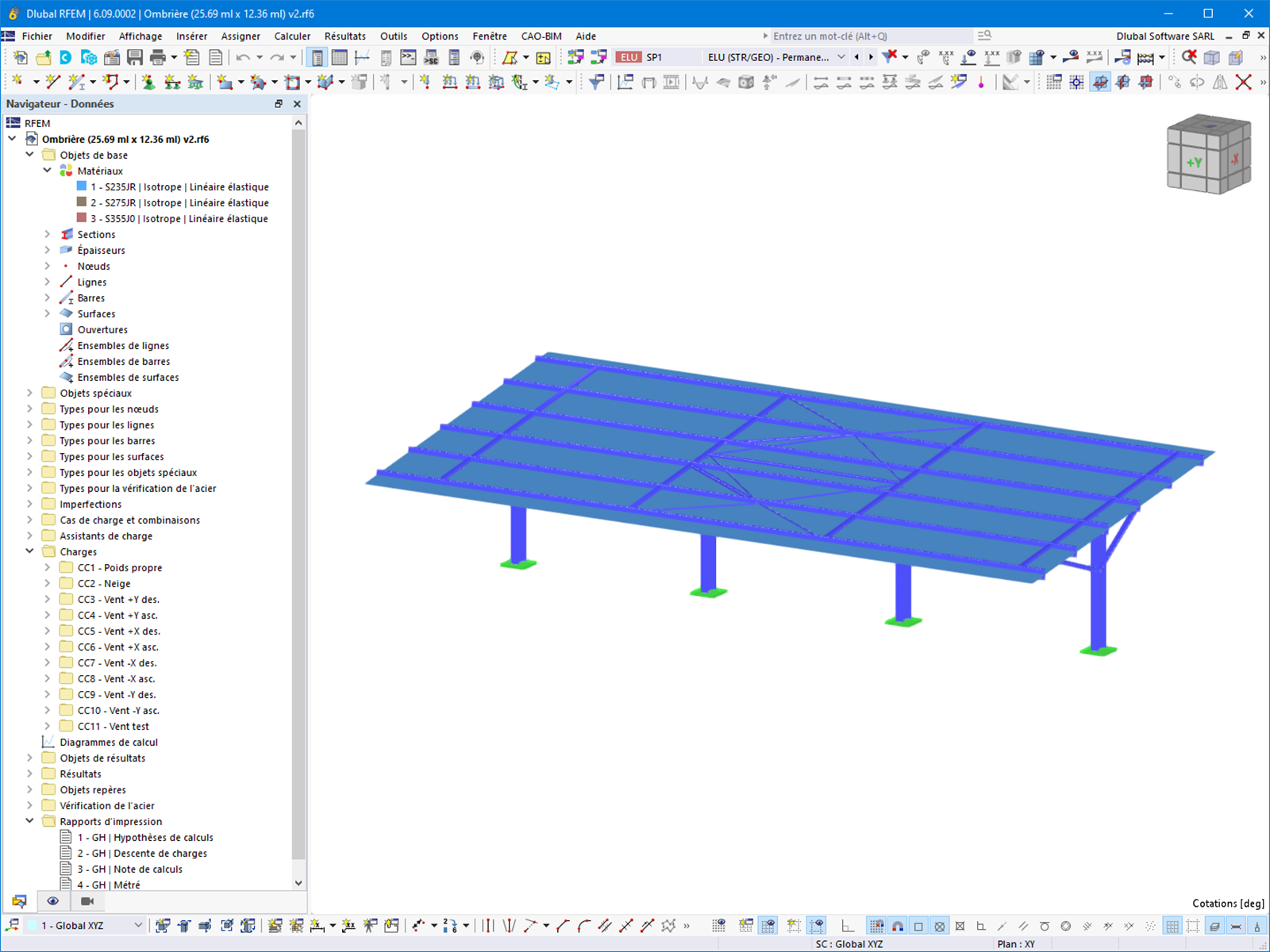

Model of GH-Hervouet Photovoltaic Roof in Vendée, France

Project Presentation

The projects concern the installation of seven photovoltaic roofing structures at two separate locations. GH Hervouet's responsibilities include the planning, structural analysis, design of the steel components, and the manufacturing and installation, in order to guarantee the safety and durability of the structures.

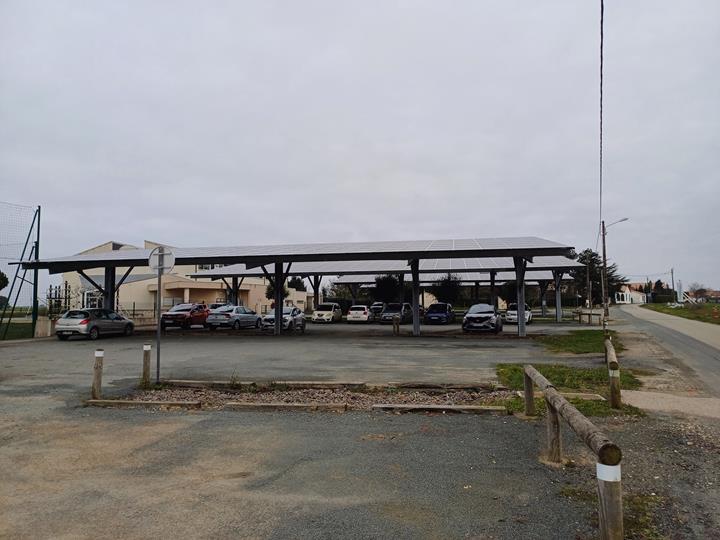

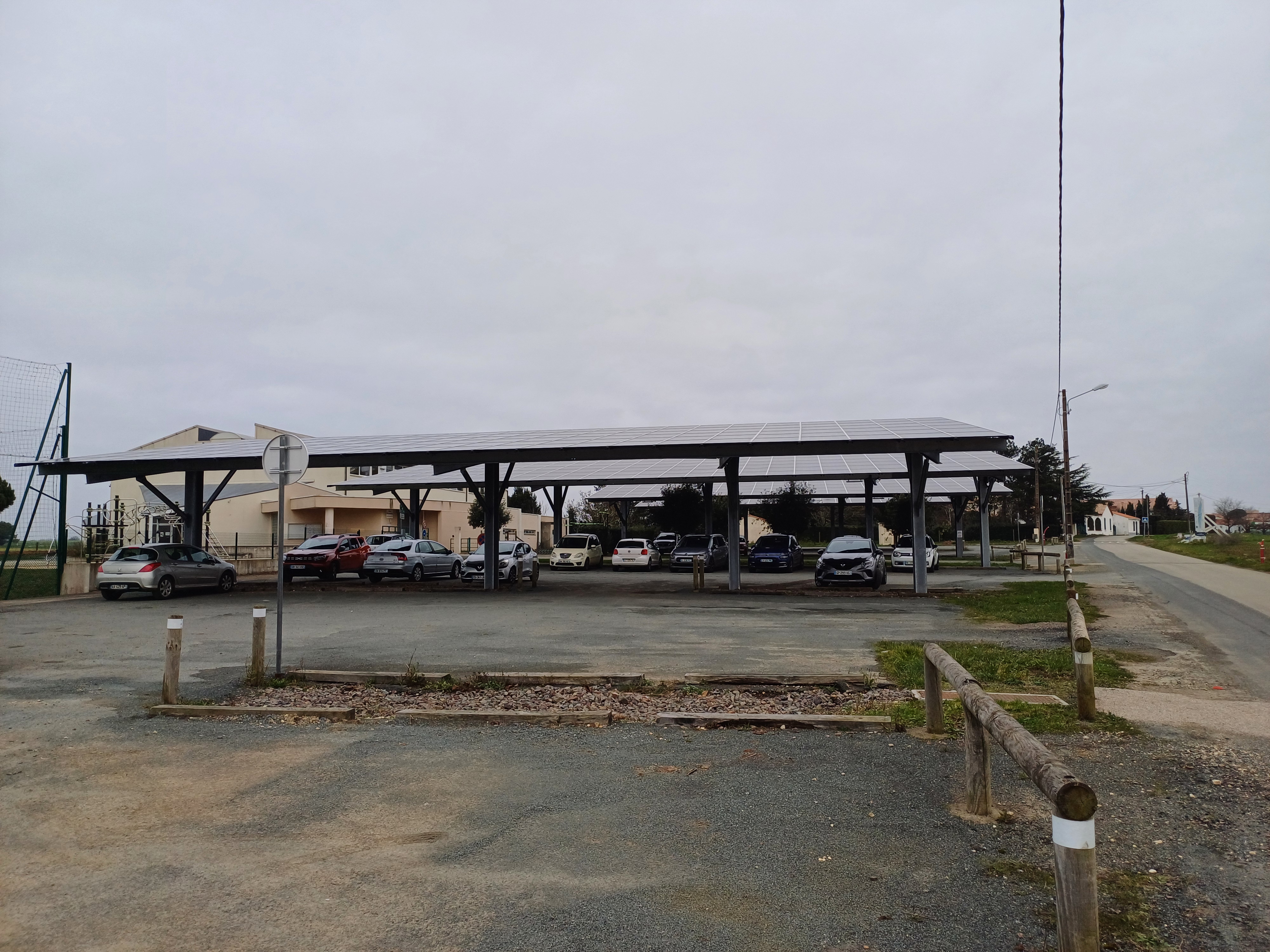

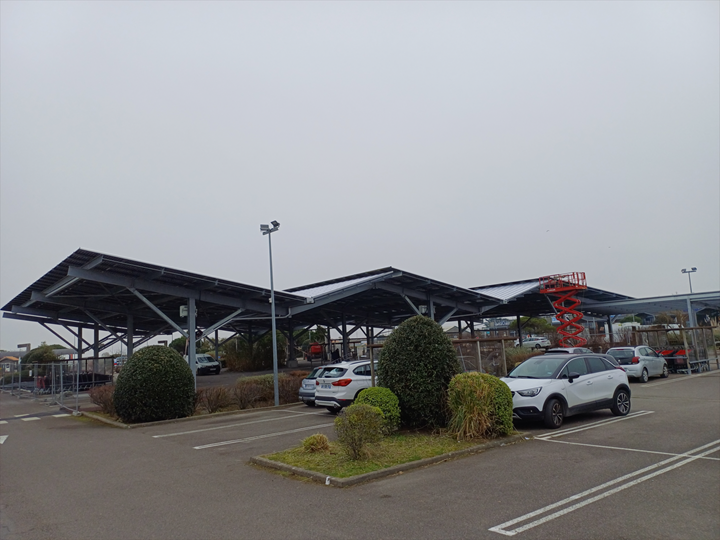

In the sports hall parking lot in Longeville-sur-Mer, four photovoltaic structures have been installed with transparent panel roofs between the structures to improve protection against the weather and provide cover for parked vehicles. In Noirmoutier, the Intermarché carpark has been equipped with three structures, which are connected to each other by transparent panels.

The roofing structures have a ramp length of 12.36 m (40.55 ft) and a length of between 25.7 m and 30.3 m (84.3 ft and 99.4 ft). The translucent roofs have a width of between 6.3 m and 6.5 m (20.7 ft and 21.3 ft). The minimum clearance height under the structures is 3.3 m (10.8 ft), enabling them to accommodate both light and commercial vehicles.

Structural Analysis

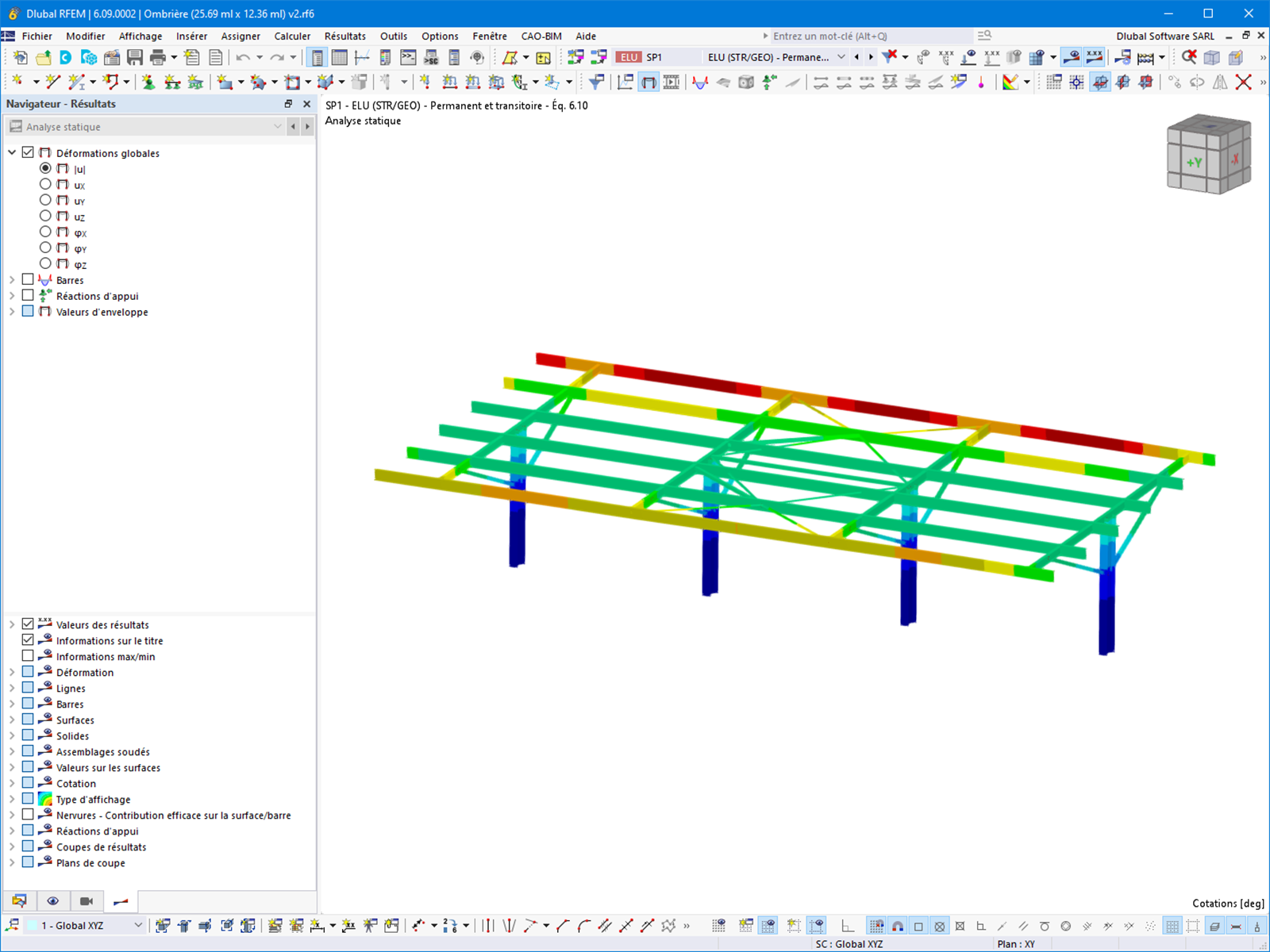

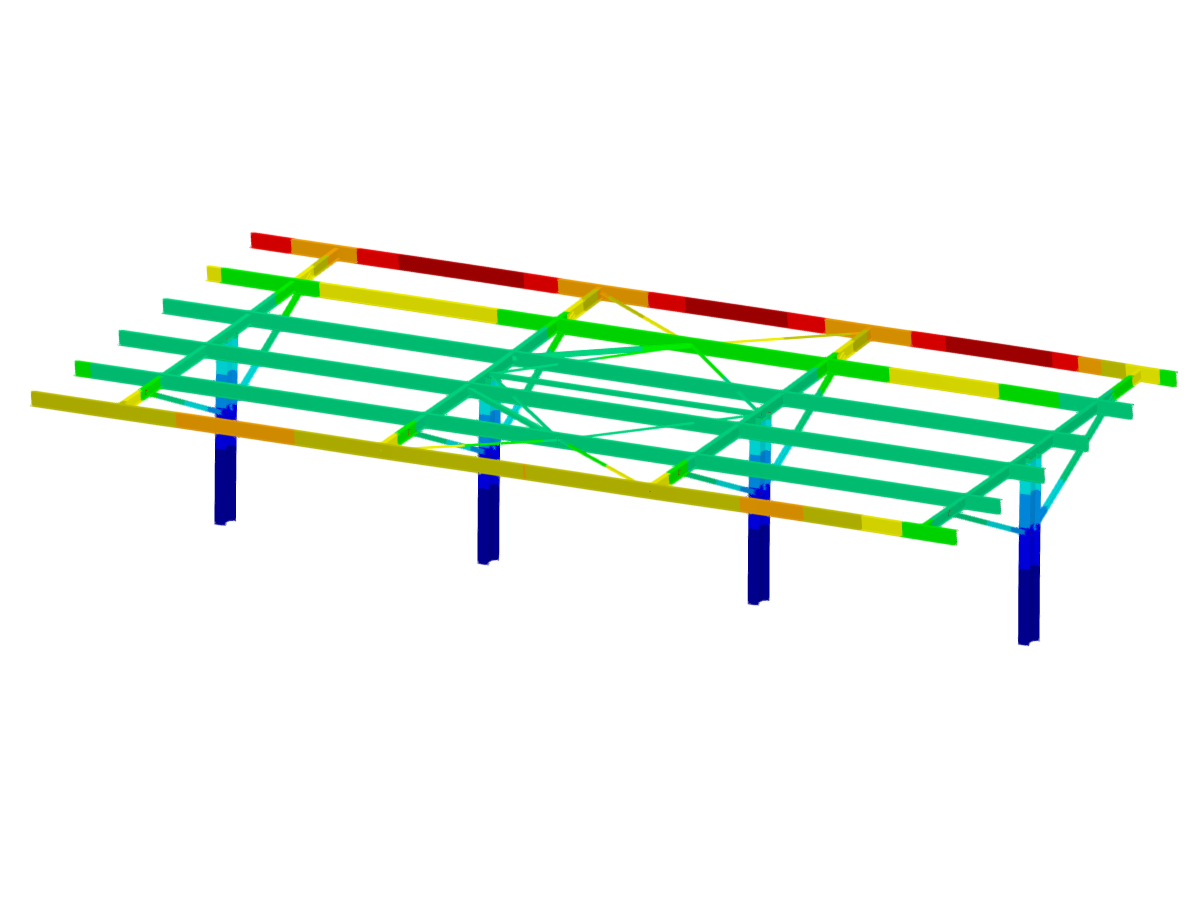

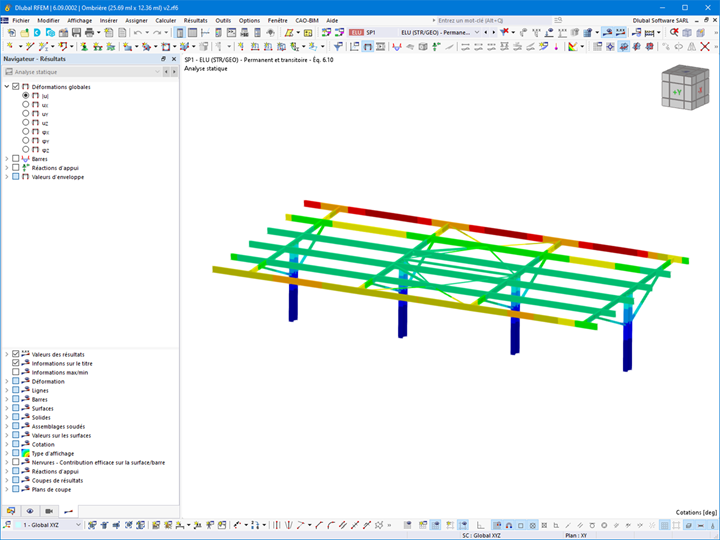

A structural analysis was carried out to determine the resistance of the roofing structures against various mechanical and climatic stresses.

The metal components were analyzed in the Steel Design add-on to guarantee resistance to bending, compression, and buckling according to Eurocode 3 and the French Annex.

The foundations were taken into account to ensure the overall stability of the roofing structures in the event of vertical and horizontal loads.

Location Rue de Noirmoutier
85680 La Guérinière, France

Salle Omnisport
85560 Longeville-sur-Mer

France
Structural Design GH Hervouet

Project Specifications

Model Data

Number of Nodes 62
Number of Lines 76
Number of Members 57
Number of Surfaces 1
Number of Solids 0
Number of Load Cases 11
Number of Load Combinations 78
Number of Result Combinations 0
Total Weight 7,307 t
Dimensions (Metric) 25,690 x 5,530 x 12,240 m
Dimensions (Imperial) 84.28 x 18.14 x 40.16 feet
