Software for Steel Structures
Questions about steel structures? Mia is here for you right away!
.png?mw=1024&hash=57381b3403d64cbfff746d4ec63688173298e8de)
Structural Models | Steel Structures
Main Program RFEM or RSTAB
Recommended Add-on Products for Steel Structures
.png?mw=600&hash=49b6a289915d28aa461360f7308b092631b1446e)
Construction Stages
Construction Stages Analysis (CSA) for RFEM 6
Add-On
The Construction Stages Analysis (CSA) add-on allows for considering the construction process of structures (member, surface, and solid structures) in RFEM.
Optimization of Model Parameters
Optimization & Cost / CO2 Emission Estimation for RFEM 6
Add-On
The add-on uses particle swarm optimization (PSO) to determine optimal parameters for parameterized models based on weight, cost, or CO2 emissions.
Smart Decision for 3D Modeling of Steel Structures Using RFEM 6
After a detailed evaluation of the solutions available on the market, we have decided on RFEM by Dlubal for the structural analysis and design of our three-dimensional steel structures.
The software complies with the Eurocode standards, has an intuitive user interface, and exceptional transparency and display of input data and results. The technical support proved to be of the highest quality, combining patience, competence, and reactivity, which reinforced our confidence in this choice.
Response Spectrum Analysis
Response Spectrum Analysis for RFEM 6
Add-On
The Response Spectrum Analysis add-on performs seismic analysis using multi-modal response spectrum analysis. The spectra required for this can be created in compliance with the standards or can be user-defined. The equivalent static forces are generated from them. The add-on includes an extensive library of accelerograms from seismic zones that can be used to generate the response spectra.
Support and Learning
We provide professional support and many services in order to help you with finding a quick and efficient solution for your projects.
.png?mw=192&hash=f63e4a3f1836233005de32f60201d5392e507cf1)
.png?mw=1696&hash=b06292b9fd52b802c8d2c2972825b02085a35ead)

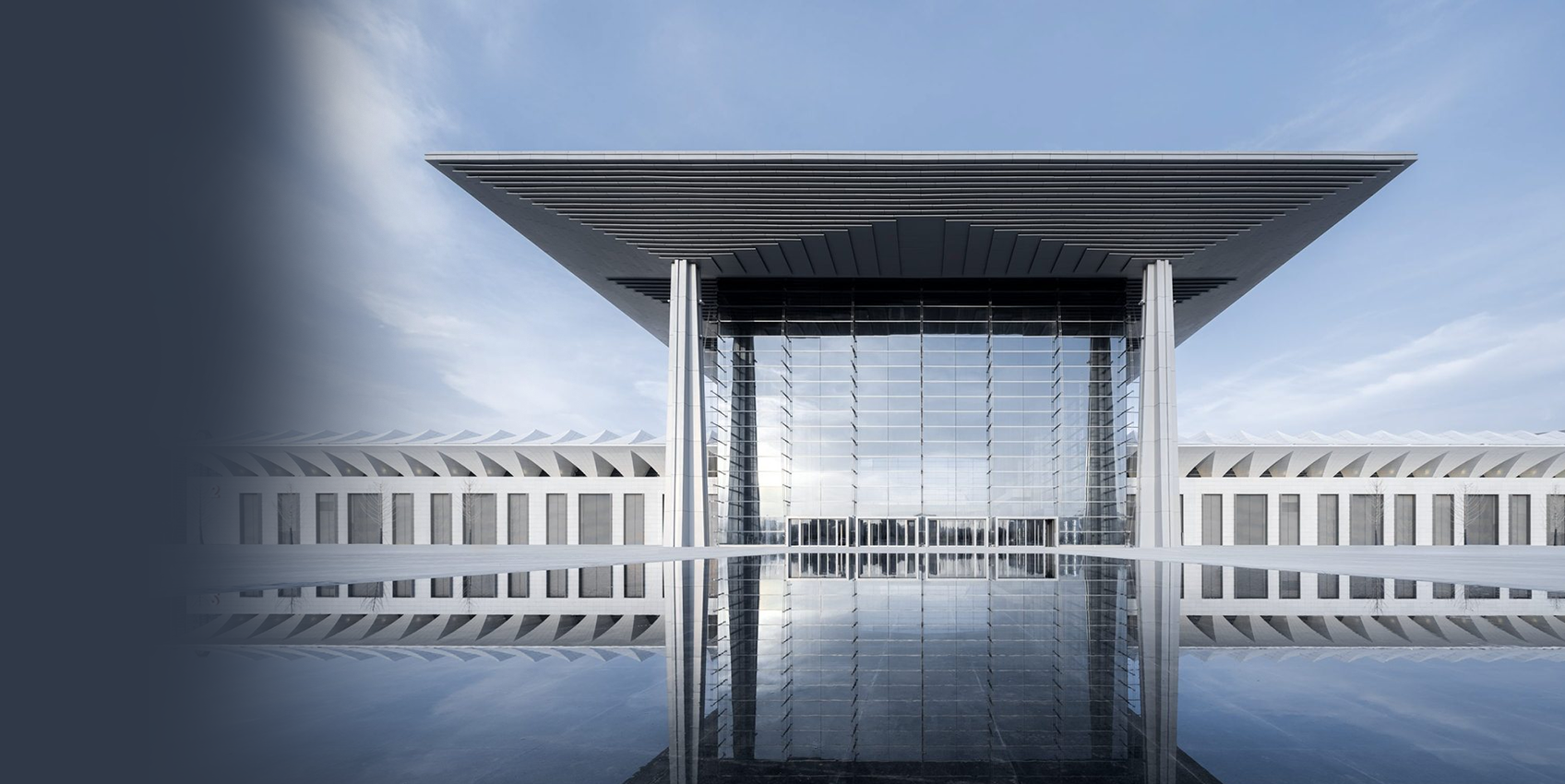

Silk Road International Exhibition Center
