Renovation of Nicolas Untersteller College in Stiring-Wendel, France

Built in 1972, the college had become obsolete and no longer met current standards or housing needs. The renovation of the Stiring-Wendel facility is part of the Moselle département's investment plan to renovate its oldest and most energy-consuming colleges. The works began in early 2024, so that the college can reopen for the start of the new school year in September 2025.

After more than fifty years of service, the Nicolas Untersteller College in Stiring-Wendel, France, is undergoing a complete renovation to modernize and adapt it to current needs. Originally designed for more than 1,000 students, the school now accommodates just under 500. As a result, the footprint of the building will be reduced, freeing up building space for the community.

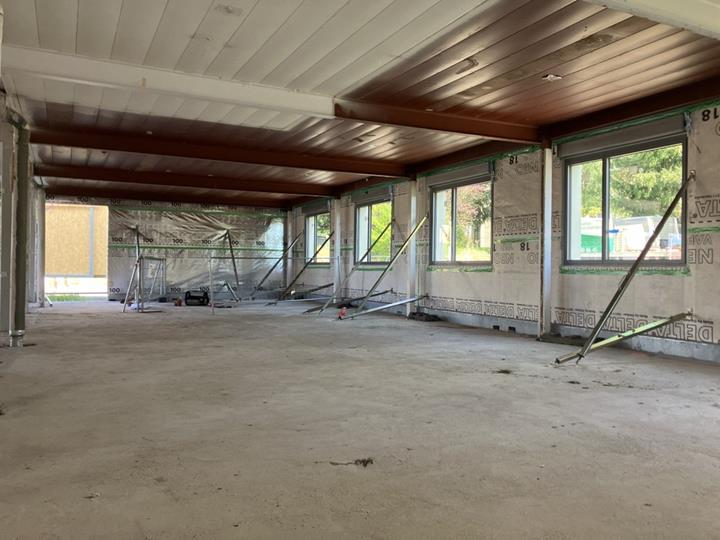

Of the college's three buildings, only Building A was retained, stripped down to its concrete and steel support structure. This decision to preserve the existing structure reduces CO₂ emissions by 25% compared to a new building. Extensions will be added to compensate for the demolished buildings.
The renovation program focuses on energy efficiency, using modern technologies, such as intelligent building management, Moselle sheep wool insulation, and a photovoltaic power plant.

Technical Details

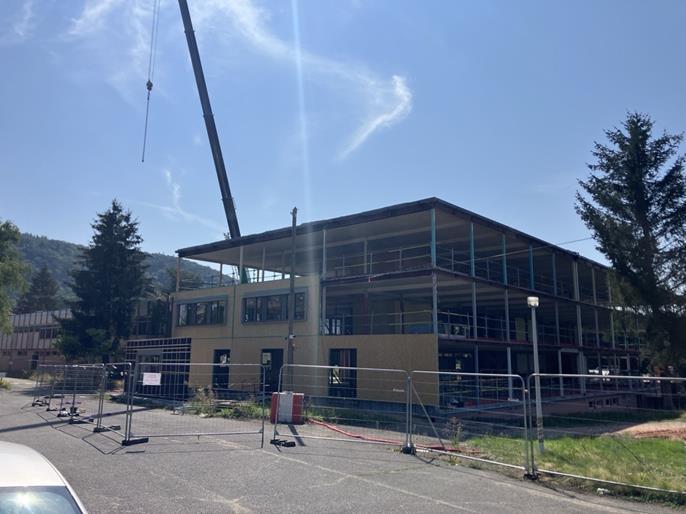

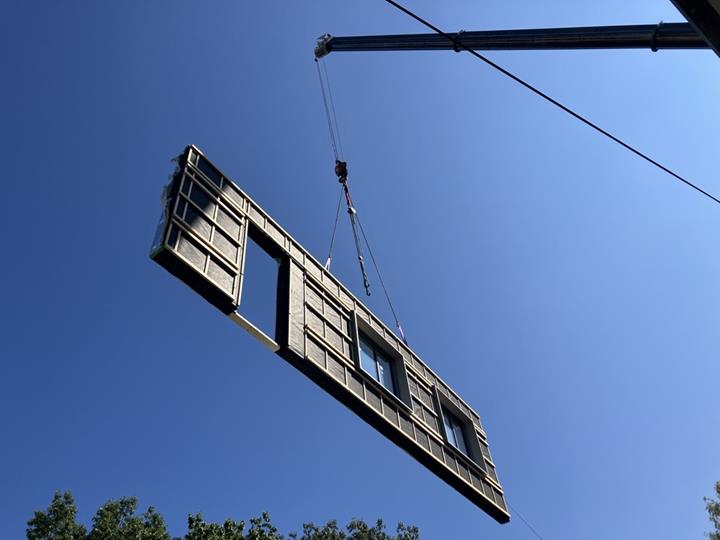

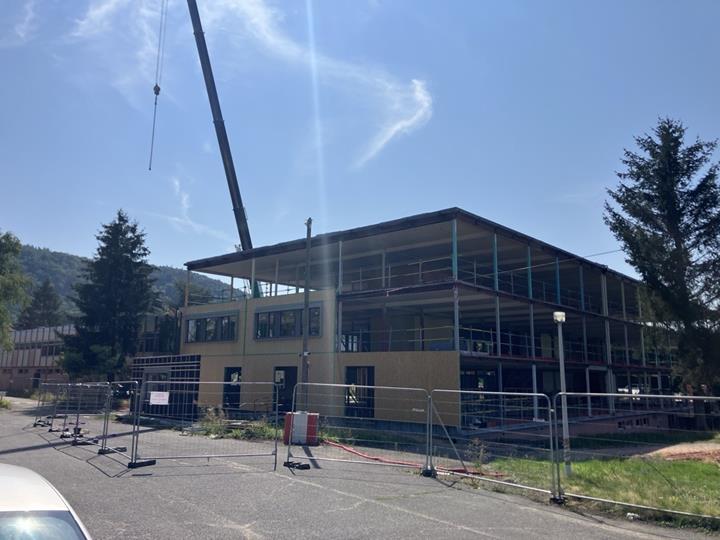

The construction company Le Bras Frère was commissioned by the general contractor Bouygues Bâtiment Nord-Est to design and install the timber facades. More than 1,600 m² (17,222 ft²) of timber facades will be installed to form the envelope of the existing structure.

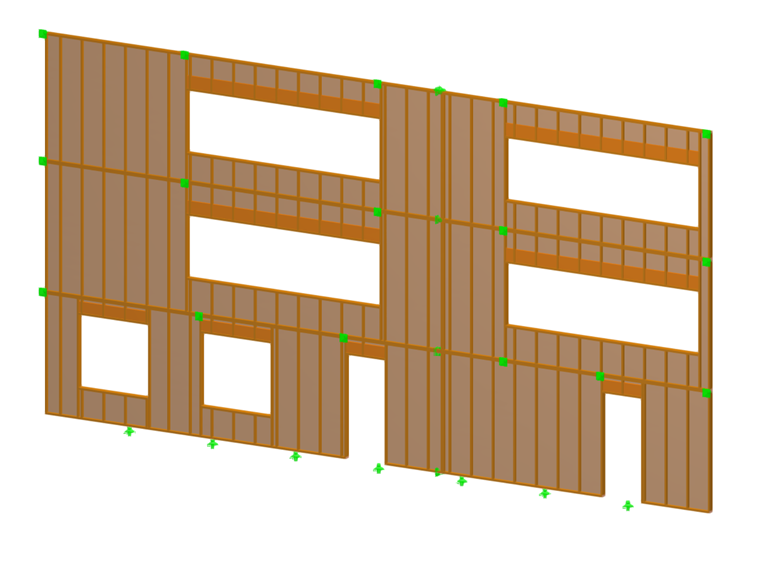

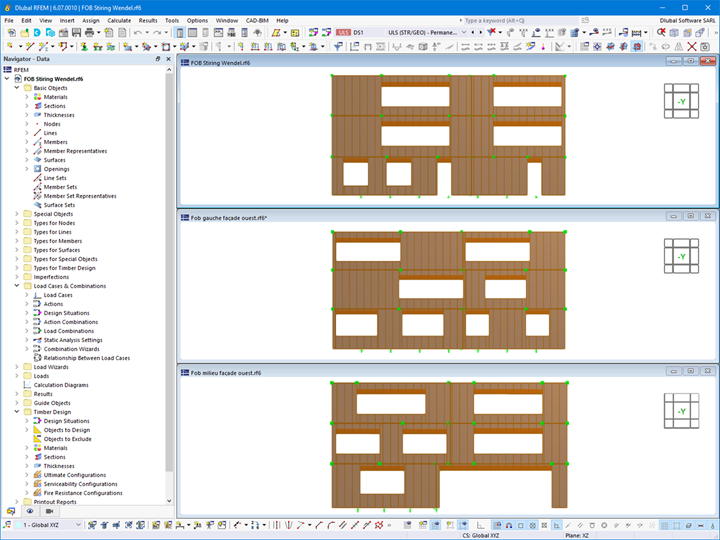

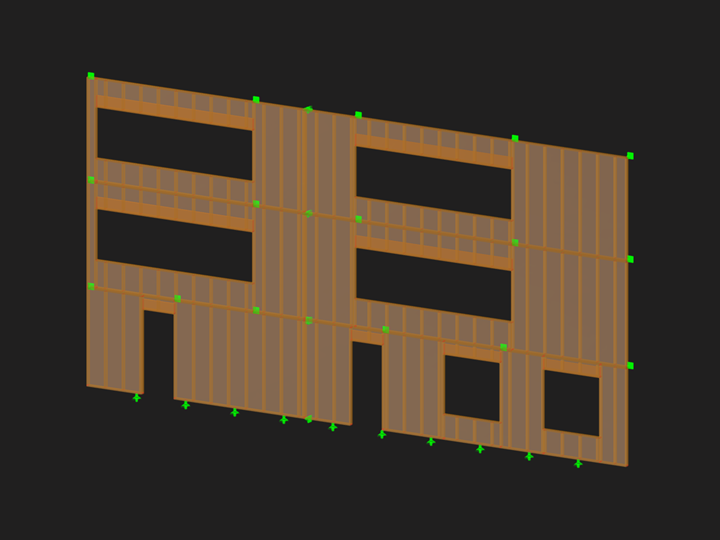

The engineering office modeled the timber frame facades using the structural FEA software RFEM 6. The new function for generating timber frame walls, available in the "Multilayer Surfaces" add-on, was used to configure the walls to be generated (bracing walls, posts, seams, seam types).

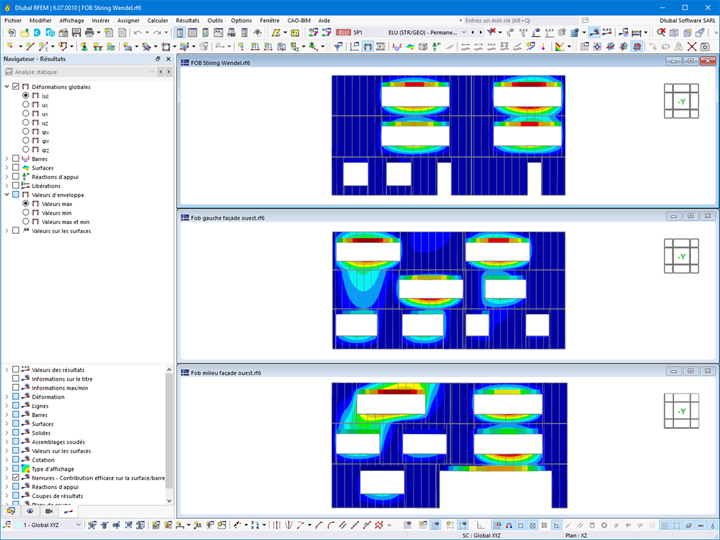

The design of facades covered self-weight and wind load. The design checks according to Eurocode 5 were carried out using the "Timber Design" add-on.

The modeling and loading of the facades also allowed to calculate the load reductions at the anchor points of the timber framed facades.

Location
Nicolas Untersteller College
7 rue George Bizet
57350 Stiring-Wendel
France
Investor SPL Moselle Construction Durable

Architects Omada Architectes


Imhotep architecture

www.imhotep-architecture.fr/
Structural Analysis and Design of Timber Facades Le Bras Frères



Project Specifications

Model Data

Number of Nodes 1092
Number of Lines 636
Number of Members 236
Number of Surfaces 31
Number of Solids 0
Number of Load Cases 2
Number of Load Combinations 10
Number of Result Combinations 0
Total Weight 4.988 tons
Dimensions (Metric) 18,436 x 9,477 x 0,079 m
Dimensions (Imperial) 60.49 x 31.09 x 0.26 feet
