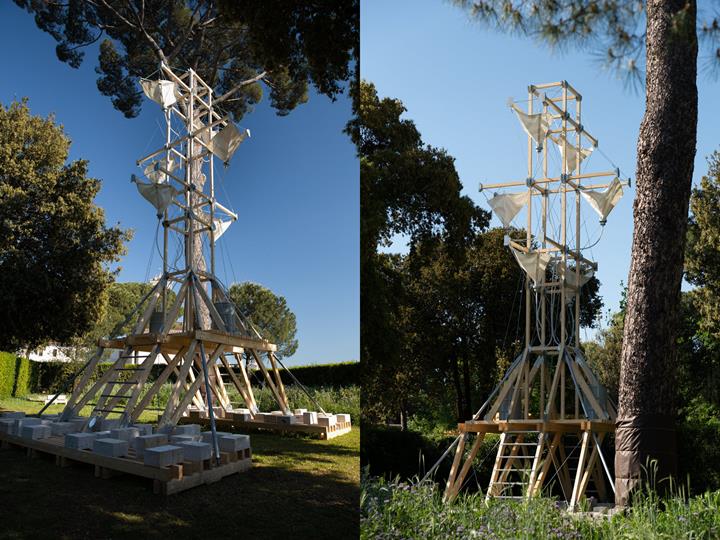

Parasol Treehouse at Festival des Cabanes in Rome, Italy

After its creation in 2022, the second edition of the Festival des Cabanes at the Villa Medici in Rome takes place from May 24 to October 1, 2023. Throughout the summer, it offers architects, artists, and people interested in art and culture the opportunity to visit the exhibition in the historic gardens of the Villa Medici. One of the seven cabin projects has benefited from the intervention of Atelier PoCo, a French customer of Dlubal Software, for its design and technical study.
Model 004209 | Model of Quai M Concert Hall
494x
Tower with Glulam Guy Wires

Structure

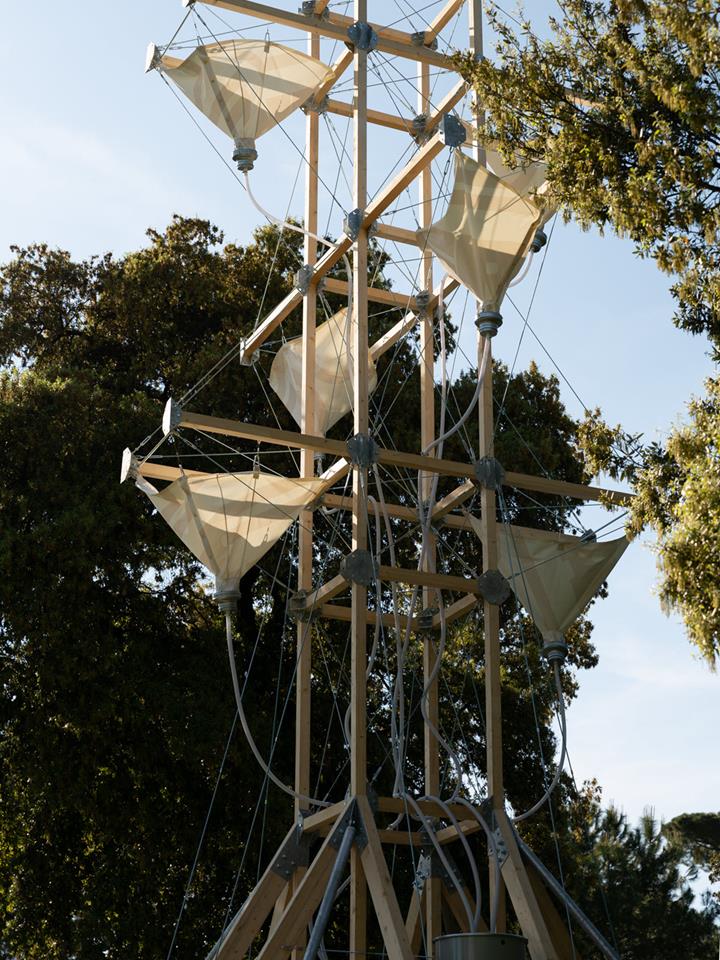

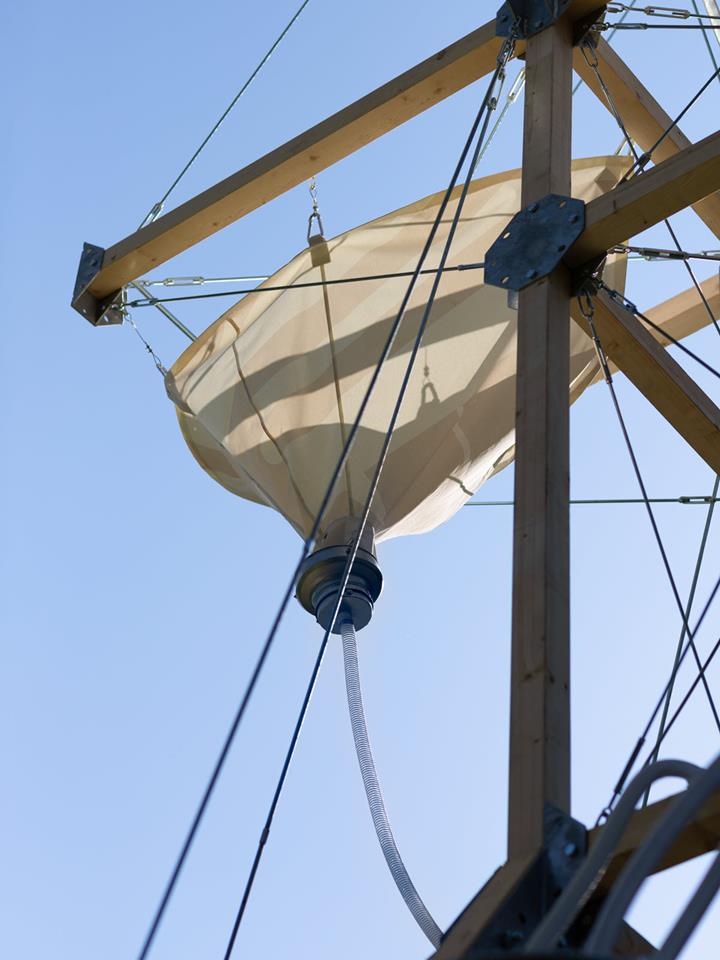

Le festival 2023 est marqué par la construction de la tour en bois de 13 mètres ayant pour objectif de récupérer l'eau de pluie et de la stocker. La forme de cette tour rappelle celle d'un entonnoir, avec une partie inférieure évasée sur 3,60 m et une partie supérieure élevée d'environ 7 m comprenant trois points d'ailes.

La structure est entièrement réalisée en bois lamellé-collé, offrant à la fois résistance et flexibilité. Pour assurer l'équilibre de la tour, plusieurs tonnes de travertins sont soigneusement disposées à sa base. Des tirants ont été disposés pour contreventer l'ensemble de la structure et garantir sa stabilité.

Étant exposée aux vents, la tour est soumise à des déplacements en tête qui peuvent atteindre plusieurs dizaines de centimètres. Cela exige une conception précise et une attention particulière aux assemblages. Dans ce projet, tous les assemblages sont articulés, permettant à la structure de s'adapter aux mouvements induits par les forces exerçant sur la construction et leur bon transfert jusqu’aux appuis.

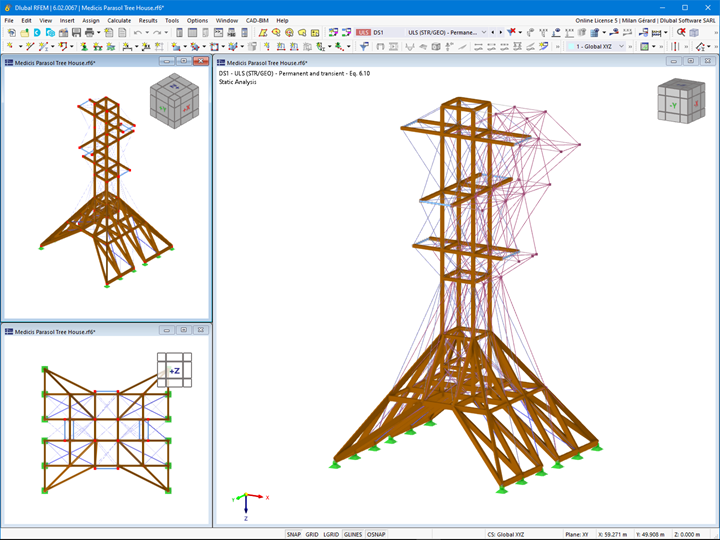

Modélisation dans RFEM 6

Le logiciel RFEM 6 a été utilisé pour la modélisation et la descente de charges de la cabane. De plus, il a permis aux concepteurs d'analyser et de simuler le comportement de la structure de la tour, en prenant en compte les charges appliquées avec le module d’analyse de stabilité.

Grâce aux modules spécifiques « Vérification de l’acier » et « Vérification du bois » intégrés dans RFEM 6, les éléments en acier et en bois ont pu être dimensionnés suivant les normes de calcul Eurocode. La possibilité de traiter une structure multi-matériaux dans le programme grâce à l'option du choix de la norme de combinaisons de charges "EN 1990 | Base + Bois", a joué un rôle significatif dans l'optimisation du temps de travail pour ce projet.

La construction de cette cabane en bois représente ainsi un exemple inspirant de l'alliance entre la créativité architecturale et les préoccupations environnementales dans le cadre du festival.

Location Villa Médicis, Viale della Trinità dei Monti
00187 Rome
Italy
Design Atelier CRAFT
Engineering Atelier CRAFT
Atelier Henri Terreaux
Atelier PoCo (Poésie Constructive)
Engineering Office for Structural Analysis Atelier PoCo (Poésie Constructive)
Assembly Atelier CRAFT
Manufacturing Agence togaether
Atelier CRAFT

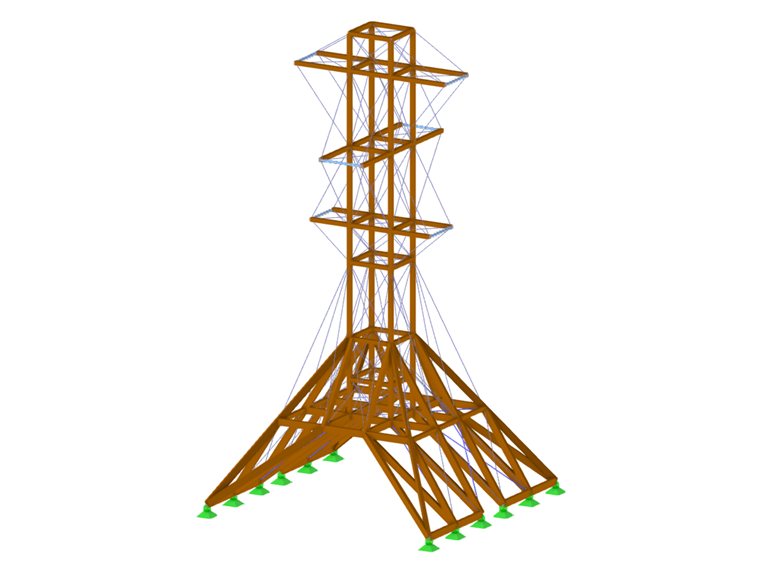

Project Specifications

Model Data

Number of Nodes 74
Number of Lines 299
Number of Members 284
Number of Surfaces 0
Number of Solids 0
Number of Load Cases 4
Number of Load Combinations 41
Number of Result Combinations 0
Total Weight 1.013 tons
Dimensions (Metric) 62.856 x 10.640 x 47.326 m
Dimensions (Imperial) 206.22 x 34.91 x 155.27 feet
