In Roost, Luxembourg, a new building complex is being built that relates to cars. Up to six car dealerships, a parking area, and a paint shop will be built on the site. The construction project was divided into two planning phases. The first phase includes three multi-story car dealerships. They have the same supporting structure.
Schatz Engineering, a customer of Dlubal Software, was responsible for the structural and design engineering of the building complex. RSTAB was used for structural design, and Tekla Structures for design engineering.
Structural Analysis and Construction
SCHATZ Engineering GmbH & Co. KGKarlsdorf-Neuthard, Germany
Project Management Realization
Immobilière Industrielle SA/AG
www.rii-sa.lu
Project Management
Jos Petry
124 R. Ste Anne
L-5471 Wellenstein, Luxembourg
3D Model (© SCHATZ Engineering)
Schatz Engineering, a customer of Dlubal Software, was responsible for the structural and design engineering of the building complex. RSTAB was used for structural design, and Tekla Structures for design engineering.
Structural Analysis and Construction
SCHATZ Engineering GmbH & Co. KGKarlsdorf-Neuthard, Germany
Project Management Realization
Immobilière Industrielle SA/AG
www.rii-sa.lu
Project Management
Jos Petry
124 R. Ste Anne
L-5471 Wellenstein, Luxembourg
3D Model (© SCHATZ Engineering)

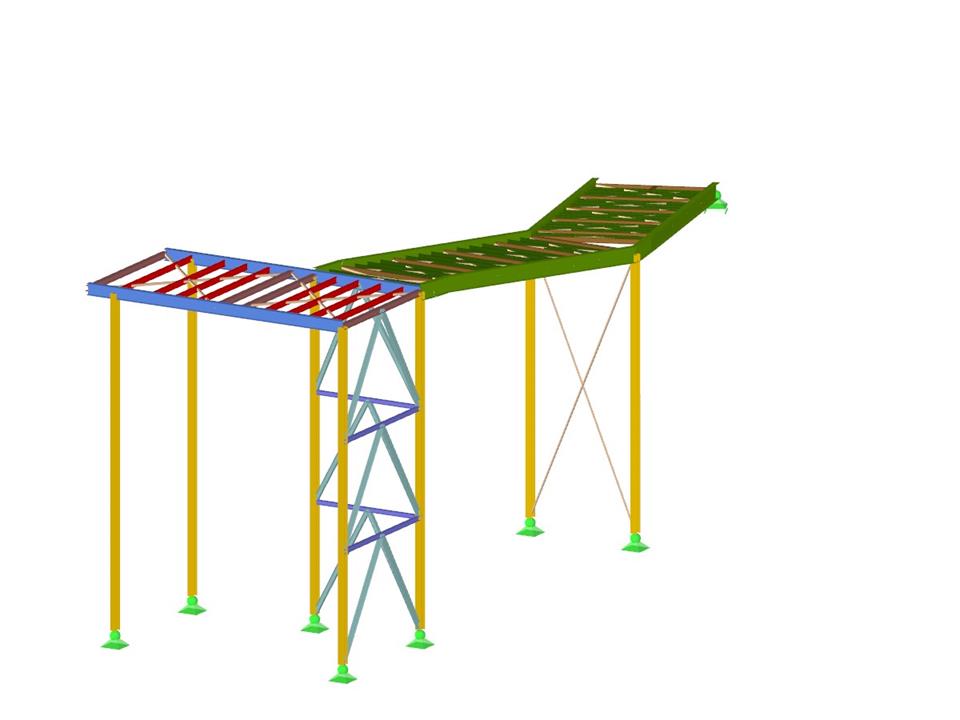

Steel Frame Structure
No Download Possible
Customer Project / View Only
Number of Nodes | 118 |
Number of Members | 211 |
Number of Load Cases | 6 |
Number of Load Combinations | 28 |
Number of Result Combinations | 2 |
Total Weight | 12.623 tons |
Dimensions (Metric) | 8.395 x 29.310 x 9.650 m |
Dimensions (Imperial) | 27.54 x 96.16 x 31.66 feet |
Program Version | 8.09.01 |
