The building has a floor area of 540 m² and is intended for craft warehouses. The complex is divided into 10 different units, with common access from the inner courtyard, each equipped with a mezzanine for storing goods or equipment.

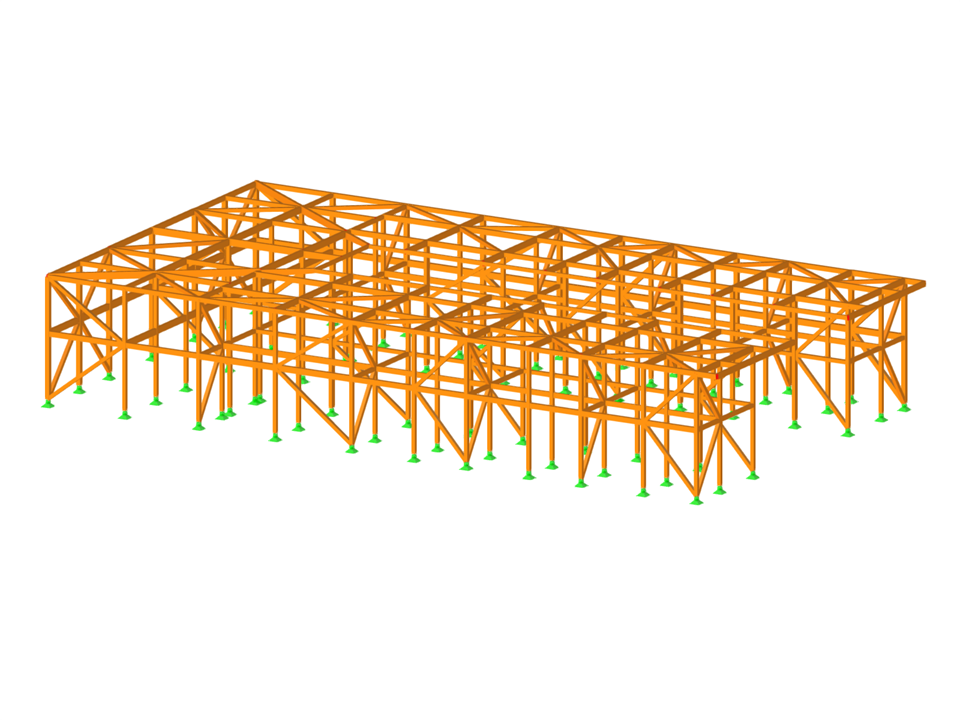

Timber Industrial Hall Siegrist Igor Carpenteria
Number of Nodes | 256 |
Number of Lines | 539 |
Number of Members | 491 |
Number of Surfaces | 0 |
Number of Solids | 0 |
Number of Load Cases | 12 |
Number of Load Combinations | 249 |
Number of Result Combinations | 1 |
Total Weight | 26.517 tons |
Dimensions (Metric) | 38.190 x 6.250 x 20.560 m |
Dimensions (Imperial) | 125.3 x 20.51 x 67.45 feet |
