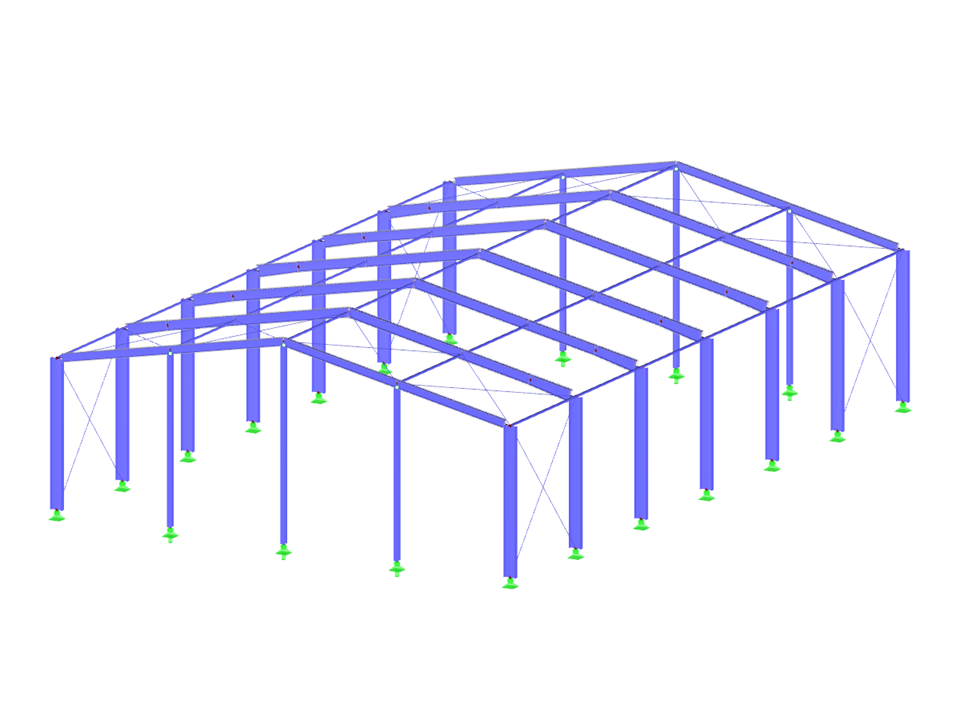

Steel Hall
  • Description
  • Reviews (0)

The steel hall is a versatile structure in the field of steel construction and is particularly suitable for industrial uses. Characteristic features are its load-bearing capacity and adaptability to various user requirements. This construction allows for high flexibility in design and usage.

Model Used in
Overall
0 out of 5 stars
This page has 0 user ratings.
5 star
4 star
3 star
2 star
1 star
(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Steel Hall

Number of Nodes 65
Number of Members 112
Number of Load Cases 16
Number of Load Combinations 328
Number of Result Combinations 2
Total Weight 19,421 t
Dimensions (Metric) 20.500 x 30.500 x 8.250 m
Dimensions (Imperial) 67.26 x 100.07 x 27.07 feet
Program Version 8.25.01

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
