Extension of Pierre Menanteau School Complex and Construction of Multi-Purpose Hall in Le Boupère, France

In Le Boupère, the old multi-purpose hall, built in 1970, had to be demolished. It was no longer up to standard and could not be renovated without significant investment. The Pierre Menanteau school was in need of more space and modern facilities. Therefore, the municipality decided to meet its needs in a single project.
Project in Boupère replacing an outdated multi-purpose hall and extending the Pierre Menanteau school complex
84x
Multi-Purpose Hall in Le Boupère, France

Project Presentation

This project in the municipality of Le Boupère consists of two parts.

The first part involved the modernization and extension of the Pierre Menanteau school, creating two new classrooms, a covered playground, and a redesigned playground with an educational garden.

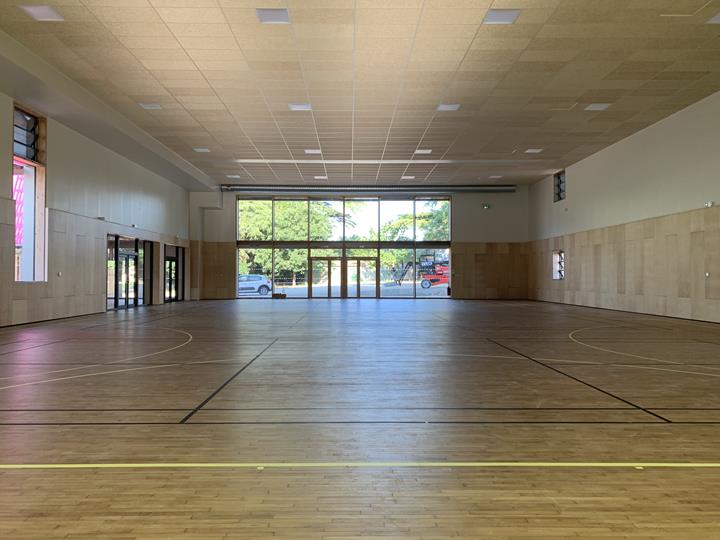

The second part consisted of creating a new multi-purpose hall comprising two areas separated by a removable partition: a small area used for school activities during the day and for social activities in the evening, and a large area used for sports clubs, social activities, events, and local celebrations.

The new buildings have been designed to be energy efficient, using bio-sourced materials (straw, wood fiber) to reduce the carbon footprint and meet today's environmental challenges. The project also includes reusing the old parquet flooring of the town hall.

Structural Design

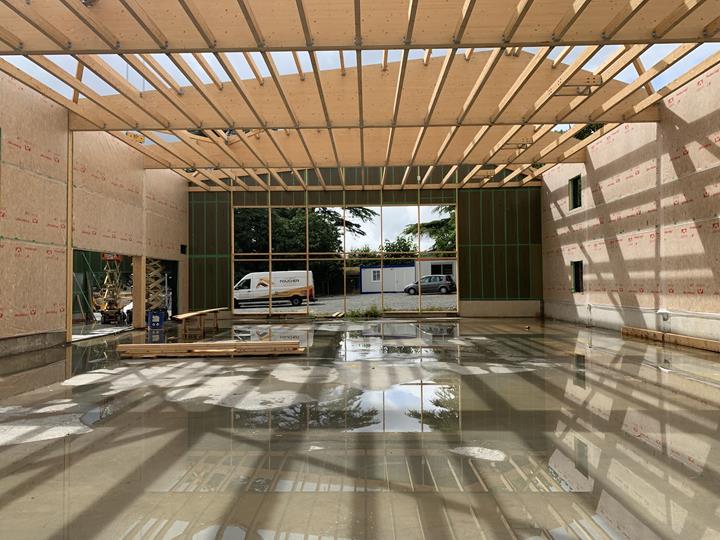

For this project, the company LCA Construction Bois was commissioned to design and build the timber structures, which represent 130 m³ (28,596 imp gal) and 1,207 m² (12,992 ft²) of timber frame walls, including 355 m² (3,606 ft²) of straw insulation, 1,140 m² (12,271 ft²) of cladding, and 33 exterior timber components made of composite materials and curtain walls.

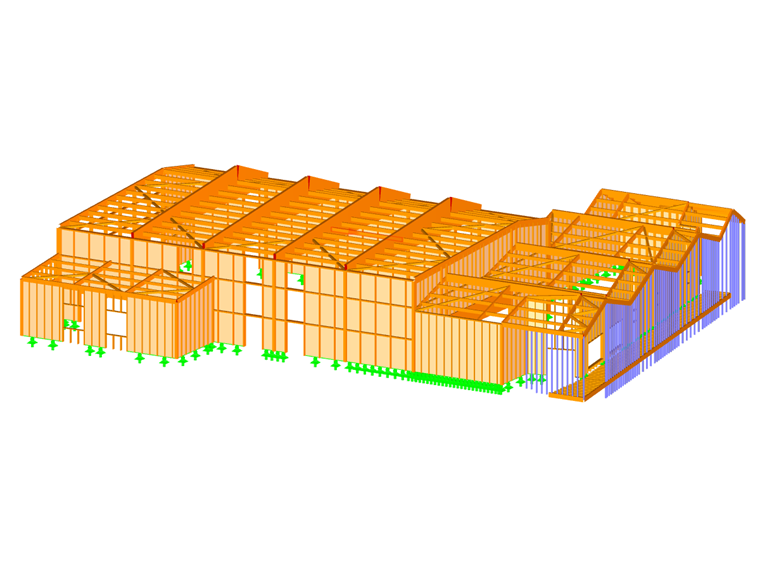

We are particularly interested in the multi-purpose hall. The largest area, used for sports and other activities, comprises a main structure consisting of four glulam portal frames spanning 18 m (59 ft), with a height of 7 m (23 ft) at the ridge. The gable roof, featuring photovoltaic panels, is supported by asymmetrical tapered beams. Timber frame walls form the two gables of the structure, bracing the frame structure. The gable attached to the small hall has an opening of 9.5 m (31.2 ft), allowing for the installation of the removable partition system.

The smaller space attached to the main hall consists of a timber-framed structure and a glued-laminated timber frame that forms a multiple roof. The roof overhangs provide a space for a raised terrace, and are supported by metal beams of circular cross-section.

Structural Analysis Software

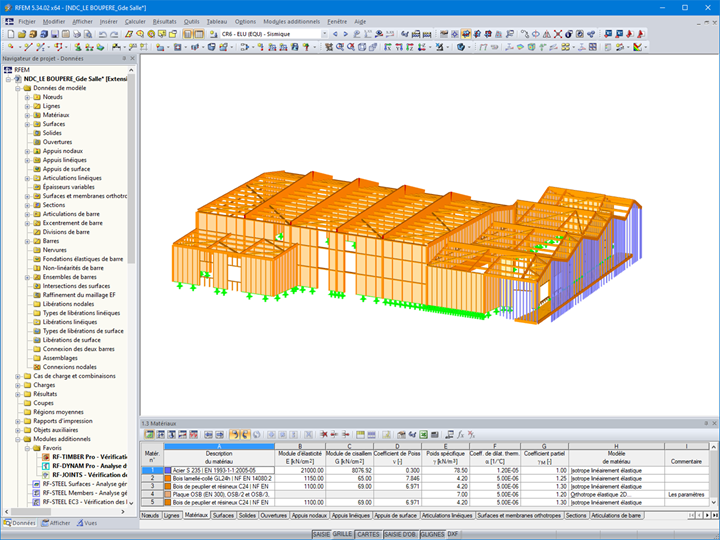

The engineering office of the LCA Construction Bois company carried out the global modeling of the multi-purpose hall using RFEM 5.

The RF-TIMBER Pro add-on module was used to analyze and design the laminated timber structures and framing system in compliance with EN 1995.

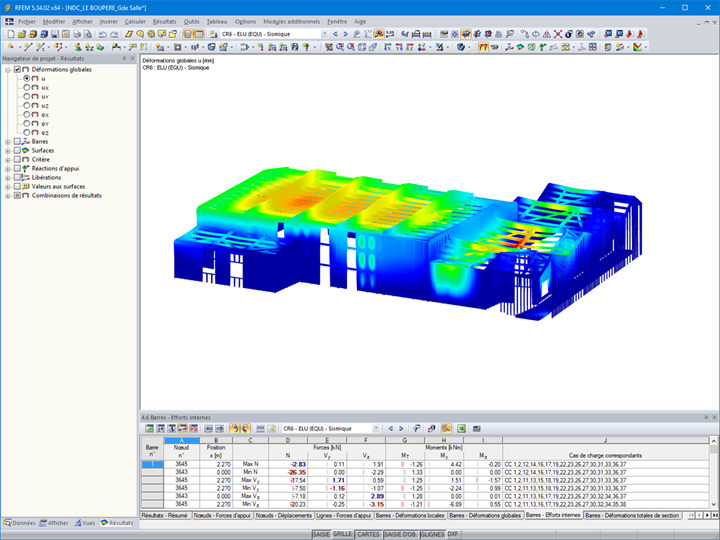

As the project is located in Seismic Zone 3, a seismic analysis was carried out using the modules of the RF-DYNAM Pro family.

Location 85510 Le Boupère
France
Investor Le Boupère City Council, France
Architect KASO Atelier d’architecture
Structural Design and Construction LCA Construction Bois

Project Specifications

Model Data

Number of Nodes 1335
Number of Lines 1711
Number of Members 1590
Number of Surfaces 75
Number of Load Cases 38
Number of Load Combinations 235
Number of Result Combinations 17
Total Weight 99.905 t
Dimensions (Metric) 41.563 x 37.005 x 8.411 m
Dimensions (Imperial) 136.36 x 121.41 x 27.6 feet
Program Version 5.31.01
