RX-TIMBER Glued-Laminated Beam

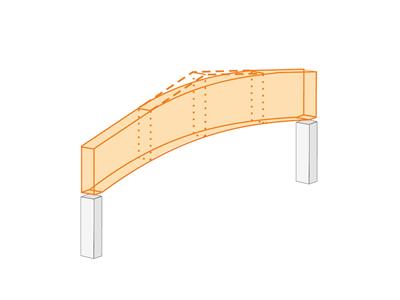

The RX-TIMBER Glued-Laminated Beam program is a specialized for the design of glued-laminated beams. It designs wide-span glulam beams of eight different beam types (parallel, monopitch roof, double tapered beam, and others). It is possible to consider typical stiffening elements for transversal tension; for example, bonded steel bars.

It allows you to perform the ultimate and serviceability limit state design of members and sets of members according to EN 1995‑1‑1 (EC 5) and optionally according to DIN 1052:2008‑12. The program provides you with an extensive library of material grades, load generators for wind and snow loads, and supports the fire resistance design.

Design of Glued-Laminated Beams

Total items: 4

RX-TIMBER Glued-Laminated Beam | Features

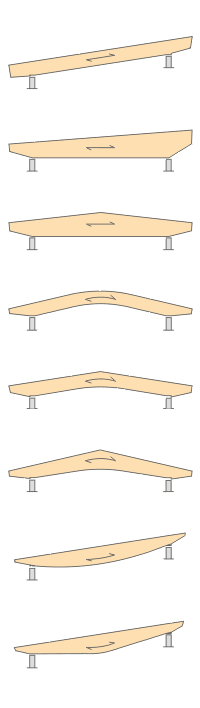

Design of the following beam types:
- Parallel beam
- Monopitch roof beam
- Double tapered beam
- Arched beam
- Pitched cambered beam with constant height
- Pitched cambered beam with variable height
- Fish Beam - Parabolic
- Fish beam - Linear with rounding in central area
Unsymmetrical beams with and without cantilevers
Arrangement of a loose ridge wedge
Optional consideration of stiffening elements for transversal tension
Two design types available for stiffening elements concerning transversal tension:
- Constructive if required
- Full absorption of tension stresses perpendicular to grain
Calculation of required number of stiffening elements for transversal tension and graphical representation of the arrangement in the beam
Simple geometry input with illustrative graphics
Convenient generation of snow loads according to EN 1991-1-3 or DIN 1055:2005, Part 5
Automatic determination of wind loads according to EN 1991-1-4 or DIN 1055:2005, Part 4
User-defined load cases and load applications
Automatic generation of all possible load combinations
Connection to MS Excel and access via COM interface
Material library for both standards
For design according to EC 5 (EN 1995), the following National Annexes are available:
- DIN EN 1995-1-1/NA:2013-08 (Germany)
- NBN EN 1995-1-1/ANB:2012-07 (Belgium)
- DK EN 1995-1-1/NA:2011-12 (Denmark)
- SFS EN 1995-1-1/NA:2007-11 (Finland)
- NF EN 1995-1-1/NA:2010-05 (France)
- UNI EN 1995-1-1/NA:2010-09 (Italy)
- NEN EN 1995-1-1/NB:2007-11 (Netherlands)
- ÖNORM B 1995-1-1:2015-06 (Austria)
- PN EN 1995-1-1/NA:2010-09 (Poland)
- SS EN 1995-1-1 (Sweden)
- STN EN 1995-1-1/NA:2008-12 (Slovakia)
- SIST EN 1995-1-1/A101:2006-03 (Slovenia)
- CSN EN 1995-1-1:2007-09 (Czech Republic)
- BS EN 1995-1-1/NA:2009-10 (the United Kingdom)
Extensive library of permanent loads
Allocation of a structure to service class, and specification of service class categories
Determination of design ratios, support forces, and deformations
Info icon indicating successful or failed design
Color reference scales in result tables
Direct data export to MS Excel
DXF interface for preparation production documents in CAD
Program languages: English, German, Czech, Italian, Spanish, French, Portuguese, Polish, Chinese, Dutch, and Russian
Verifiable printout report, including all required designs. Printout report available in many output languages; for example, English, German, French, Italian, Spanish, Russian, Czech, Polish, Portuguese, Chinese, and Dutch.

RX-TIMBER Glued-Laminated Beam | Input

There are various options available for beam modeling. Graphical representations facilitate the geometry input. Modifications are updated automatically. Deflection of cantilevers can be set in the serviceability limit state design, independently of the deflection in the span.

The relevant timber grade of the material can be selected from the material library. All material grades specified in EN 1995-1-1: 2004 (EC 5) or DIN 1052:2008-12 and the selected National Annex are available for glulam, hardwood, and softwood timber. Furthermore, it is possible to generate a strength class with user-defined material properties in order to extend the library. Permanent loads (for example, roof structure) can also be entered using the comprehensive and extensible material library.

Generators integrated in RX-TIMBER Purlin allow for convenient generation of various wind and snow load cases. Load cases are displayed graphically and superimposed in automatically generated load combinations according to EN 1990, DIN 1055-100, or DIN 1052. This way, the required input data are reduced to a minimum. However, you can enter load specifications manually as well.

RX-TIMBER Glued-Laminated Beam | Design

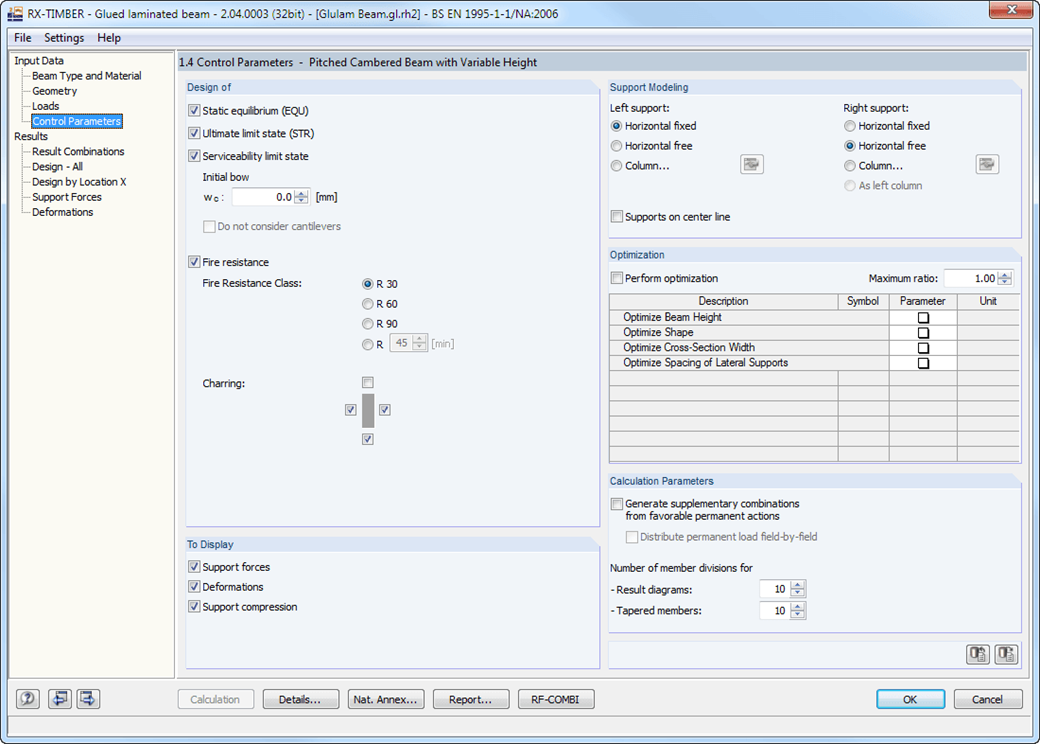

In RX-TIMBER Glued-Laminated Beam, the following calculation settings are available:

Design of ULS, SLS, and/or fire resistance
- Selection of designs to be performed
- Determination of displaying support forces and deformations
- Adjusting the recommended limit values for the deformation analyses
- Definition of parameters for the fire resistance design performed according to the simplified method (optionally for F 30‑B, F 60‑B, F 90‑B, and user‑defined)
- Determination of tilting moment for pinned support
Definition of support conditions for a beam
Beam optimization by means of:
- Beam depth modification
- Modification of beam scene
- cross-section width
- Spacing of lateral supports

RX-TIMBER Glued-Laminated Beam | Results

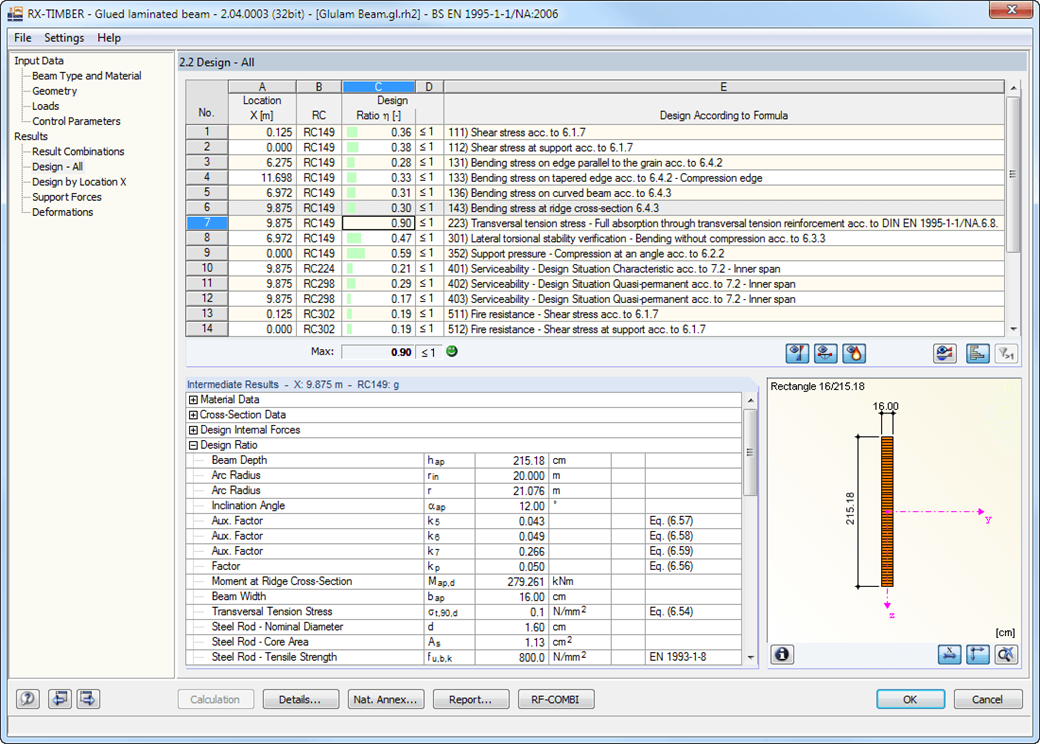

After the calculation, the results of performed designs, including all required intermediate values, are displayed in clearly arranged result tables sorted by various criteria.

Since the program displays the intermediate values in detail, the transparency of all designs is ensured. It is possible to display the distribution of internal forces for each x-location of the beam in a separate graphical window. Here, both the deformations and the individual internal forces can be displayed.

Designs with design details and selected result diagrams can be added in the printout report, providing clearly arranged documentation. The printout report can include graphics, descriptions, drawings, and more. Moreover, it is possible to select which calculation data will be covered in the printout.
