Airship Hangar in Essen-Mülheim, Germany

The structure of a new multi-purpose hall on the premises of WDL Luftschiffgesellschaft mbH in Mühlheim offers the airship Theo, among others, protection from the weather and a safe place for maintenance work. Furthermore, it serves as an event hall for up to 1,500 people. Dlubal customers Marx Krontal Partner and Ripkens Wiesenkämper were responsible for the structural design of this project.

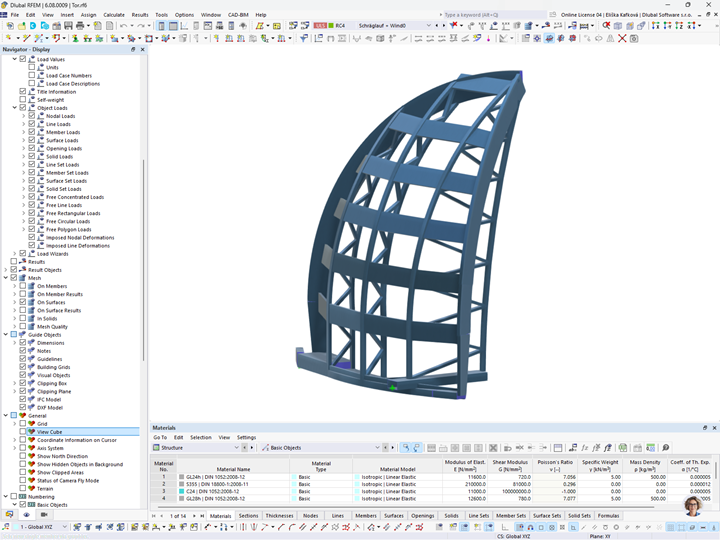

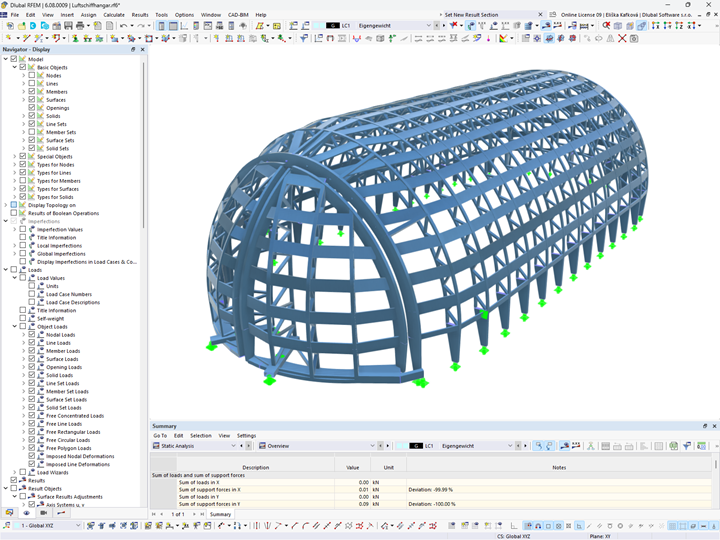

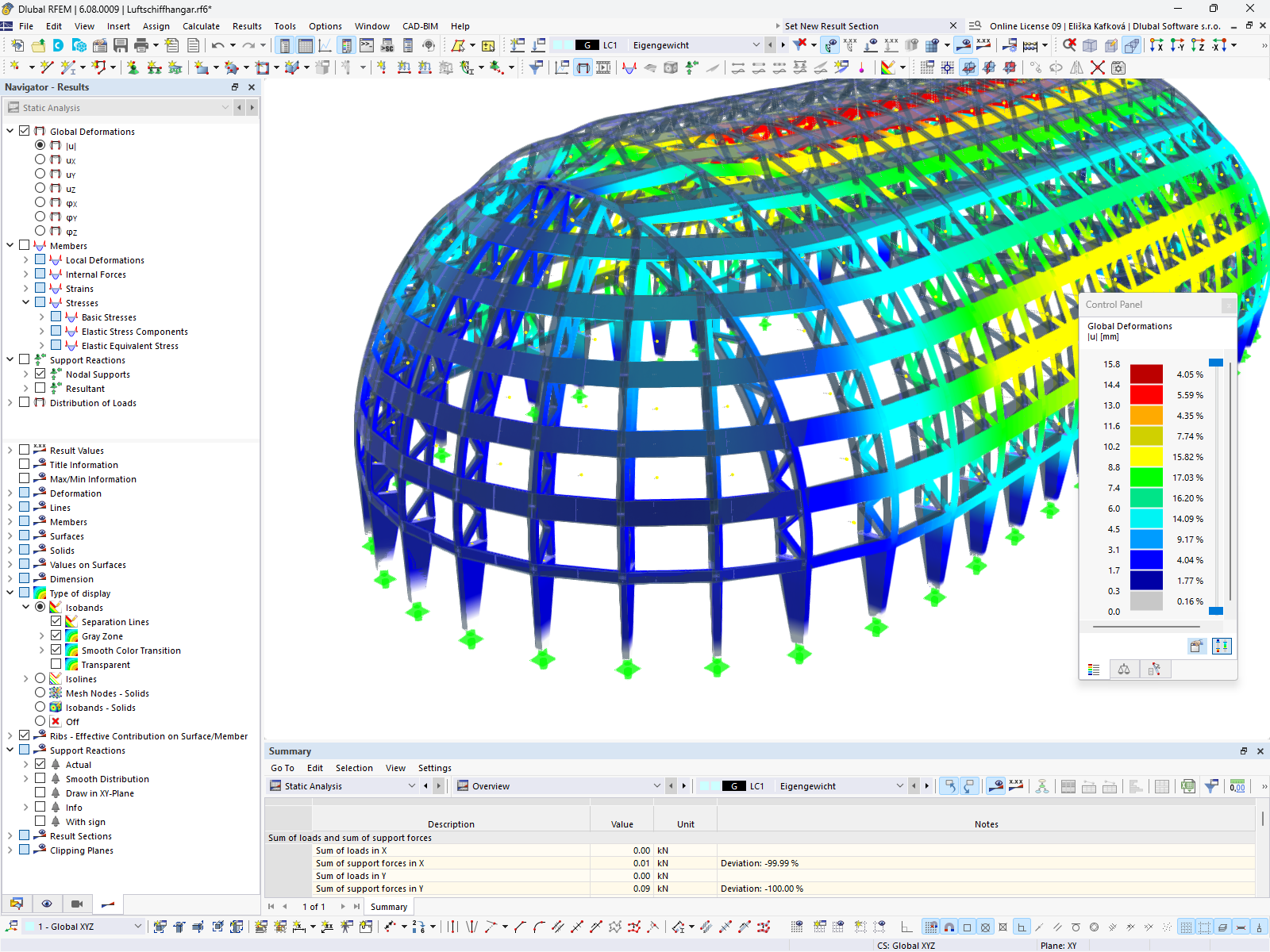

Model 005470 | Airship Hangar in Essen-Mülheim
258x
Airship Hangar in Essen-Mülheim

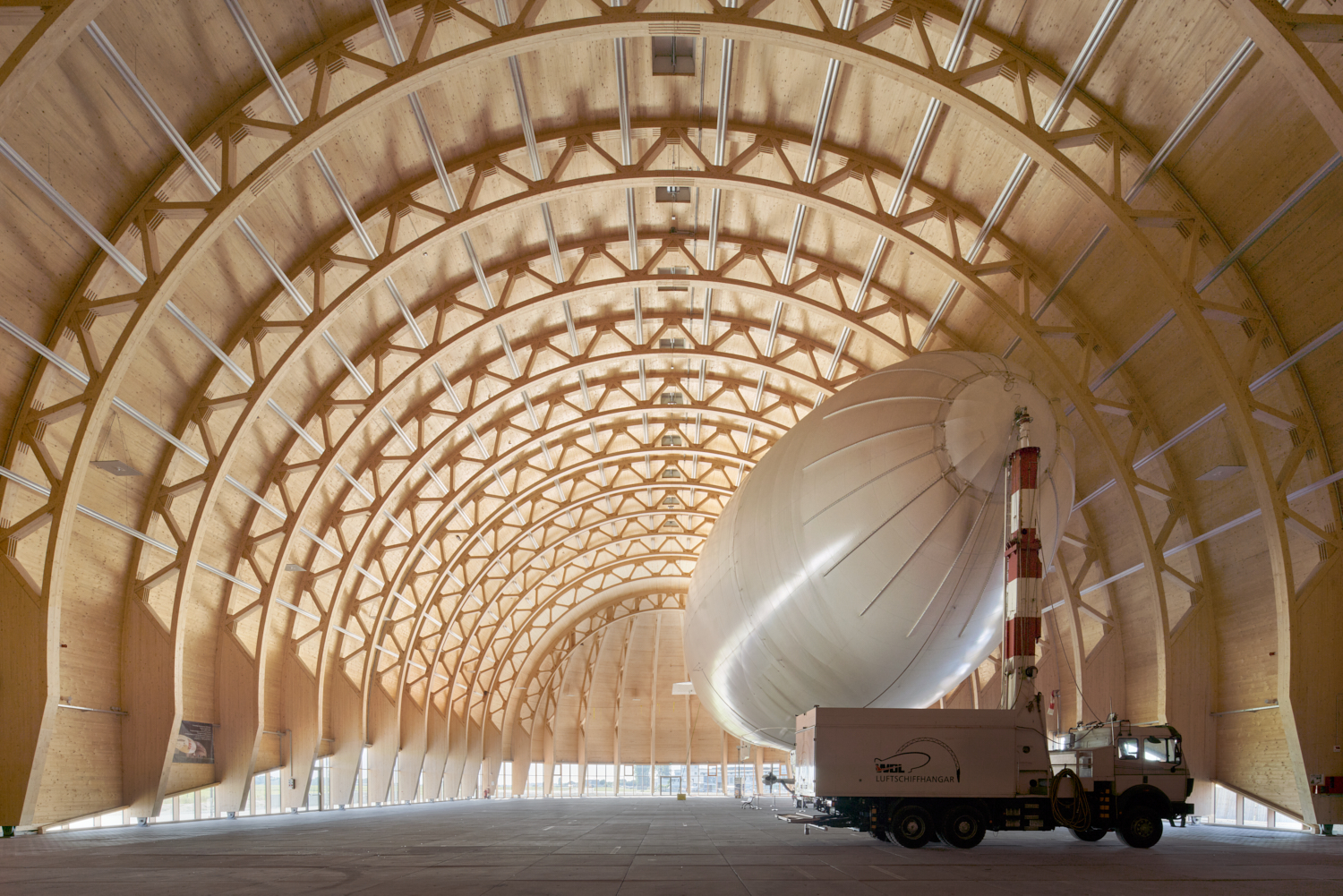

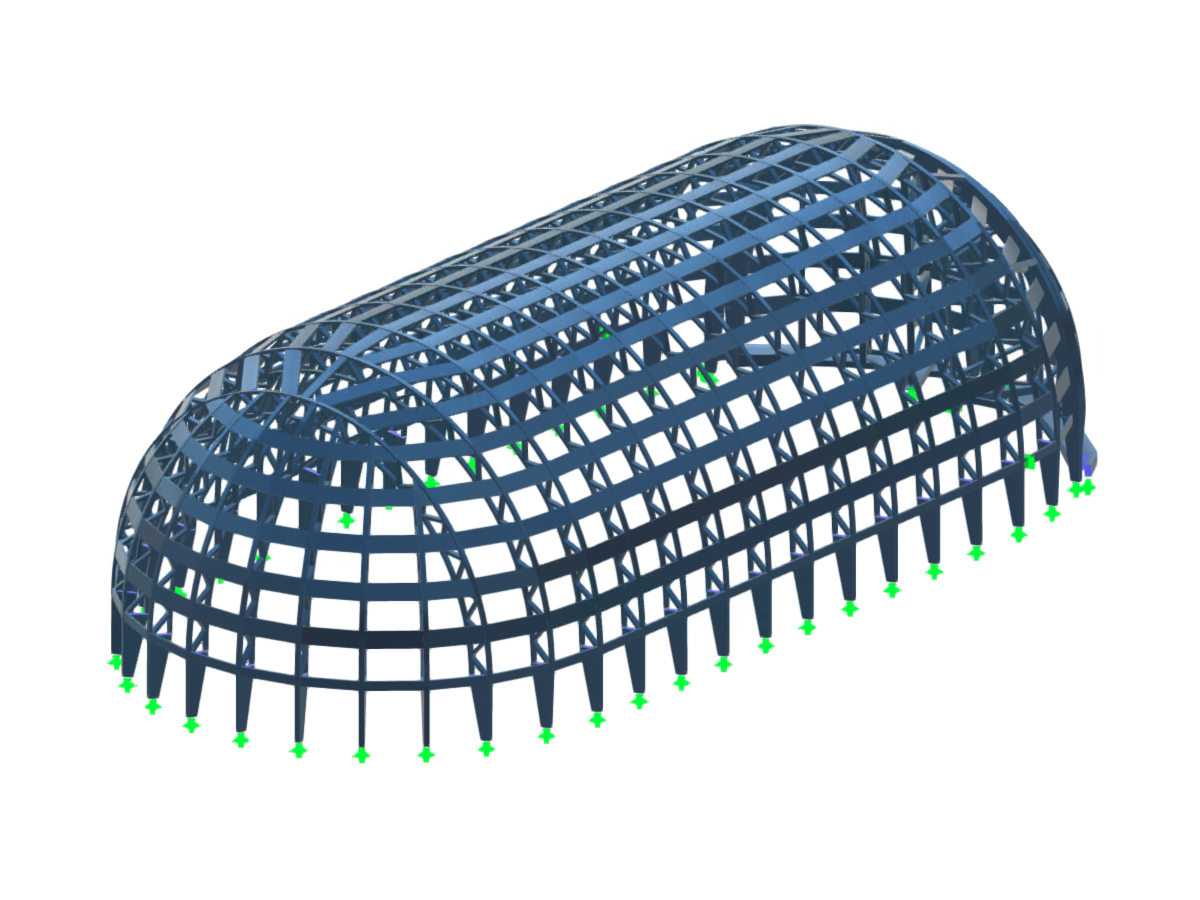

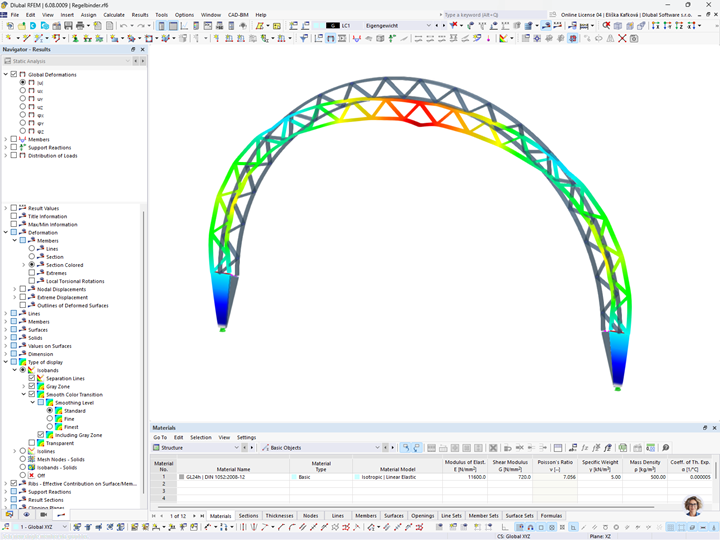

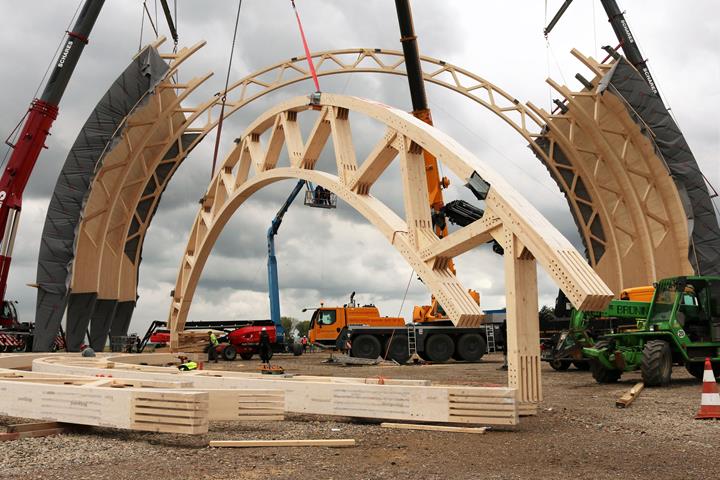

The supporting structure of the hangar is made completely of timber, a renewable resource. The timber truss consists of 15 double-hinged arches made of glued-laminated timber, with a span length of 42 m (137.8 ft). Furthermore, timber connections were used at a total of 592 nodal points. The supporting structure is made of 557 metric t (613.98 US t) of wood from German forests.

The foundations of the previous hall structure were broken up and returned to the building material cycle as recycled material for the substructure of the new hall. For the new foundations, 8,000 m³ (282,530 ft³) of earth were excavated.

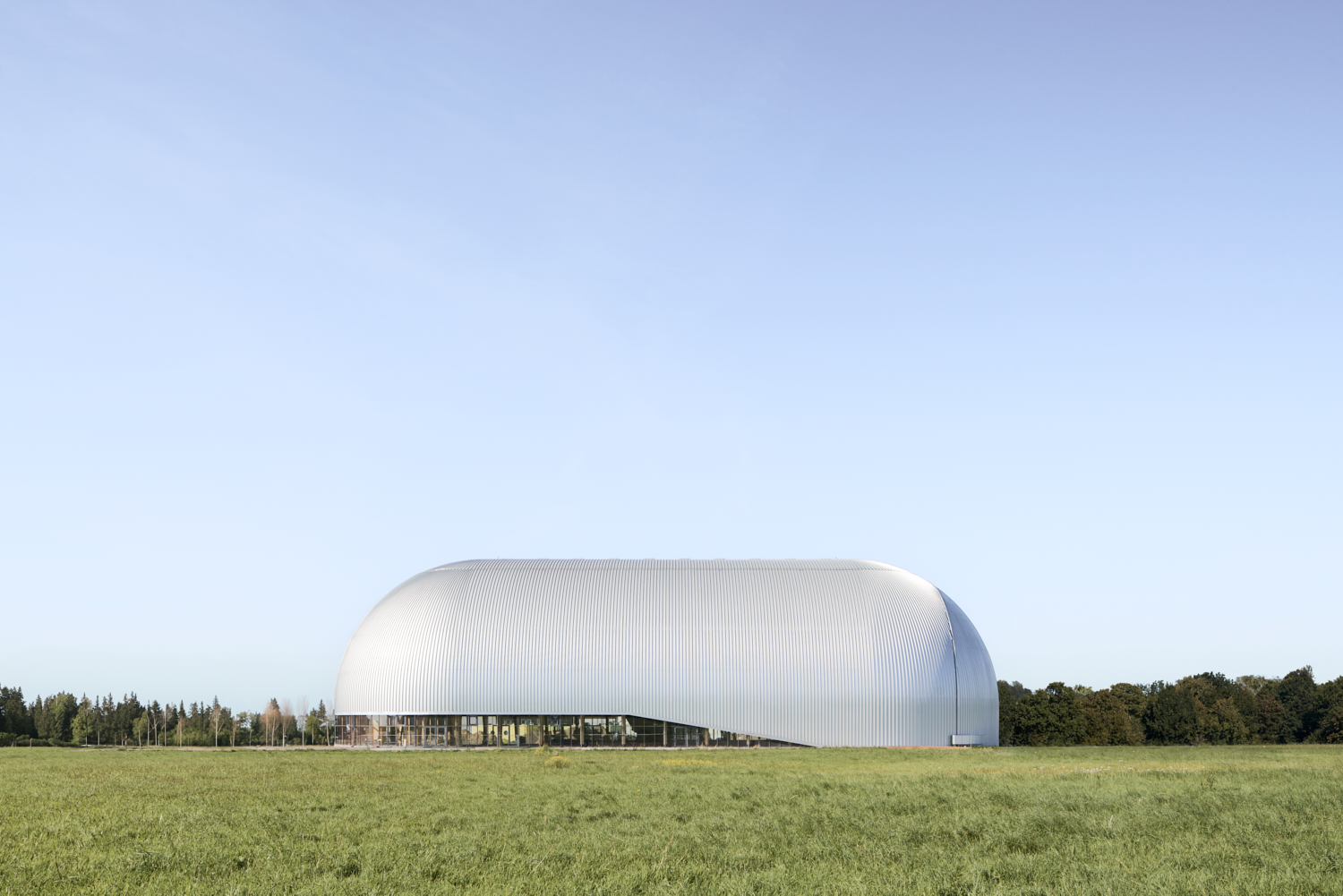

The recyclable aluminum facade protects the airship's interior from the weather. A glass joint on the west side extends over two floors, providing natural light. The dimensions of the new building are based on the floor area of the previous hall and measure 92 by 42 m (301.84 ft by 137.8 ft) with a height of 26 m (85.3 ft).

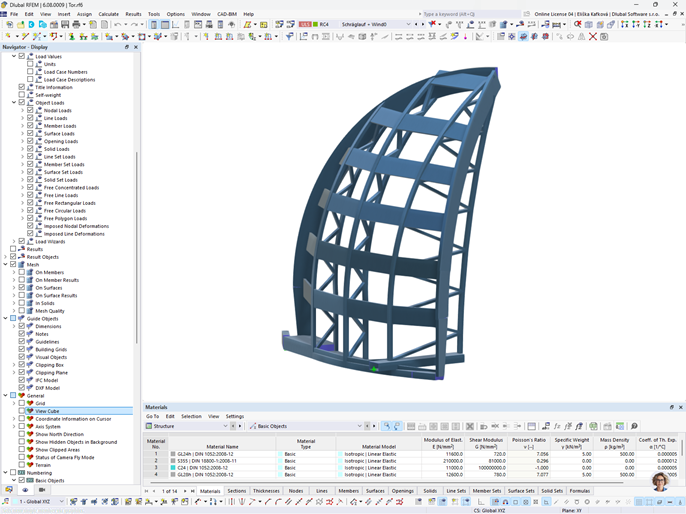

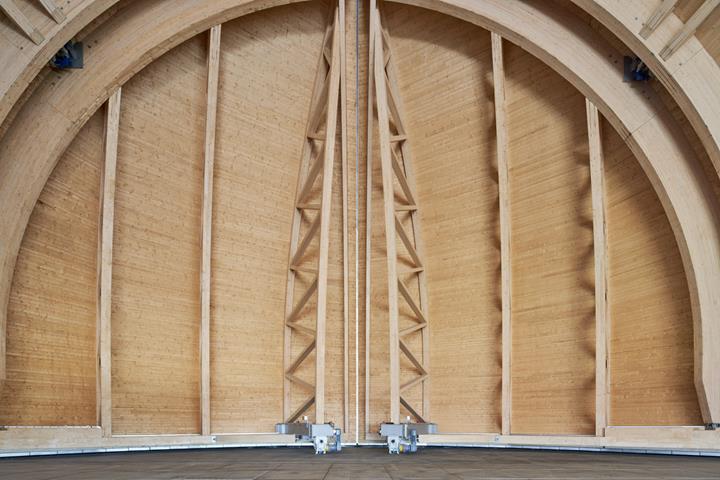

The structural engineers from Marx Krontal Partner and Ripkens Wiesenkämper used RFEM software to calculate and implement both the supporting structure of the hall and the movable gate structure. This multi-purpose hall is undoubtedly a truly exciting customer project and even won the German Engineering Award 2024.

Location Luftschiffhangar Mühlheim
Lilienthalstraße 8
45470 Mülheim an der Ruhr
Germany
Investor Westdeutsche Luftwerbung
Theodor Wüllenkemper GmbH & Co. KG
Architects Smyk Fischer Architekten GbR (Design planning)
www.s-f-architekten.de

Gronau plan GbR (Execution planning & construction)
www.gronau-bau.de
Structural Design Marx Krontal Partner
www.marxkrontal.com

Ripkens Wiesenkämper
Beratende Ingenieure Part GmbB
www.rw-ingenieure.de
Timber Structures W. u. J. Derix GmbH & Co.
www.derix.de
Fire Resistance Design IB Römling – Dipl.-Ing. Lars Römling
www.ibroemling.de
Mechanical Engineering Dr. Schippke + Partner mbH
dr-schippke.de

Project Specifications

Model Data

Number of Nodes 3168
Number of Lines 3302
Number of Members 3295
Number of Load Cases 35
Number of Result Combinations 168
Total Weight 304.055 t
Dimensions (Metric) 92.349 x 42.060 x 26.030 m
Dimensions (Imperial) 302.98 x 137.99 x 85.4 feet
Program Version 5.26.02
