Add-on Module for RFEM 5
RF-TIMBER AWC

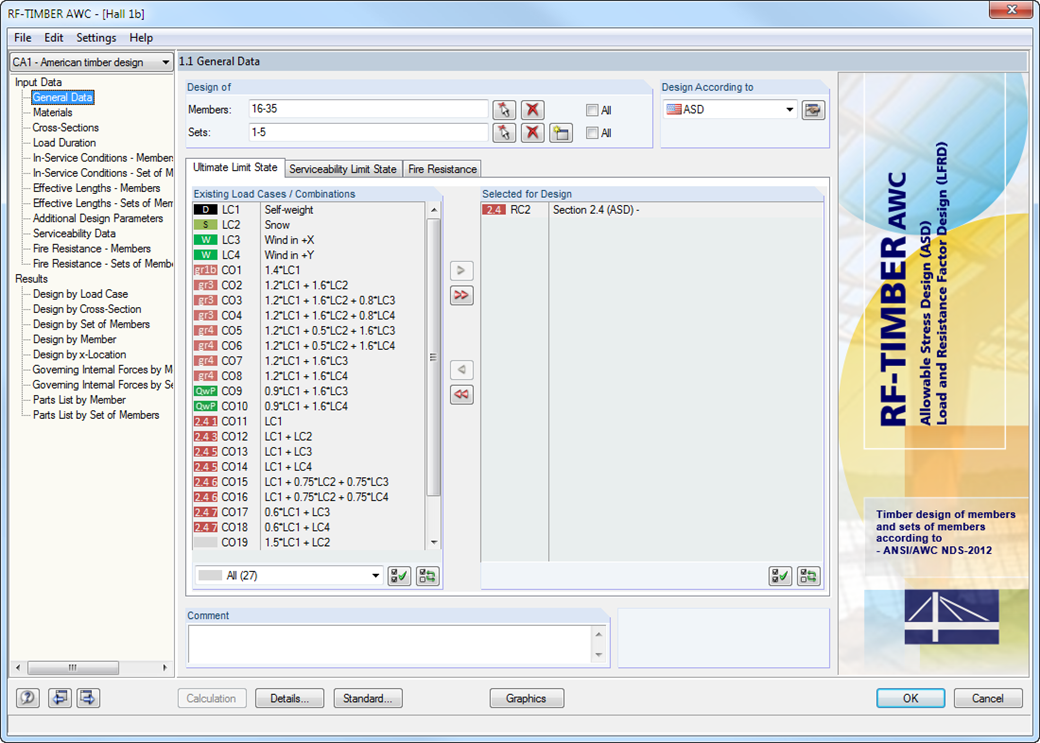

After opening the add‑on module, it is necessary to select the members/sets of members, load cases, load or result combinations for the ultimate limit state, serviceability limit state, and fire resistance design (only ASD). Also, you can select the design method (ASD or LRFD). The materials from RFEM/RSTAB are preset and can be adjusted in RF-/TIMBER AWC. Material properties listed in the respective standard are included in the material library.

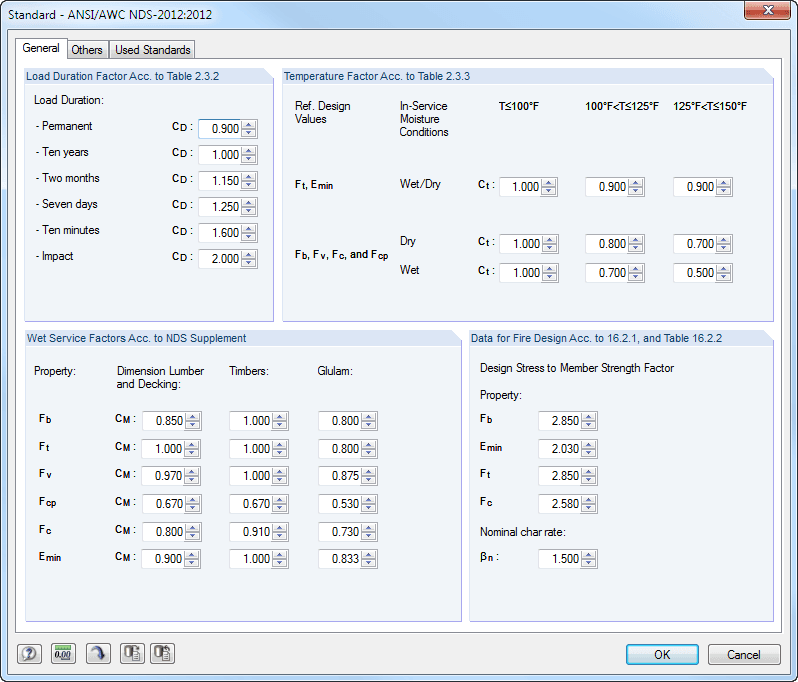

When checking the cross-sections, you can specify whether to apply the design values of the relevant standard, or user-defined values. Then, you can consider the load duration classes (LDC), temperature effects, and moisture service conditions.

The deformation analysis requires the reference lengths of the relevant members and sets of members. Furthermore, you can define a specific direction of deflection, precamber and the beam type.

For fire resistance design, you can define the charring sides of a member or set of members.

After the calculation, the module displays results in clearly arranged result tables. All intermediate values (for example, governing internal forces, adjustment factors, and so on) can be included in order to make the design more transparent. The results are sorted by load case, cross-section, set of members, and members. If the analysis fails, the affected cross-sections can be modified in an optimization process.

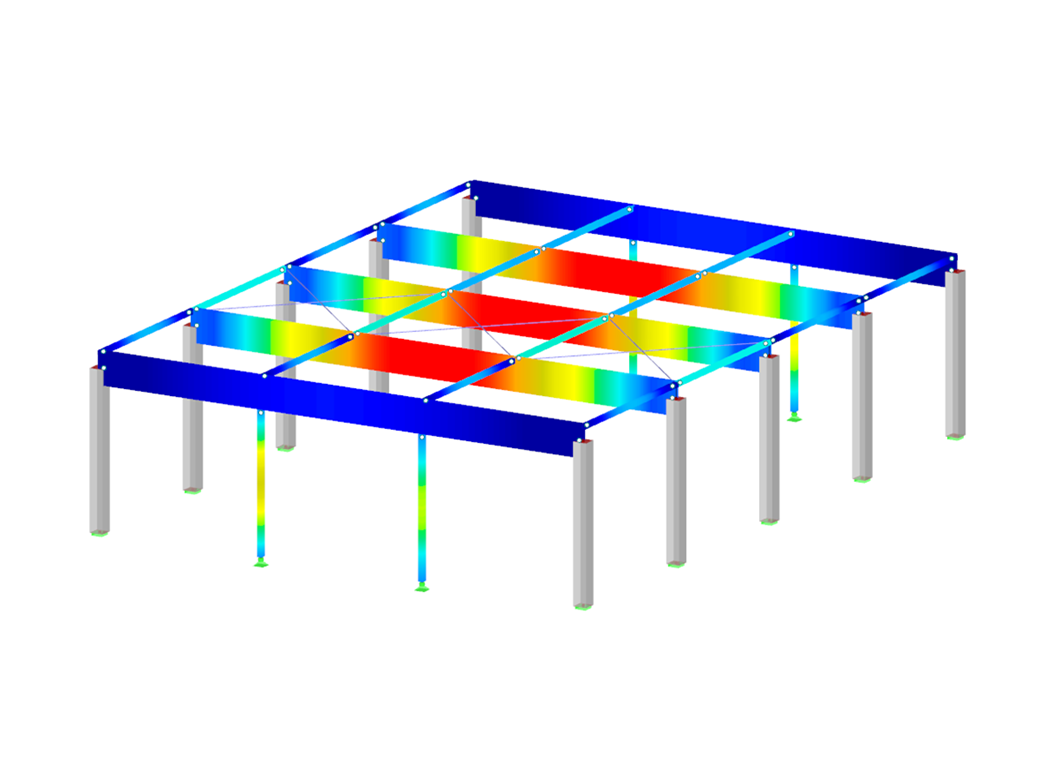

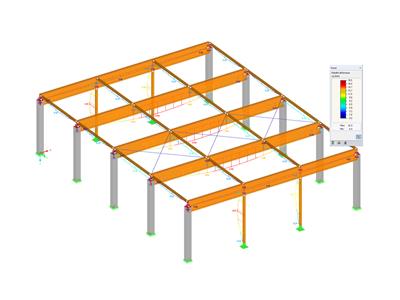

The design ratio is represented with different colors in the RFEM/RSTAB model. This way, you can quickly recognize critical or oversized areas of the cross-section. Furthermore, result diagrams displayed on the member or set of members ensure targeted evaluation.

In addition to the input and result data, including design details displayed in tables, you can add all graphics into the printout report. This way, comprehensible and clearly arranged documentation is guaranteed. You can select the report contents and extent specifically for the individual designs.
