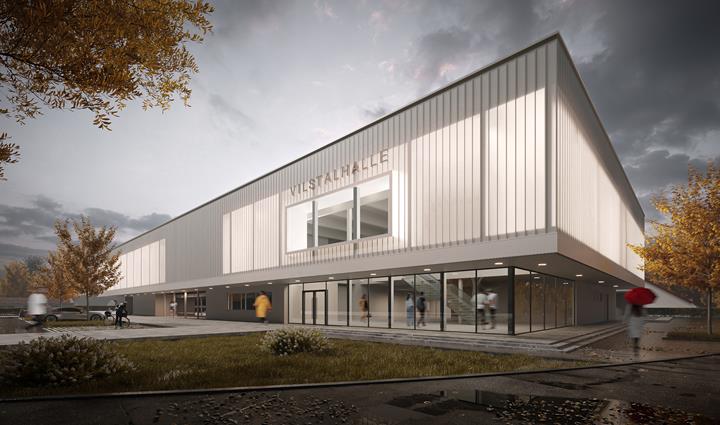

Vilstalhalle in Vilsbiburg, Germany

The Vilstalhalle in Vilsbiburg, built in 1978, is undergoing extensive renovation. The measures include renewing the roof cladding, adding stories to the building, and modernizing the ventilation and electrical systems. The thermal envelope of the building will also be upgraded to improve energy efficiency.

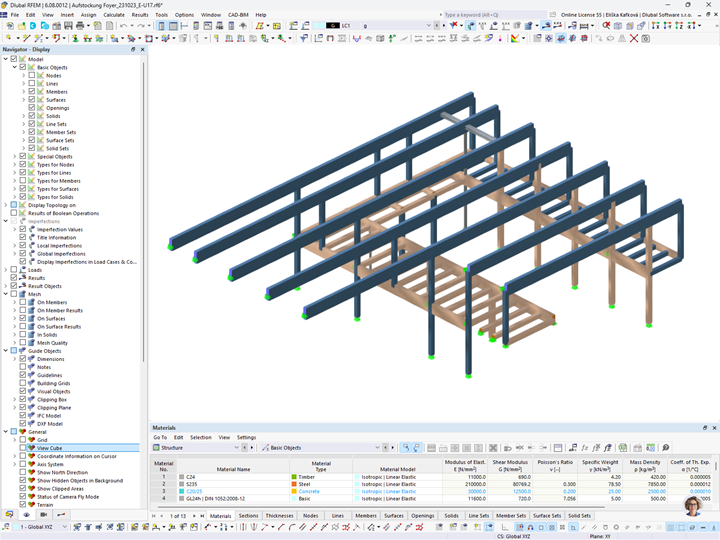

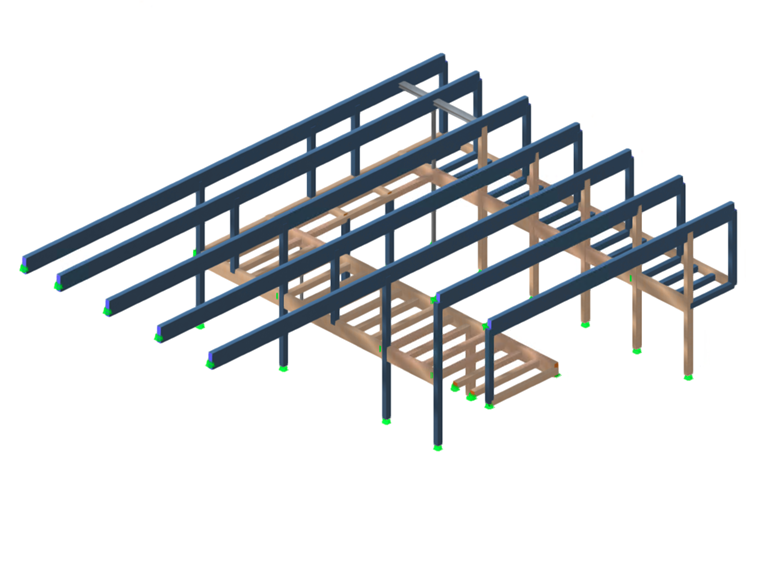

Extension of Vilstalhalle in Vilsbiburg | Timber structure | Steel structure | Steel beam | Model 005497
93x
Renovation and Extension of Sports Building

Das dreigeschossige Gebäude ist etwa 45 m lang und 35 m breit. Im Kellergeschoss befinden sich eine Kegelbahn, Umkleiden, ein Turnsaal und die Haustechnik. Das Erdgeschoss umfasst die Spielfläche der Turnhalle, Umkleiden und ein Restaurant, während die Tribünen im Obergeschoss untergebracht sind.

Das bestehende Satteldach bilden parallel angeordnete Leimholzbinder mit einer Traufhöhe von 100 cm und einer Firsthöhe von 200 cm. In den Bereichen der zwei Trennvorhänge sind sie als Doppelbinder mit einem um 22 cm niedrigeren Querschnitt angeordnet. Entgegen der Angaben in den statischen Berechnungen von 1978 haben die Regelbinder eine Breite von 18 cm statt 20 cm. Die Doppelbinder wurden in der geplanten Breite von 16 cm eingebaut. In jedem zweiten Feld zwischen den Bindern befinden sich Lichtkuppelbänder.

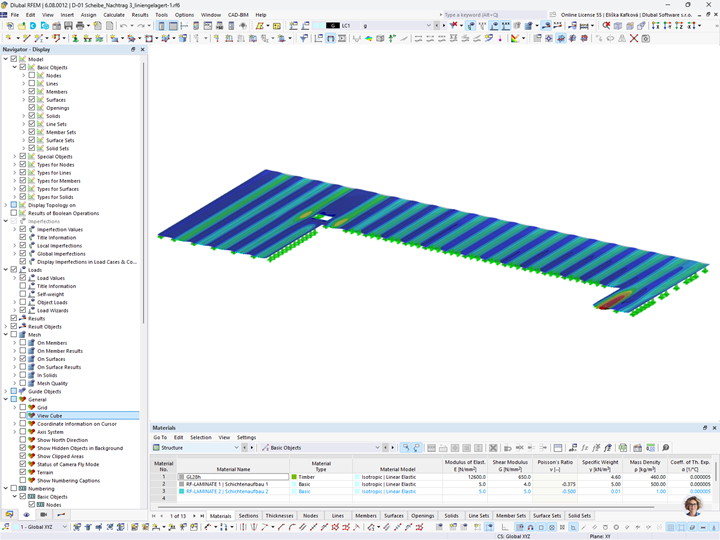

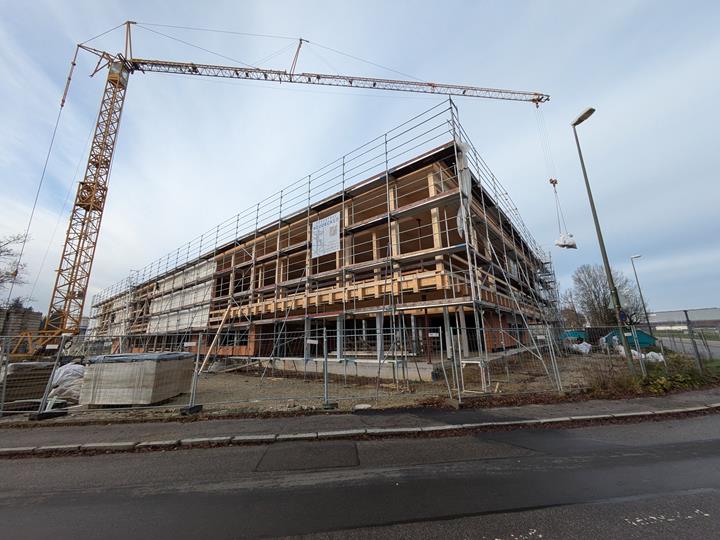

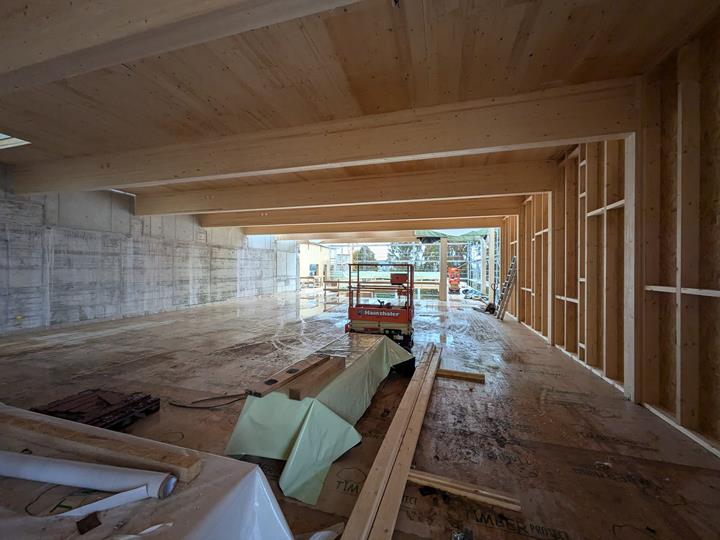

Im Rahmen der Sanierung wird eine Aufstockung über dem Erdgeschoss realisiert, die im 1. Obergeschoss zusätzliche Turn- und Krafträume sowie Nasszellen schafft. Dafür werden die bestehenden Wohnungen von Wirts- und Hausmeisterbereich abgerissen. Die Tragstruktur im Bereich des Restaurants und des zukünftigen Foyers wird ebenfalls zurück gebaut.

Die Tragwerksplanung für die Aufstockung hat der Dlubal-Kunde BBI INGENIEURE GMBH erstellt. Dafür wurde das Statikprogramm RFEM verwendet.

Location Vilsbiburg Vilstalhalle
Brückenstrasse 15 1/2
84137 Vilsbiburg
Germany
Investor
City of Vilsbiburg
Architects
Arc Architects Partnership mbB
Structural Design
BBI INGENIEURE GMBH

Project Specifications

Model Data

Number of Nodes 141
Number of Lines 194
Number of Members 194
Number of Load Cases 5
Number of Load Combinations 31
Number of Result Combinations 3
Total Weight 23,911 t
Dimensions (Metric) 17.163 x 24.112 x 7.012 m
Dimensions (Imperial) 56.31 x 79.11 x 23.01 feet
Program Version 5.34.01
