The model of an arched steel bridge combines traditional arch principles with modern steel construction methods. It is presented with precise structural details and is suitable as a practical template for bridge construction. Due to the innovative approaches in steel structures, it offers valuable insights for challenging projects.
5 star | ||
4 star | ||
3 star | ||
2 star | ||
1 star |

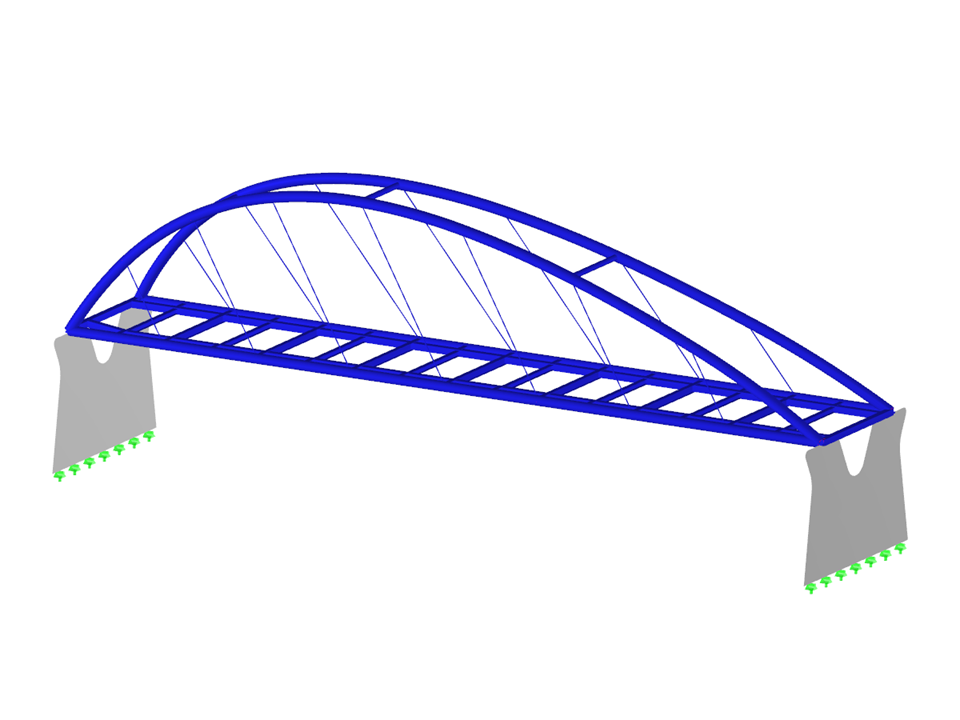

Arched Steel Bridge
Number of Nodes | 147 |
Number of Lines | 187 |
Number of Members | 153 |
Number of Surfaces | 2 |
Number of Load Cases | 2 |
Number of Load Combinations | 1 |
Total Weight | 911,112 t |
Dimensions (Metric) | 50.000 x 12.000 x 17.838 m |
Dimensions (Imperial) | 164.04 x 39.37 x 58.52 feet |
Program Version | 4.08.05 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
