RF-TOWER Structure Add-on Module for RFEM 5

The RF-TOWER Structure add-on module provides you with an innovative workflow simplification for generating geometrically complex 3D tower structures. You can easily create lattice and cell towers by entering parameters.

You can also modify the existing RFEM models using RF‑TOWER Structure.

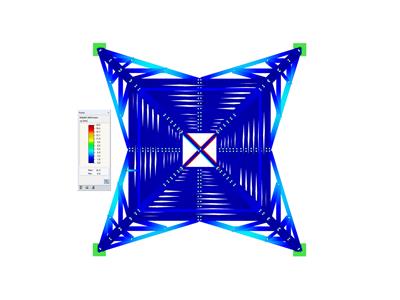

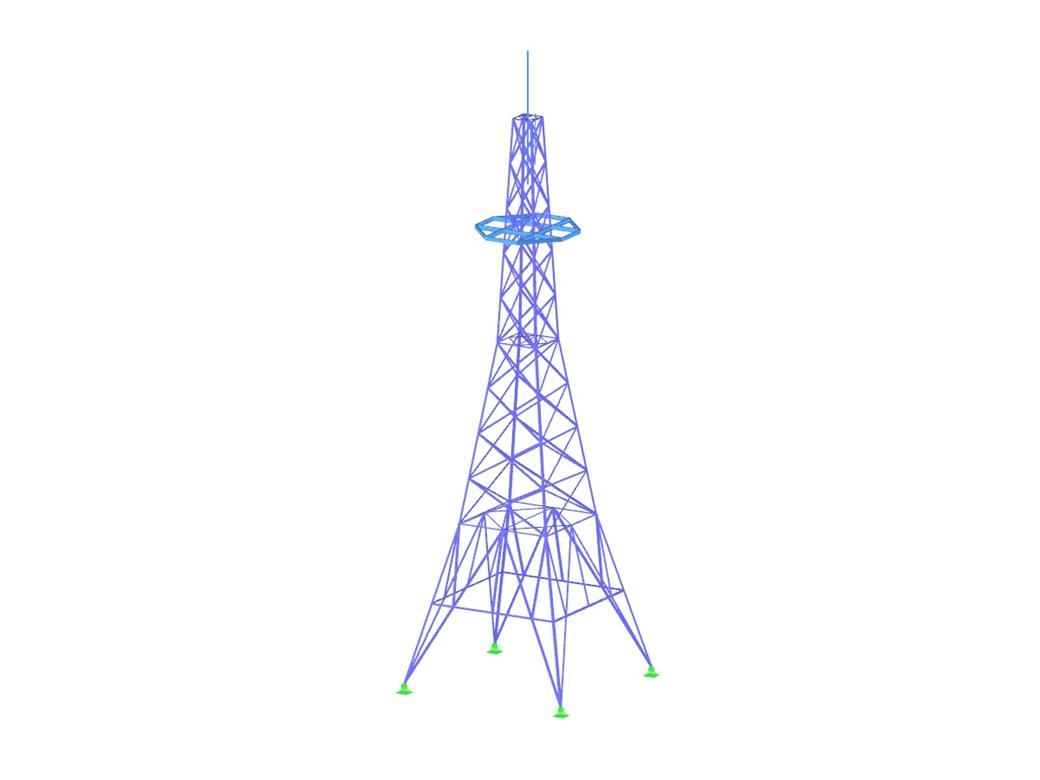

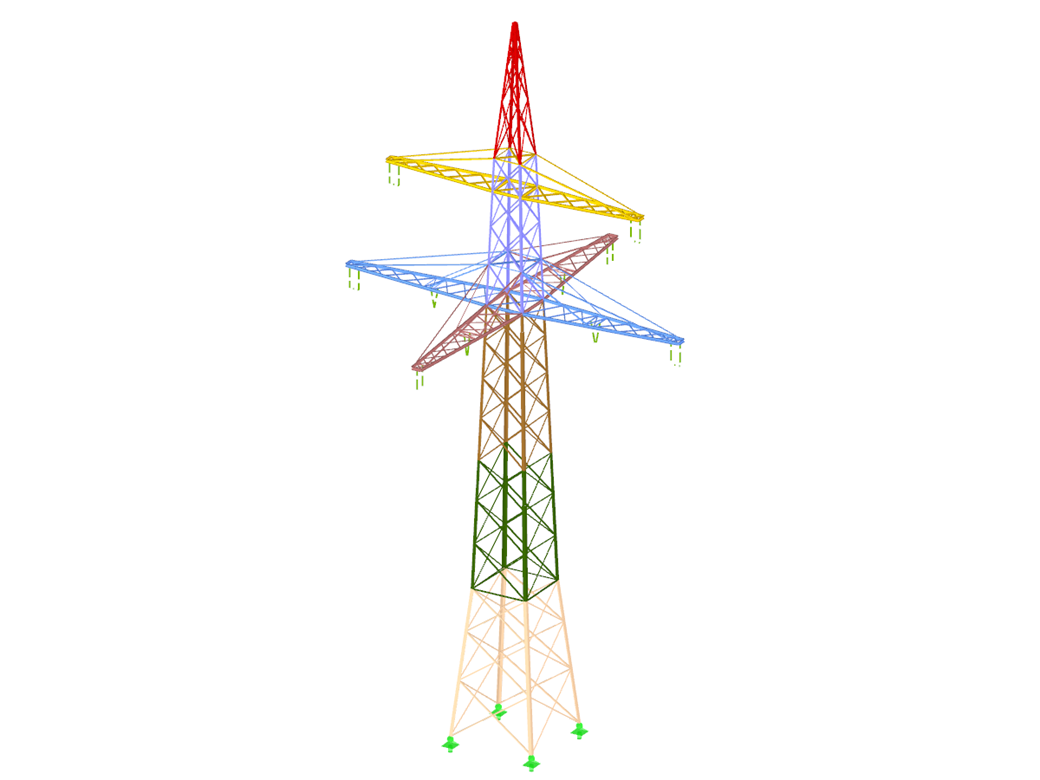

Generation of Lattice Tower Structures

Total items: 4

Features

Generation of triangular or rectangular tower types
Access to the extensive material and cross-section library of RFEM/RSTAB
Simple definition of geometry using tower segments
Databases for vertical, horizontal, and inner bracing types
Easy export of generated model data to RFEM/RSTAB

Input

First, it is necessary to select a tower type and the relevant materials and cross-sections. The tower geometry is defined by individual tower segments. Slopes can be defined via widths or relatively by geometry modification.

After entering the tower legs, you can specify various stiffening of the lattice tower. It is possible to enter detailed specifications of horizontal girts, inner bracing, and vertical bracing of a tower with unequal sides. An extensive library including parametrized bracing types facilitates the input.

In addition, there is an interactive graphic in all input windows.

Generation

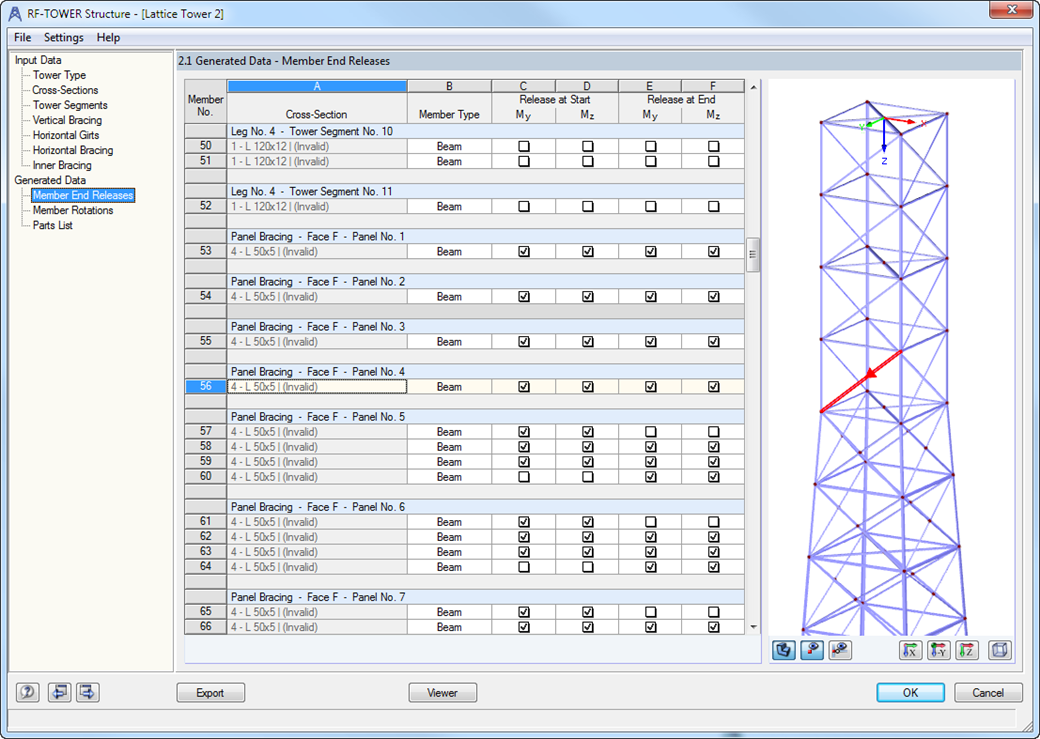

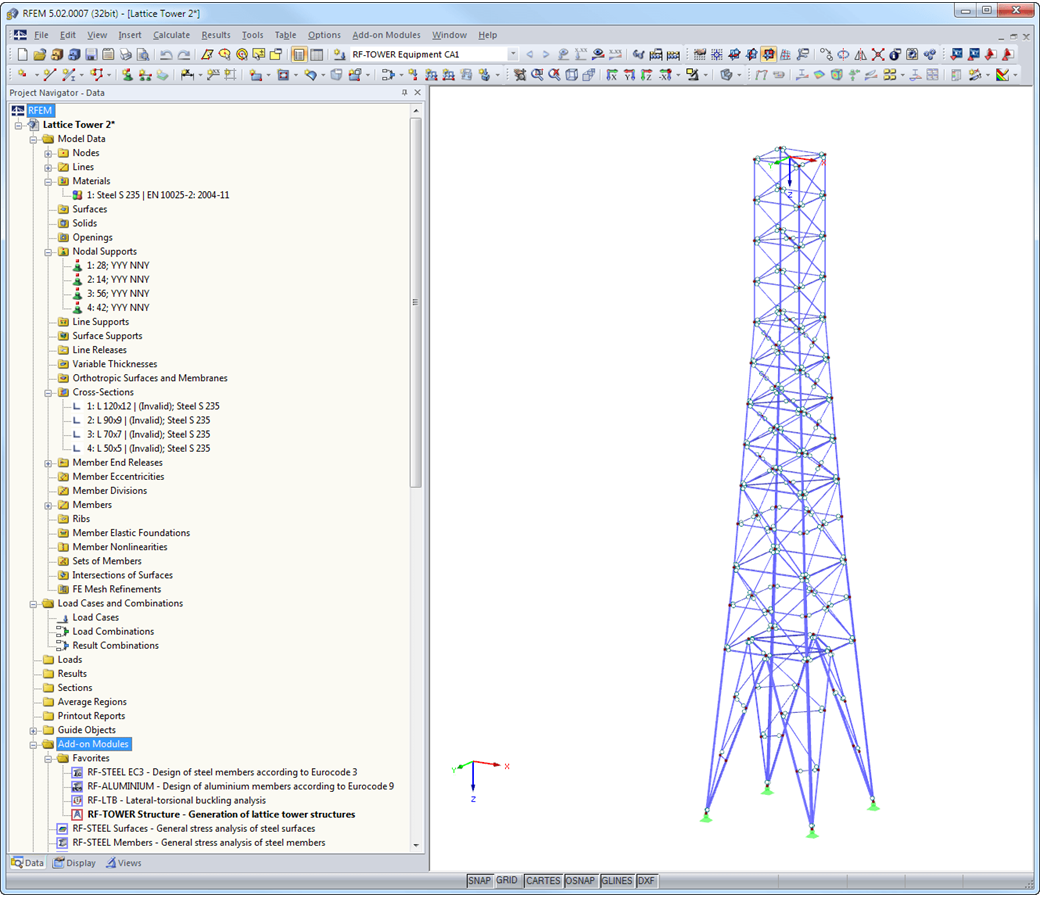

After generating the lattice tower model, the generated data are displayed in clearly arranged tables. The output includes all specifications for member hinges and effective lengths.

In order to check the data graphically, the Viewer function provides a full-screen display, which is also available in the input windows.

Data Export

Finally, it is possible to export the generated model to RFEM/RSTAB with a single mouse click.

The complete module data are part of the RFEM/RSTAB printout report. The report contents and the extent of the results can be selected specifically for the individual designs.
