TOWER Equipment Add-on Module for RSTAB

Towers are used as supporting structures for transmission antennas and various equipment, such as platforms, ladders, and cable ducts, that need to be considered in the design.

In the TOWER Equipment add-on module, you can easily generate transmitter systems with the relevant equipment.

Equipment of Lattice Communication Towers

Total items: 3

RF-/TOWER Equipment Add-on Module for RFEM/RSTAB | Lattice Communication Tower Equipment

RF-/TOWER Equipment | Features

Generation of inside and outside platforms using the library, including parameterized models
Tubular extension and antenna bracket libraries as 2D and 3D structures
Antenna groups sorted by mobile network operator
Antenna library including parabolic, lense, shell, compact, and cuboidal antennas
Parameterized input of inner and cable ducts as well as ladders with interactive graphics

RF-/TOWER Equipment | Input

You can define platforms, tubular extensions, antenna brackets, antennas, inner ducts, cable ducts, and ladders in separate input windows. Extensive libraries including parameterized models facilitate the entry.

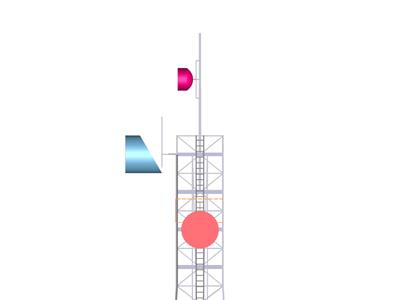

There is an interactive graphic available in all input windows. This way, you can immediately see the position of tower equipment.

RF-/TOWER Equipment | Generation and Export

In order to check the overall model graphically, you can use the viewer function. Statically effective equipment can be generated with a single mouse click and exported to RFEM/RSTAB.

All module data are included in the global RFEM/RSTAB printout report.
