The Volano building is a pivotal structure in the redevelopment of "Santa Maria alle Scotte" hospital. Initially designed to house essential functions, it enables a phased renovation by freeing up space and ensuring uninterrupted hospital operations. Ultimately, it will evolve to support advanced medical functions within a flexible and sustainable environment.
Model Used in
Overall
This page has 0 user ratings.
| 5 star | ||
| 4 star | ||
| 3 star | ||
| 2 star | ||
| 1 star |

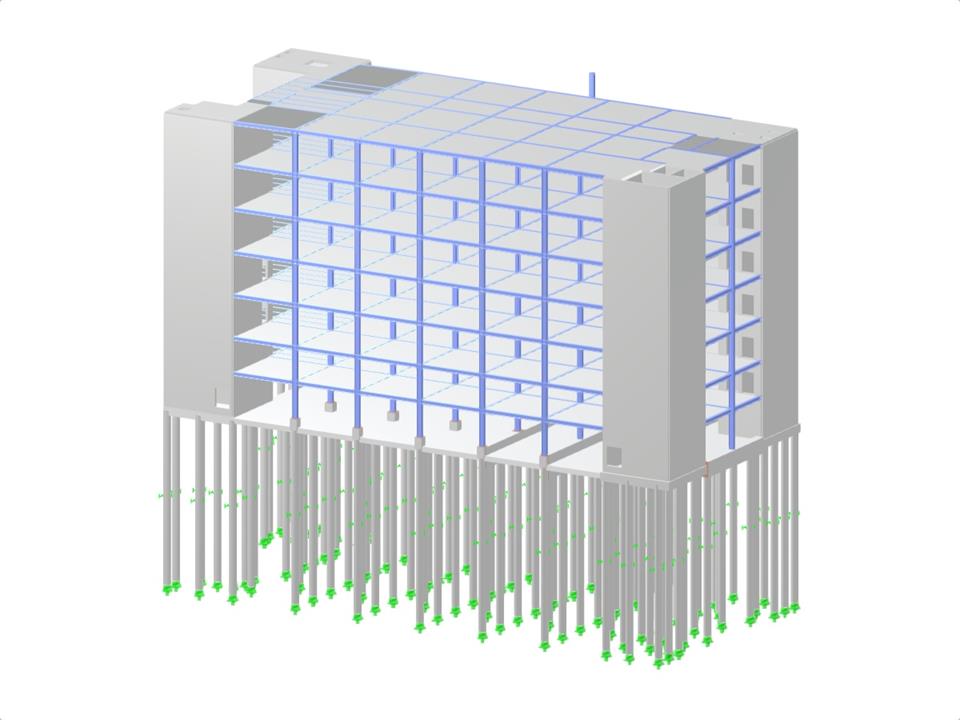

Volano Building at Siena Hospital
No Download Possible
Customer Project / View Only
| Number of Nodes | 1675 |
| Number of Lines | 2569 |
| Number of Members | 1042 |
| Number of Surfaces | 668 |
| Number of Solids | 0 |
| Number of Load Cases | 18 |
| Number of Load Combinations | 74 |
| Number of Result Combinations | 7 |
| Total Weight | 18652.260 tons |
| Dimensions (Metric) | 66,373 x 54,290 x 38,792 m |
| Dimensions (Imperial) | 217.76 x 178.12 x 127.27 feet |
