Download the model of a multi-story reinforced concrete building here, and open it with the FEA software RFEM.
This model is used in the free webinar "Seismic Analysis According to Eurocode 8 in RFEM 6 and RSTAB 9" on November 2, 2021 (in English; on November 30, 2021 in German).
- Seismic Design According to Eurocode 8 in RFEM 6 and RSTAB 9
- Using the Building Model Add-on in RFEM 6 to Display Story Actions, Interstory Drifts, and Forces in Shear Walls
- Modal Analysis in RFEM 6 Using a Practical Example
- Determination of Sensitivity Coefficient to Investigate the Need for Second-Order Analysis in Dynamic Analyses
- Merry Christmas 2021
- Multilingual program operation in RFEM 6/RSTAB 9
- Structural Analysis and Design Software for Concrete Structures | RFEM 6 & RSTAB 9 by Dlubal Software

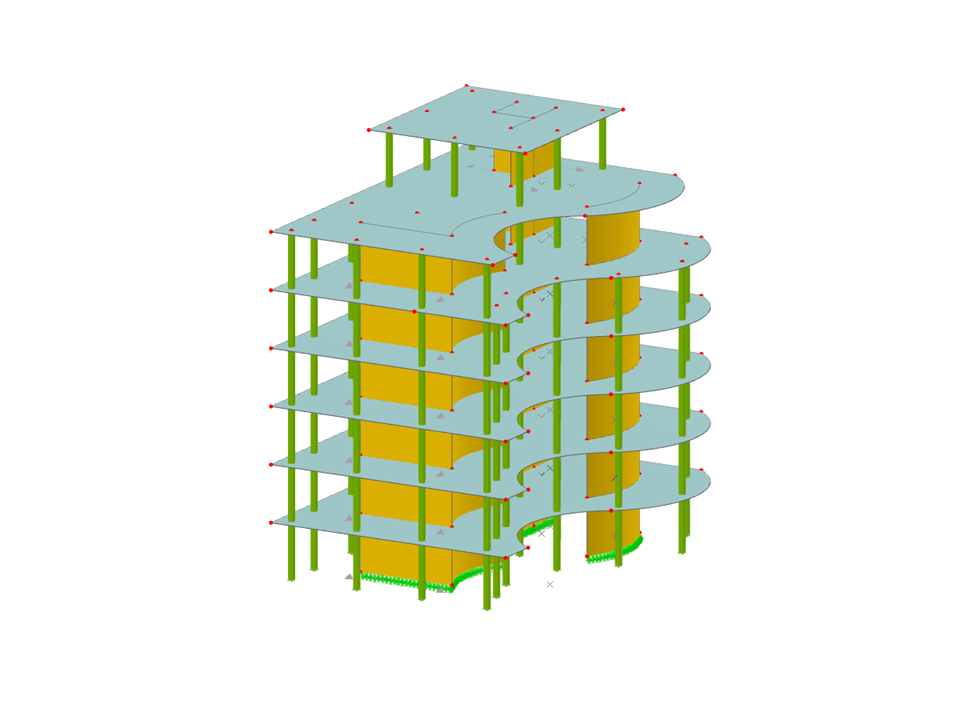

Multi-Story Reinforced Concrete Building
Number of Nodes | 258 |
Number of Lines | 281 |
Number of Members | 121 |
Number of Surfaces | 53 |
Number of Solids | 0 |
Number of Load Cases | 7 |
Number of Load Combinations | 1 |
Number of Result Combinations | 2 |
Total Weight | 2733.234 tons |
Dimensions (Metric) | 21.000 x 28.000 x 26.000 m |
Dimensions (Imperial) | 68.9 x 91.86 x 85.3 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
