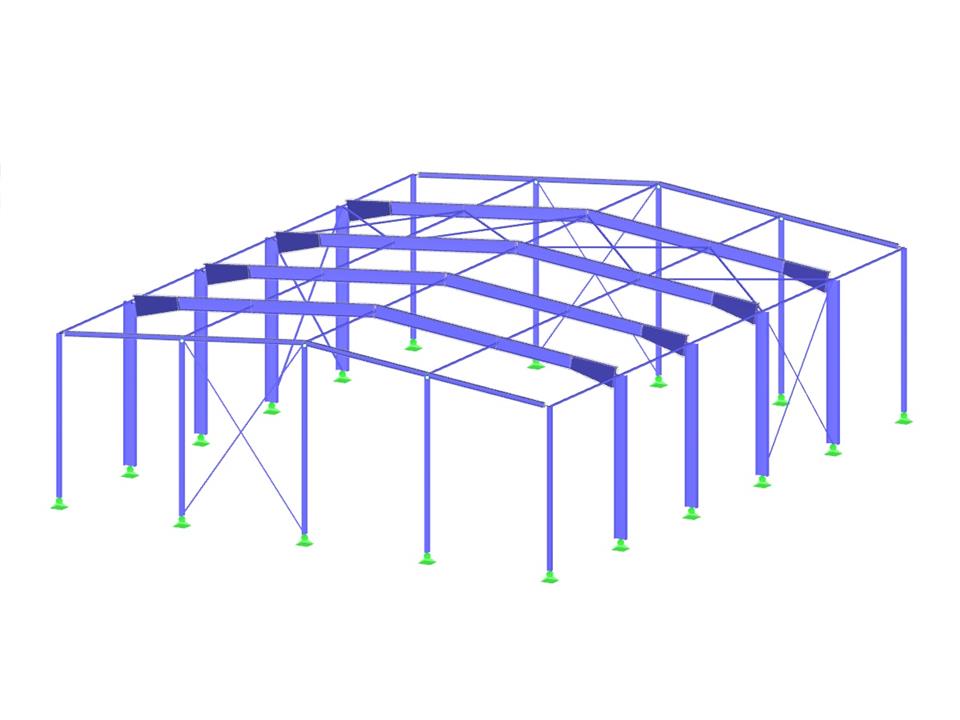

RFEM 3D model of a hall with cold-formed steel cross-sections.
Model Used in
Steel Structure with Cold-Formed Steel Sections
Number of Nodes | 56 |
Number of Lines | 91 |
Number of Members | 91 |
Number of Load Cases | 10 |
Number of Load Combinations | 22 |
Number of Result Combinations | 2 |
Total Weight | 15.101 tons |
Dimensions (Metric) | 20.500 x 25.500 x 7.250 m |
Dimensions (Imperial) | 67.26 x 83.66 x 23.79 feet |
Program Version | 5.04.00 |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
