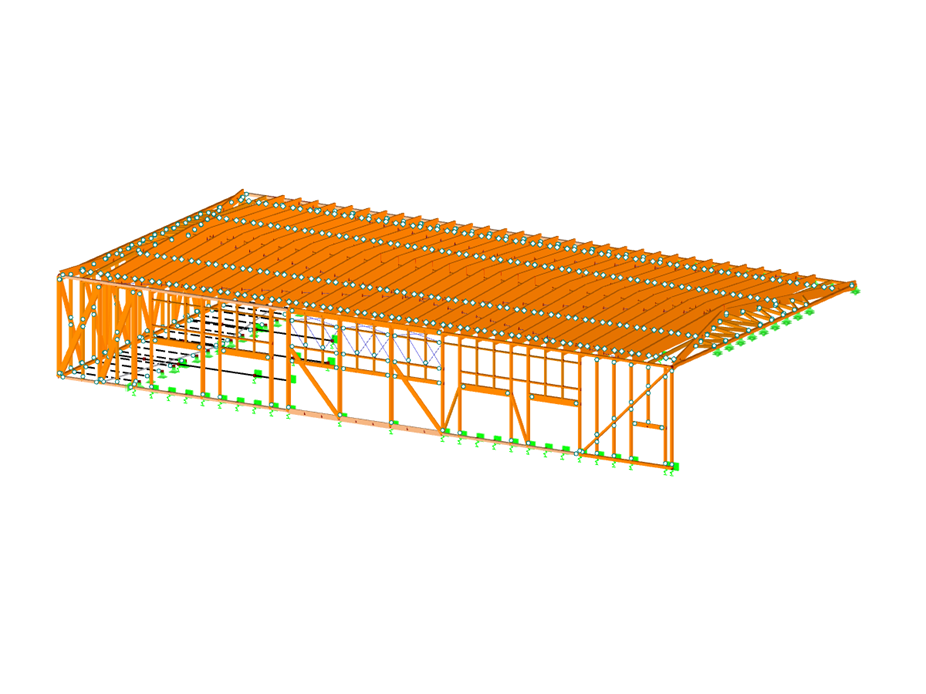

The model shows a sports hall with a supporting structure based on a cantilevered timber structure that uses glued-laminated timber (glulam) as the main material. The structure combines filigree timber elements with a pavilion-like character, optimizing both its aesthetic and functional qualities. The visualization highlights precise connections and clear spatial structures that are typical for this innovative structure. MARX KRONTAL PARTNER is the responsible structural design company, which adds additional expertise and reliability to the project.
Model Used in
Overall
This page has 0 user ratings.
| 5 star | ||
| 4 star | ||
| 3 star | ||
| 2 star | ||
| 1 star |
Cantilever Timber Hall
No Download Possible
Customer Project / View Only
| Number of Nodes | 711 |
| Number of Members | 1331 |
| Number of Load Cases | 16 |
| Number of Result Combinations | 21 |
| Total Weight | 71.813 t |
| Dimensions (Metric) | 44.940 x 23.700 x 7.250 m |
| Dimensions (Imperial) | 147.44 x 77.76 x 23.79 feet |
| Program Version | 8.29.01 |
