Member Type "Cable on Pulleys"

The Cable on Pulleys member type allows you to simulate a cable system deflected by pulleys.

This member type only absorbs tensile forces and can only be displaced in the longitudinal direction. It is suitable for flexible tension elements whose longitudinal forces are transferred through the model via deflection points (for example, a pulley).

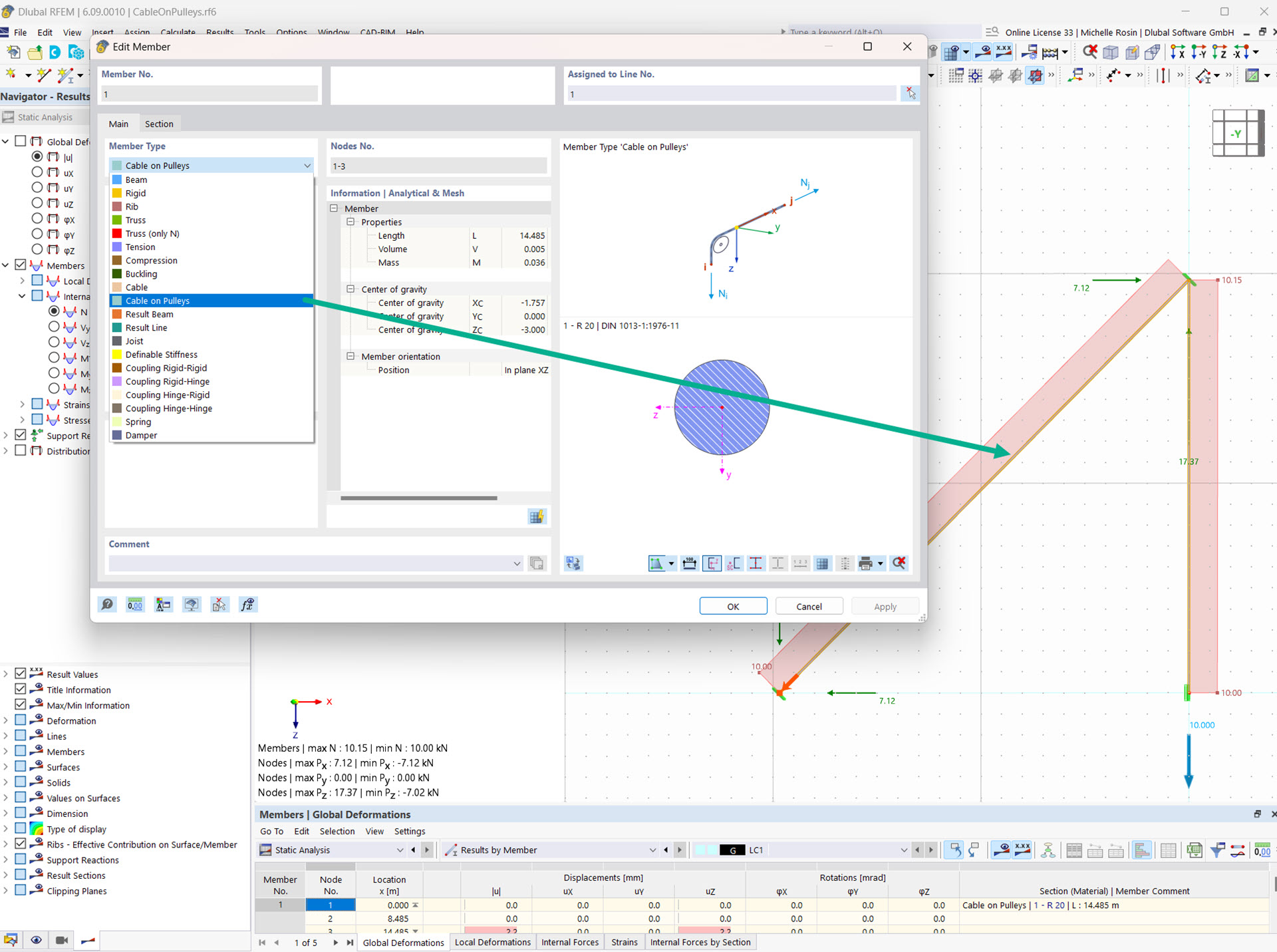

The image shows the “Cable on Pulleys” member type, which absorbs only tensile forces and is simulated as a pulley system.
Member Type Cable on Pulleys | Pulley Simulation
