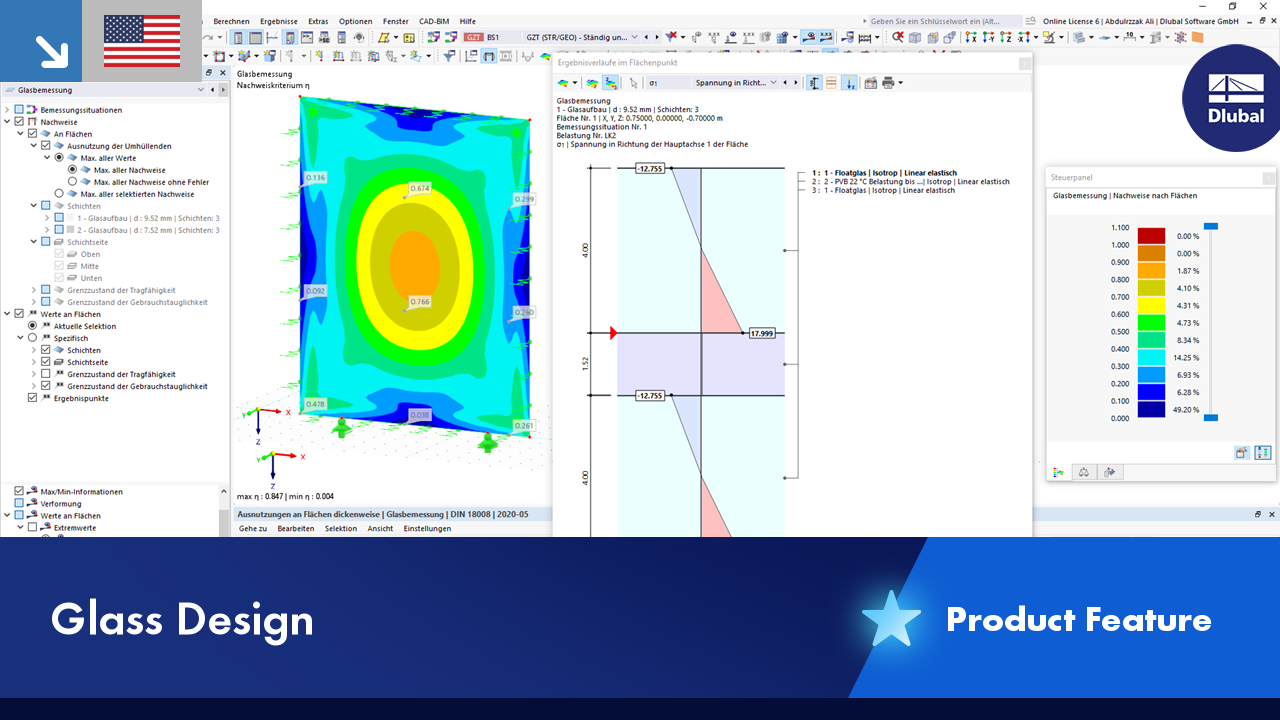

The Glass Design add-on allows you to design single and laminated glass according to the DIN 18008 standard, or perform a stress analysis without reference to a standard.
It is possible to design both flat and curved glass surfaces.
The results can be displayed graphically and in tables, as usual. In addition, you can display all the design check formulas used, and visualize the results in a diagram.
Product Feature
The deformation process of the global deformation components can be represented as a movement sequence.
Result values for deformations, internal forces, stresses, and so on, can be displayed on the isolines.
The results of solid stresses can be displayed as colored 3D points in the finite elements.
In addition to the "Mesh Refinement" and "Specific Direction" options for solids, you can also activate the "Grid for Results" option, which allows for organizing grid points in the solid space. Among other things, the center of gravity can be set as the origin. There is also the option to activate or deactivate the visibility of the grid for numerical results in "Navigator – Display" under Basic Objects.
