Generation of Wind Loads

Wind loads are also not a problem in your design. You can automatically generate wind loads as member loads or area loads (RFEM) on the following structural components:

  • Vertical walls
  • Flat roofs
  • Monopitch roofs
  • Duopitch/troughed roofs
  • Vertical walls with duopitch roof
  • Vertical walls with flat/monopitch roof

The following standards are available to you:

  • European Union | Flag EN 1991-1-3 (incl. National Annexes)
  • EN-US | Flag ASCE 7
  • Canada | Flag NBC
  • Spain Flag CTE DB-SE-AE
  • South Africa Flag SANS 10160
  • People's Republic of China | Flag GB 50009
Feature 002013 | Generation of Wind Loads

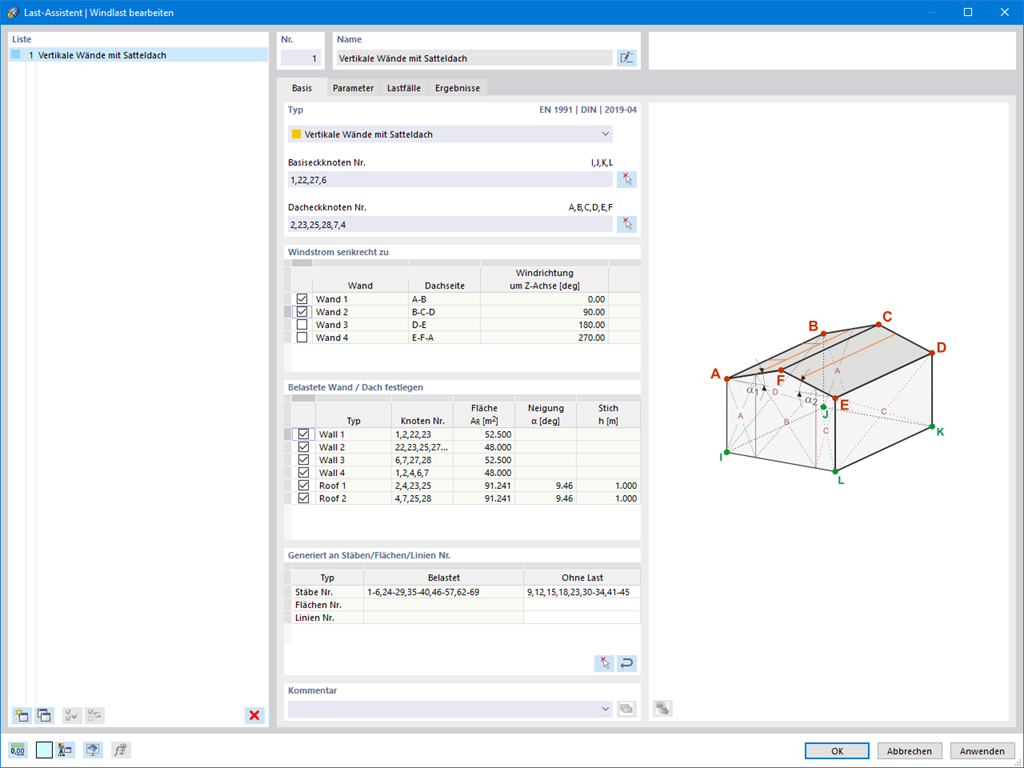

Wind Load on Vertical Walls with Duopitch Roof
