In earthquake engineering, understanding and mitigating the impact of seismic forces on structures is paramount. The Design Response Spectrum (DRS)—a graphical representation of how different structures respond to seismic ground motion—serves as the cornerstone for understanding and quantifying the effects of seismic forces on structures. The DRS remains indispensable in evaluating seismic demands, from the simplest to the most complex analysis methods. Universal application of the DRS ensures that engineers can assess how structures respond to seismic events, enabling designs that meet safety, resilience, and code compliance standards.

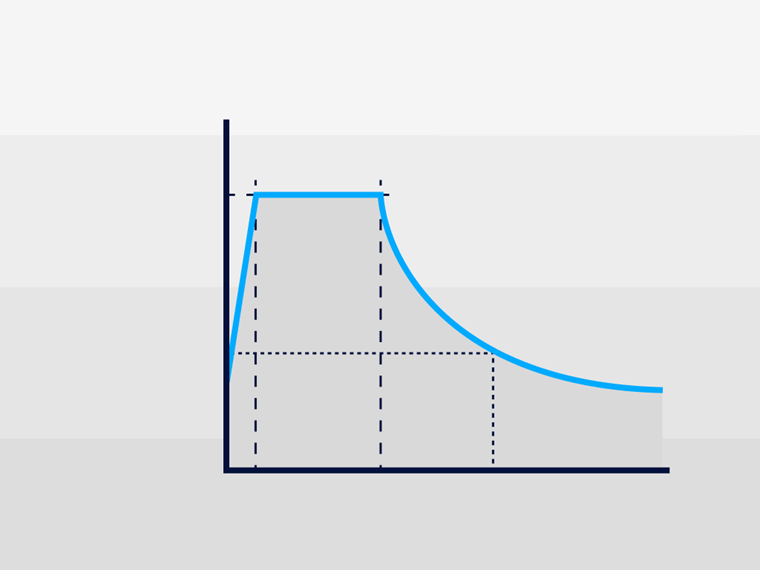

What is Design Response Spectrum?
A Design Response Spectrum represents the peak structural response—acceleration, velocity, or displacement—due to ground motion, plotted as a function of the structure’s natural vibration period. It encapsulates seismic demand and is influenced by key factors such as:
- Structural Damping: The rate at which energy dissipates during motion.
- Ground Motion Characteristics: Seismic intensity, frequency content, and duration.
- Soil Type: Site-specific effects that amplify motion.
The adaptability of the DRS to these factors makes it applicable to many different types of buildings in various locations with varying earthquake risks. Thus, it helps engineers to turn complex earthquake data into clear, practical guidelines for designing structures that can handle those forces safely.
Why is Design Response Spectrum essential?
1. Standardized Input for Seismic Design
The DRS provides a consistent representation of seismic forces, ensuring uniformity in structural analysis and compliance with building codes across projects.
2. Applicability Across Seismic Analysis Methods
Whether the approach is linear or nonlinear, static or dynamic, the DRS serves as the foundation for quantifying seismic demand. This versatility will be explored further in the following sections.
3. Code Compliance
Seismic design codes such as Eurocode 8, ASCE 7, and IS 1893 mandate the use of design spectra to ensure structures are designed to withstand seismic forces.
Role of the Design Response Spectrum in Seismic Analysis Methods

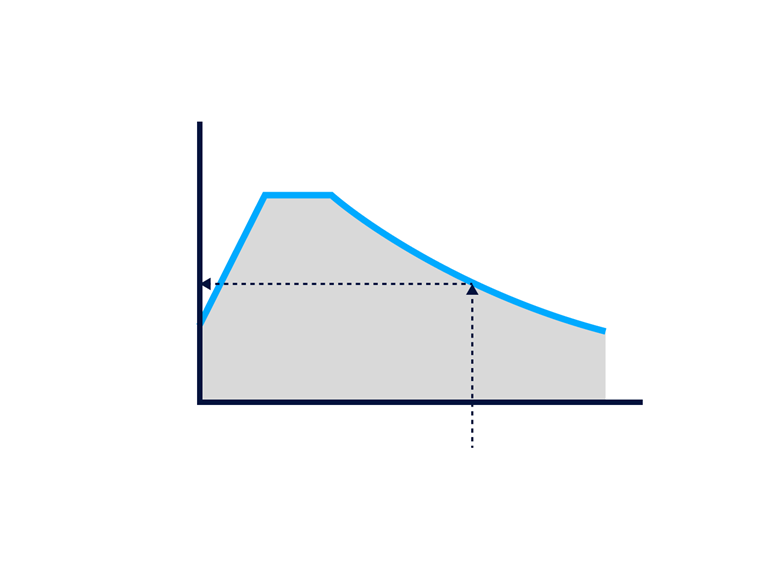

1. Equivalent Lateral Force (ELF) Method
As discussed in previous Knowledge Base articles (listed at the end), the ELF method considers only the fundamental mode shape and distributes the base shear across the structure accordingly. The DRS serves to determine the spectral acceleration at the building’s fundamental period, which is then used to calculate the base shear force.

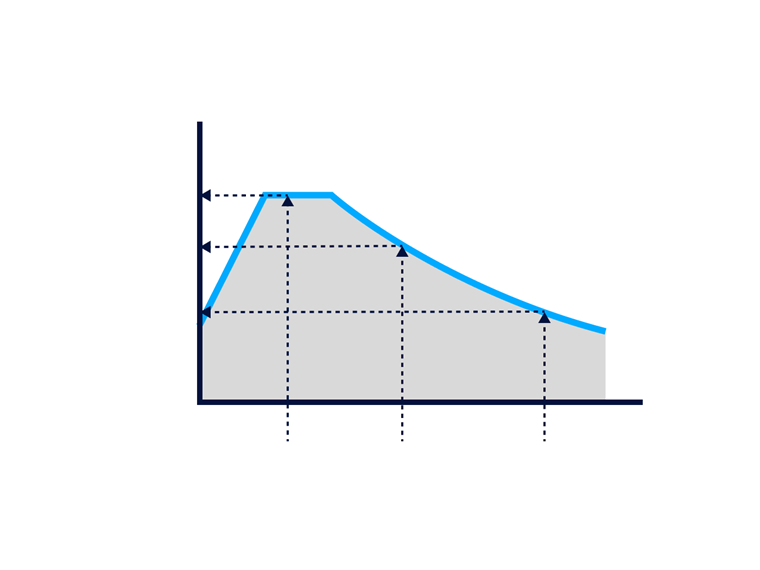

2. Multimodal Response Spectrum Analysis
This method extends the ELF approach by considering multiple vibration modes, making it more accurate for complex structures. The DRS determines the spectral acceleration for each significant mode’s period, ensuring a comprehensive assessment of seismic response.

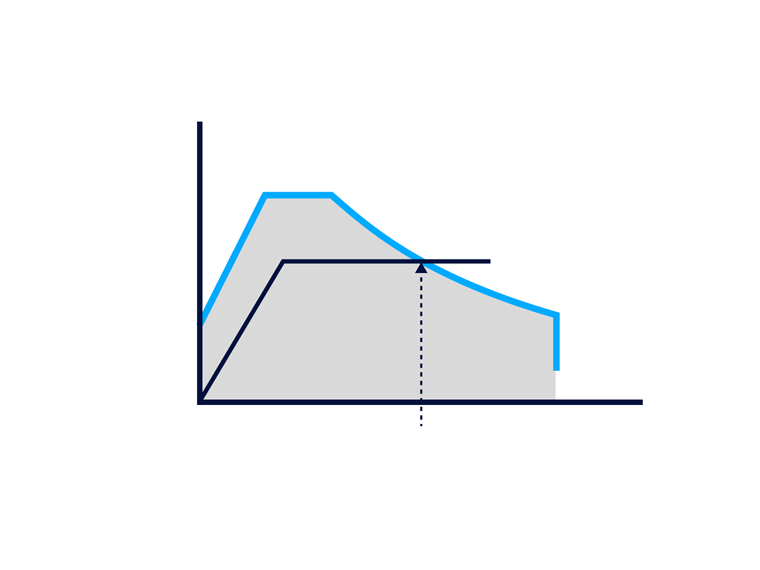

3. Nonlinear Static (Pushover) Analysis
Used in performance-based seismic design, pushover analysis evaluates structural capacity under increasing seismic loads. The result is a capacity curve, showing the force-displacement relationship. By overlaying this with a demand curve, derived from the DRS, engineers determine the performance point which represents the expected displacement during a given seismic event. This comparison bridges the gap between seismic demand and structural capacity.

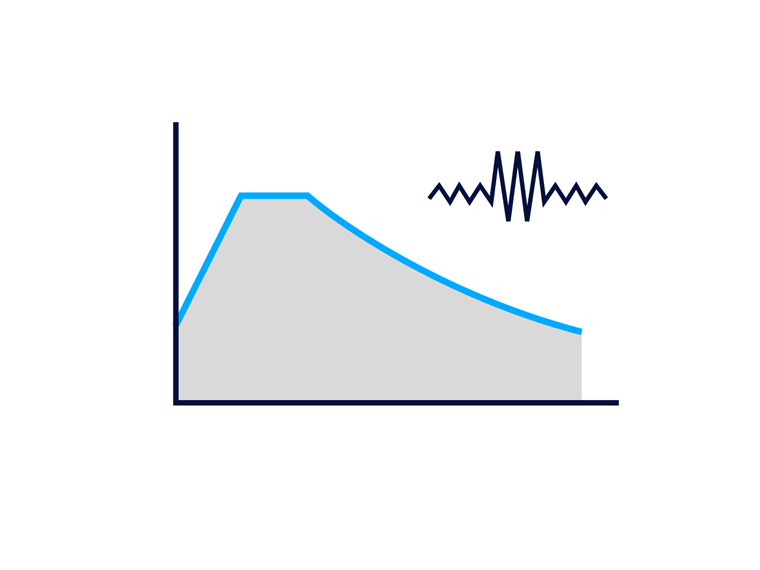

4. Time History Analysis
Time history analysis, the most sophisticated seismic analysis method, simulates a structure’s response to actual ground motion records. To ensure that the applied seismic input reflects design-level earthquake hazards, accelerograms (ground motion records) must be scaled or selected to match the Design Response Spectrum. This process ensures that time-dependent structural behavior aligns with regulatory seismic demand.
Conclusion
The Design Response Spectrum is the backbone of earthquake engineering, providing a standardized and versatile framework for analyzing seismic effects. Its importance transcends analytical complexity, ensuring that every method—whether basic or advanced—remains grounded in codified seismic demand. From determining base shear forces in the simplest static methods to scaling accelerograms in dynamic analyses, the DRS ensures that seismic design is both reliable and resilient. This universality cements its role as an indispensable tool for engineers working to safeguard structures against earthquakes.
