Download the model of three steel columns configured with three stability analysis methods according to Eurocode 3 and open it with the FEA software RFEM 6.

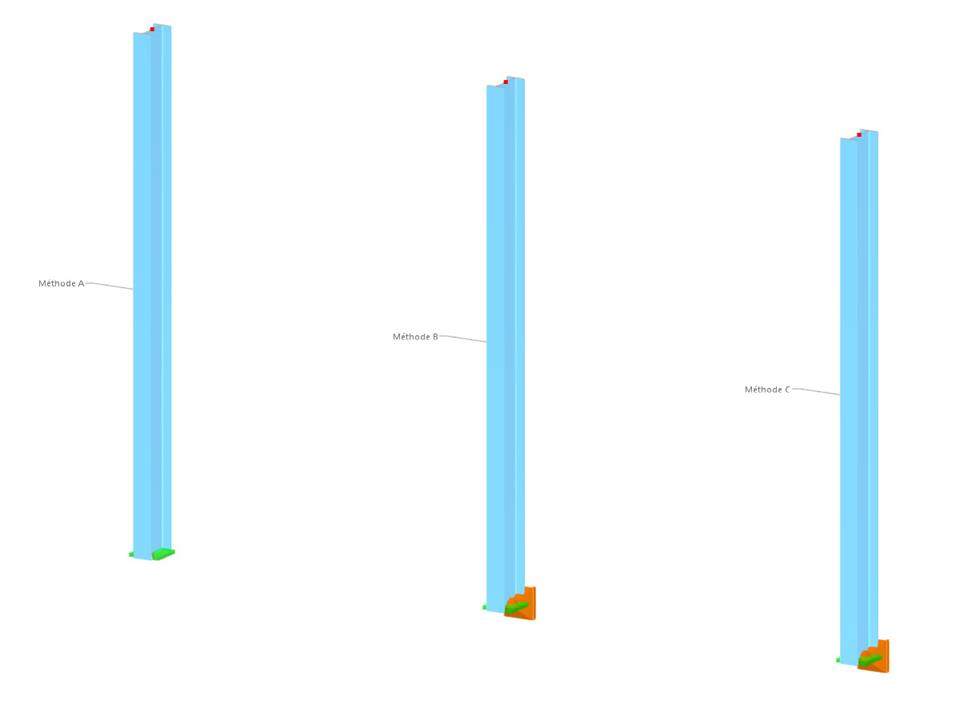

Steel Columns with Different Methods of Stability Analysis
| Number of Nodes | 6 |
| Number of Lines | 3 |
| Number of Members | 3 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 4 |
| Number of Result Combinations | 0 |
| Total Weight | 0.507 tons |
| Dimensions (Metric) | 6,000 x 4,000 x 0,000 m |
| Dimensions (Imperial) | 19.69 x 13.12 x 0 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
