This model demonstrates the stability analysis of a tilting cube using a stepwise load increment. The method helps accurately identify buckling loads and the associated load factors. A gradual increase of the loads allows analyzing the course of stability up to the critical load. Ideal for studying the behavior of this geometric body under varying load conditions.
Model Used in
Overall
This page has 0 user ratings.
| 5 star | ||
| 4 star | ||
| 3 star | ||
| 2 star | ||
| 1 star |

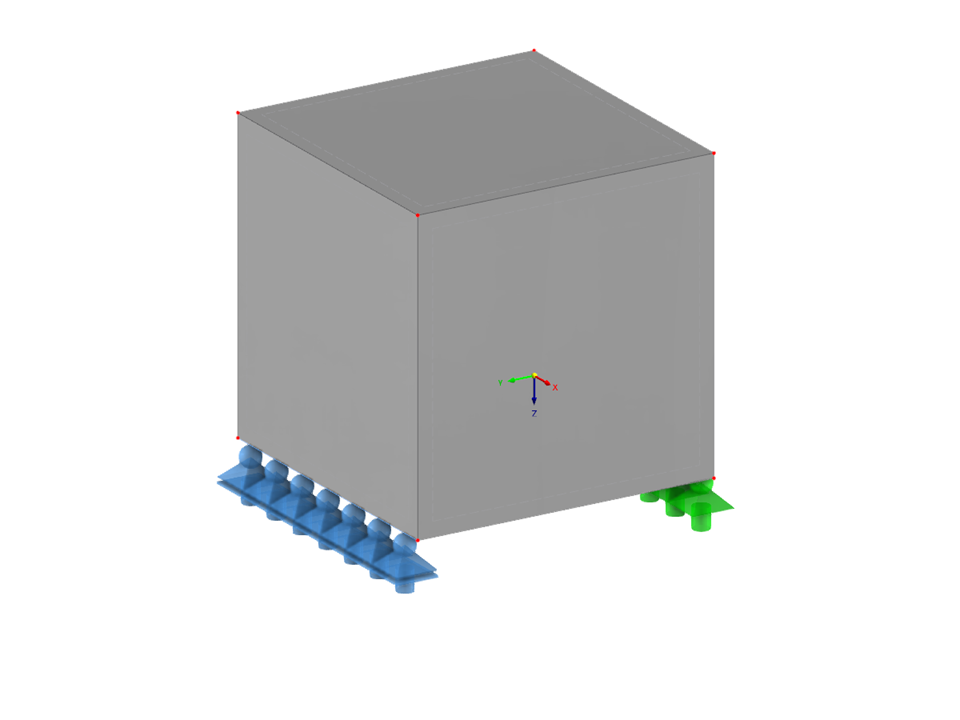

Tilting Cube
| Number of Nodes | 8 |
| Number of Lines | 12 |
| Number of Members | 0 |
| Number of Surfaces | 6 |
| Number of Solids | 1 |
| Number of Load Cases | 2 |
| Number of Load Combinations | 1 |
| Number of Result Combinations | 0 |
| Total Weight | 1,550 t |
| Dimensions (Metric) | 1,000 x 1,000 x 1,000 m |
| Dimensions (Imperial) | 3.28 x 3.28 x 3.28 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
