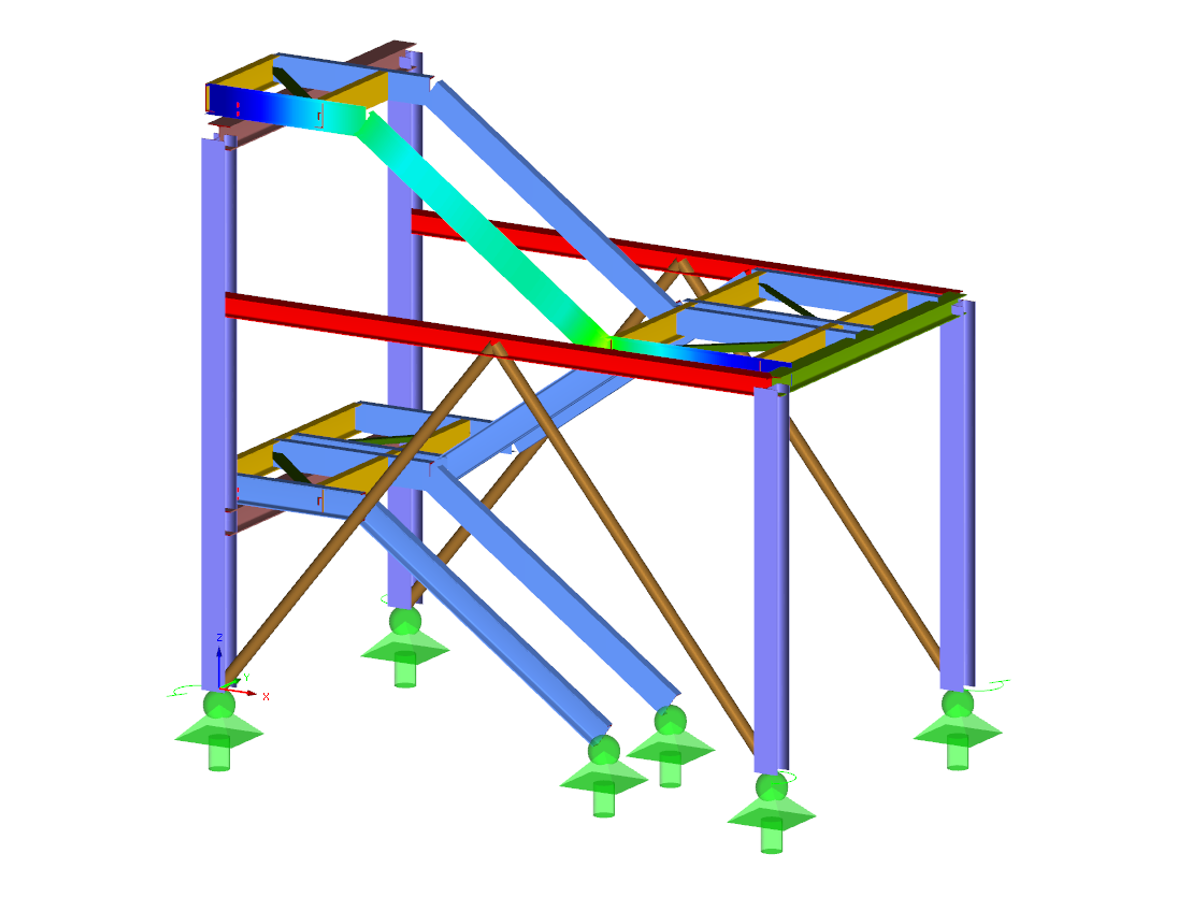

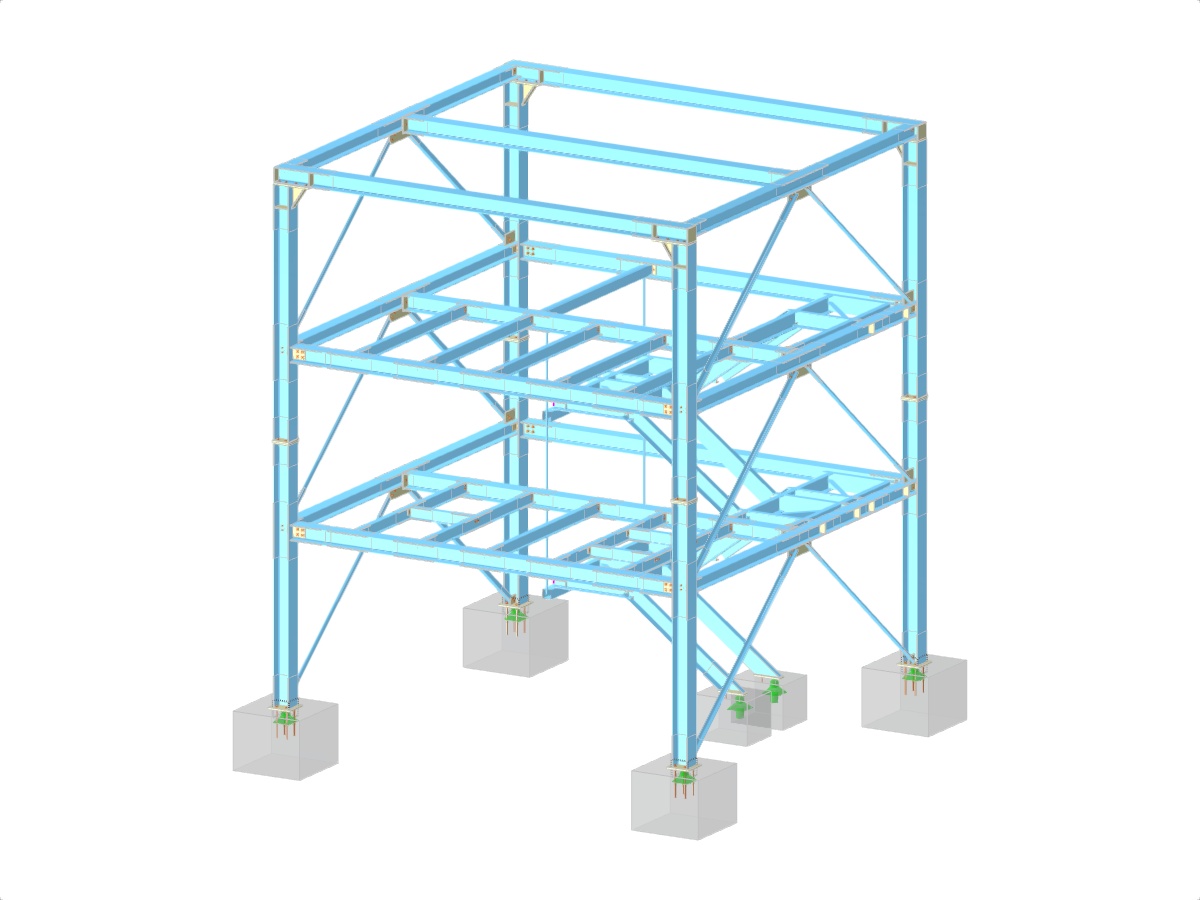

This 3D model showcases a steel tower featuring an integrated staircase. It emphasizes efficient steel joints with robust connections and solid foundations. The design delivers precise detailing for steel construction projects while ensuring reliable load transfer. Ideal for advanced analyses of complex steel structures, the model underlines innovative design strategies.

Model Used in
Overall
0 out of 5 stars
This page has 0 user ratings.
5 star
4 star
3 star
2 star
1 star
(0)
0 out of 5 stars
5 star 0
4 star 0
3 star 0
2 star 0
1 star 0

Steel Tower with Steel Connections

Number of Nodes 129
Number of Lines 205
Number of Members 205
Number of Surfaces 0
Number of Solids 0
Number of Load Cases 15
Number of Load Combinations 26
Number of Result Combinations 1
Total Weight 8.226 tons
Dimensions (Metric) 6,000 x 7,200 x 6,000 m
Dimensions (Imperial) 19.69 x 23.62 x 19.69 feet

You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
