RF-GLASS | Features

  • Design of single-layer or laminated glass as well as gas layer insulating glass
  • design of curved glass
  • Option to select either local calculation without regard to the influence of a surrounding structure, or global calculation with regard to the influence of an entire structure
  • Calculation of limit stresses according to DIN 18008:2010-12 or TRLV:2006-08
  • Assignment of loads to load duration classes
  • Extensive material library including all common glass, foil, and gas types in compliance with the DIN 18008:2010-12, E DIN EN 13474 standards, and the TRLV:2006-08 regulation
  • Optional consideration of shear coupling of layers
  • Consideration of climatic loads
  • Calculation according to the linear static analysis or nonlinear analysis according to the large deformation analysis. analysis
  • Stress analysis, ultimate limit state design, serviceability limit state design

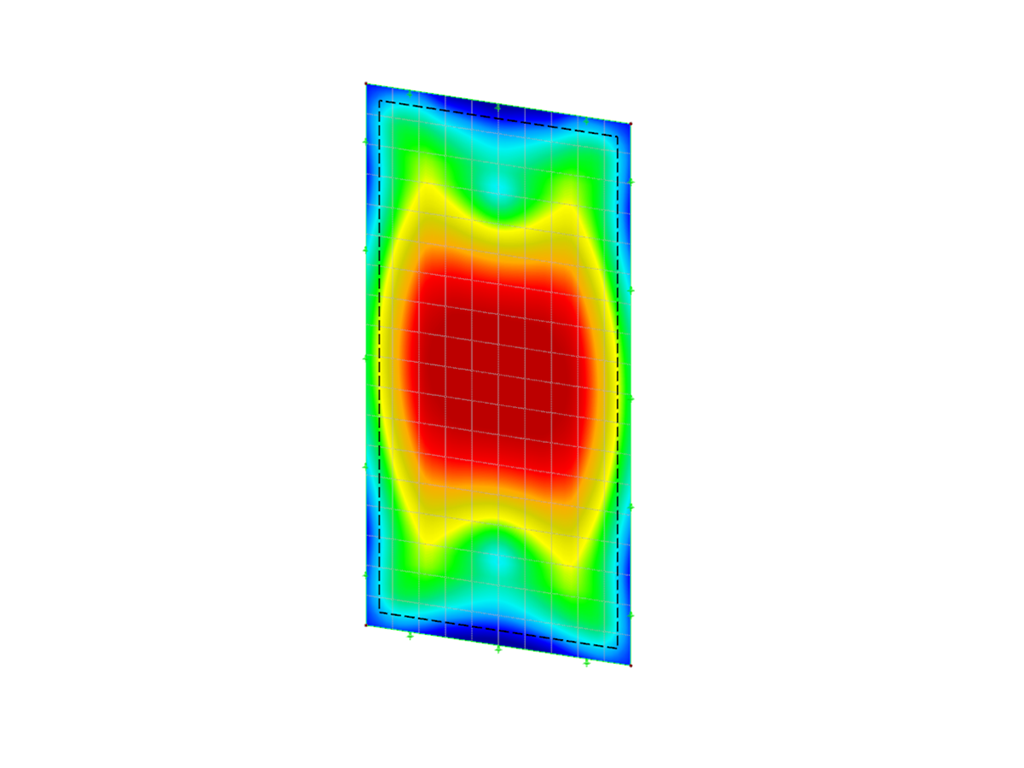

  • Graphical representation of all results in RFEM
  • Possibility to filter results and color scales in result tables
  • Direct data export to MS Excel
