Determining Graphics Card Used in RFEM 6

How can I find out which graphics card is actually used by RFEM 6?

Answer:

This way, you can determine which graphics card is used in RFEM 6, RSTAB 9 or RSECTION 1:

  1. Open RFEM 6, RSTAB 9 or RSECTION 1.
  2. Go to the menu Help > System Information.

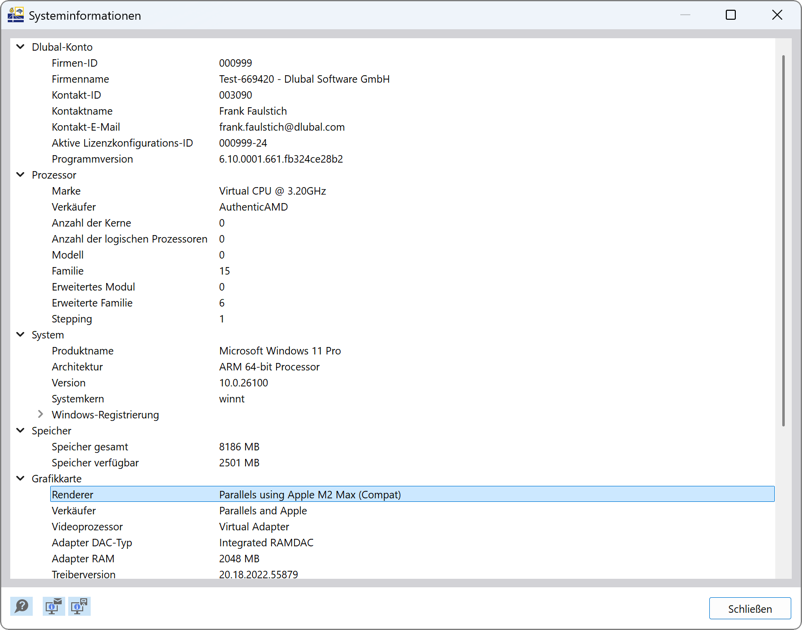

  3. Look for the entry Graphics Card > Renderer. There you can see which GPU is currently used by the program.

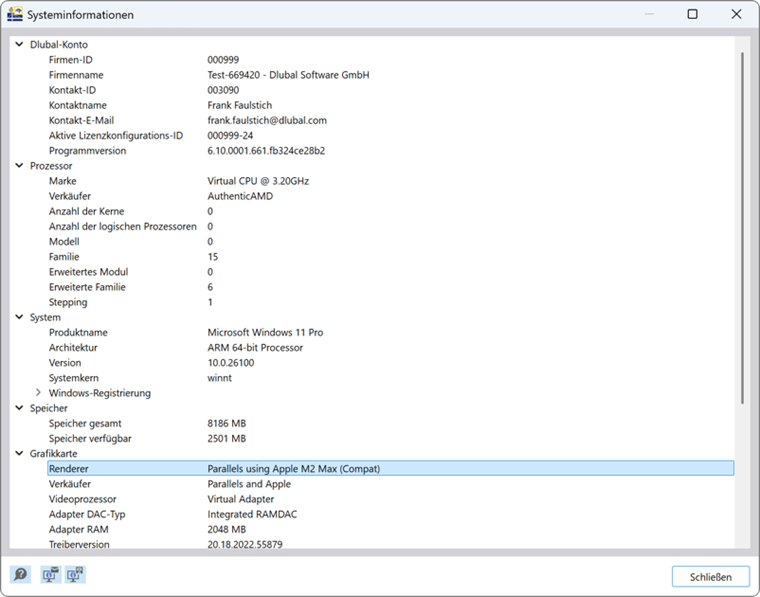

Illustration for identifying the graphics card used in RFEM 6 with FAQ instructions.
Used Graphics Card
