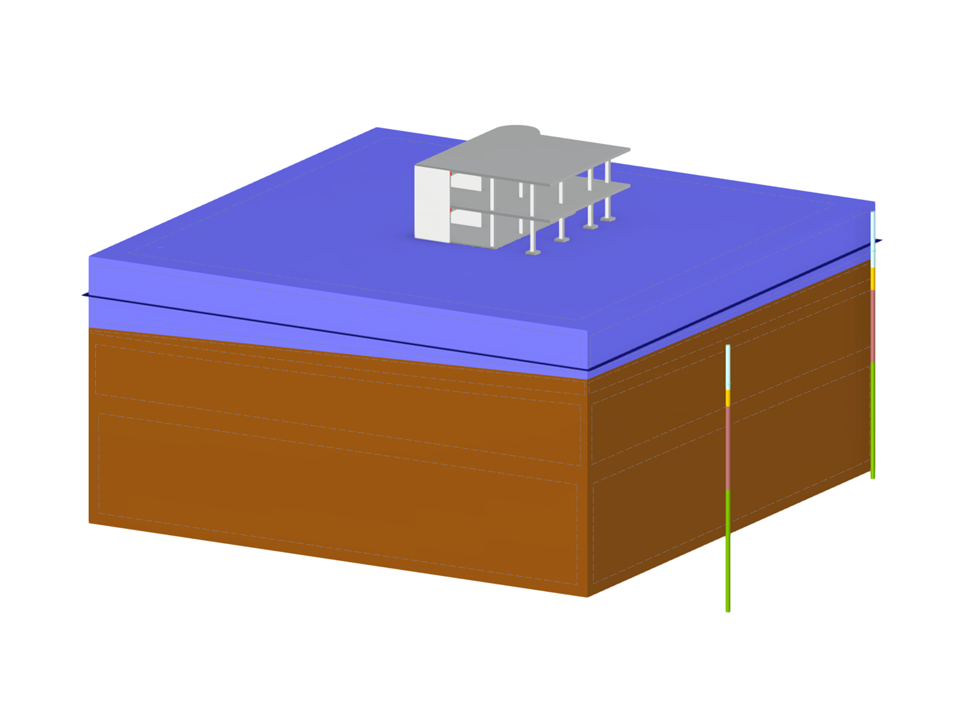

This 3D visualization of a reinforced concrete building focuses on the integration of soil-structure interaction. It highlights the geotechnical analysis capabilities in RFEM 6, ensuring thorough assessment of the building's foundation and surrounding soil. The model showcases advanced methods for analyzing interactions between structures and their geological context.
5 star | ||
4 star | ||
3 star | ||
2 star | ||
1 star |
Reinforced Concrete Building with Soil-Structure Interaction
Number of Nodes | 108 |
Number of Lines | 137 |
Number of Members | 26 |
Number of Surfaces | 41 |
Number of Solids | 4 |
Number of Load Cases | 4 |
Number of Load Combinations | 5 |
Number of Result Combinations | 0 |
Total Weight | 139024.100 tons |
Dimensions (Metric) | 61.960 x 31.370 x 51.292 m |
Dimensions (Imperial) | 203.28 x 102.92 x 168.28 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
