Details for Reinforcement Determination

How can I check the determination of the required reinforcement?

Answer:

You can view the design check details for both the design checks and for determining the reinforcement as part of the concrete design.

1 – Details for Design Checks

To do this, select the resulting design ratio for members, surfaces, and so on, in the table window for the concrete design.
For each design result, double-click the respective design ratio result in the table to open the window with the corresponding design check details.

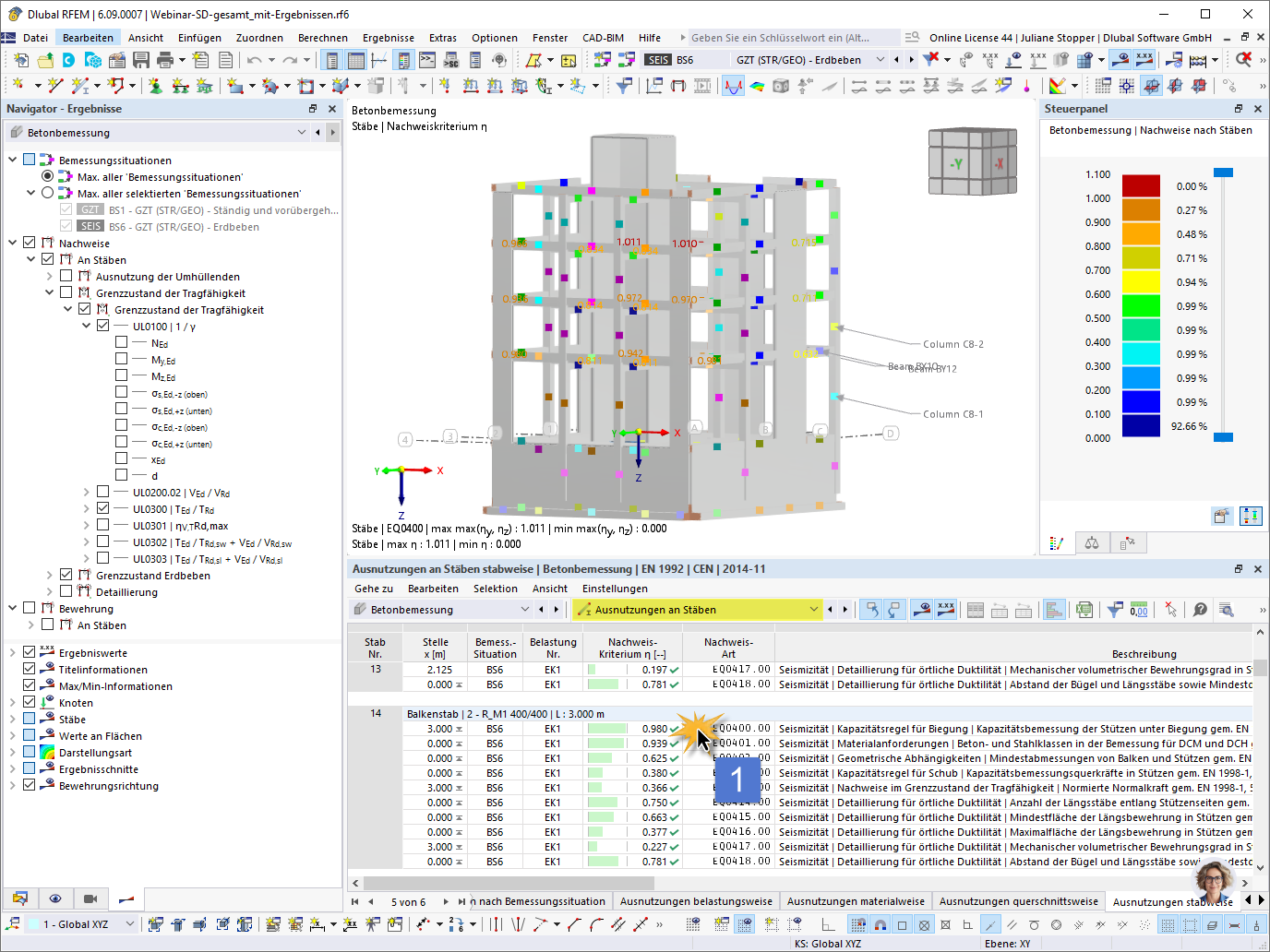

The image shows a view where the feature for opening design check details to determine the required reinforcement is presented in.
Concrete Design | Design Ratio | Opening Design Check Details

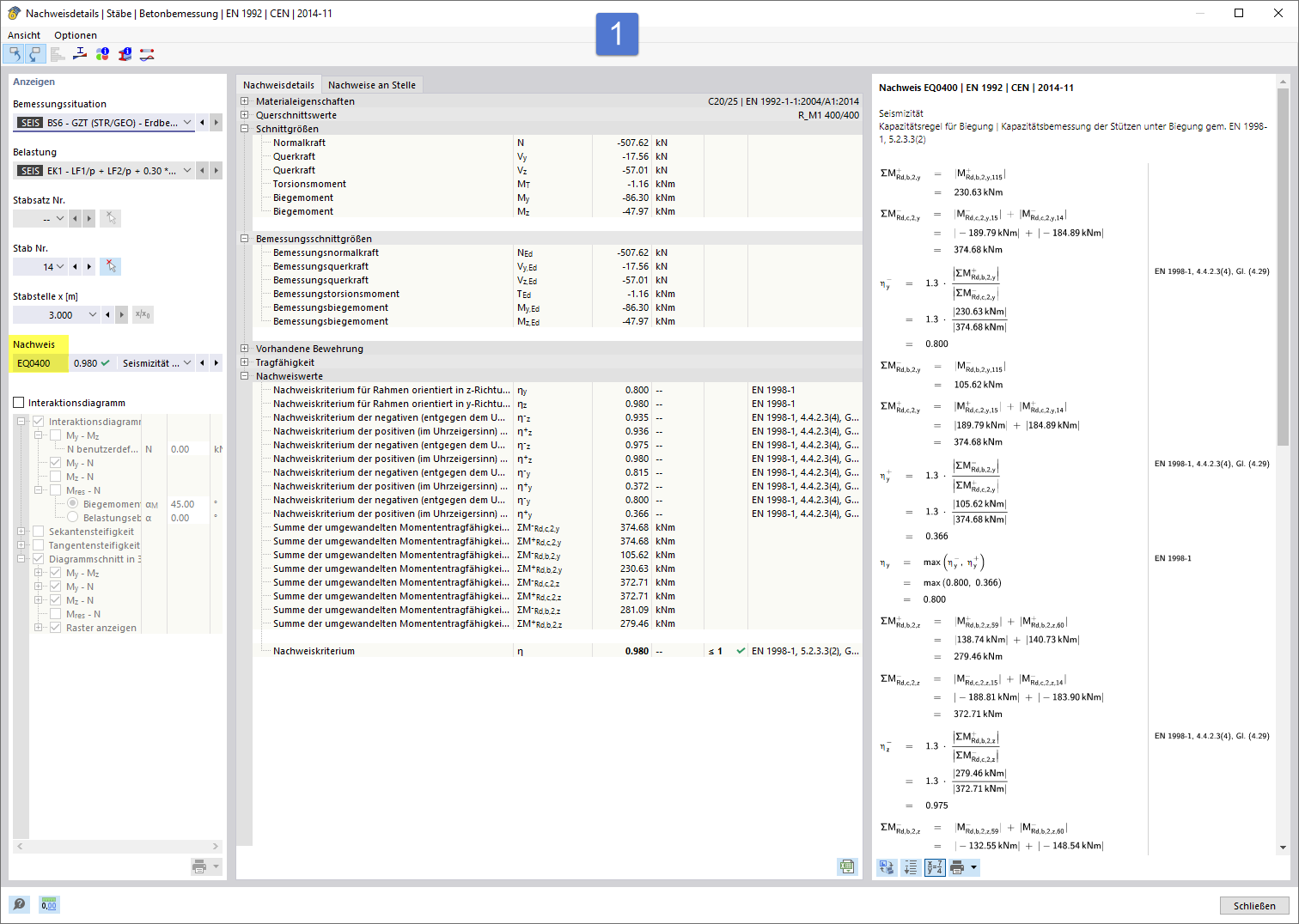

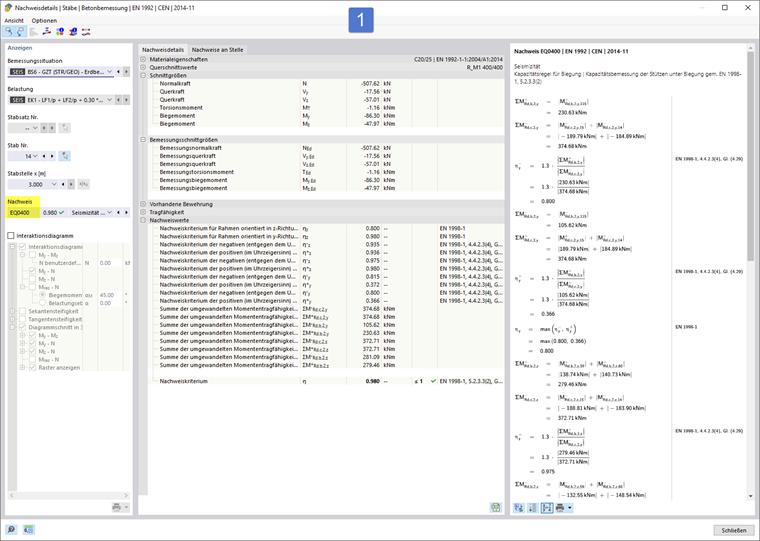

The image shows exemplary design check details of the concrete design with a focus on the required reinforcement.
Concrete Design | Design and Reinforcement

2 – Details for Reinforcement Determination

To do this, select the resulting Reinforcement on members, surfaces and so on, in the table window for the concrete design.
For each reinforcement result, double-click the respective value in the table to open the window with the corresponding details for determining the reinforcement.

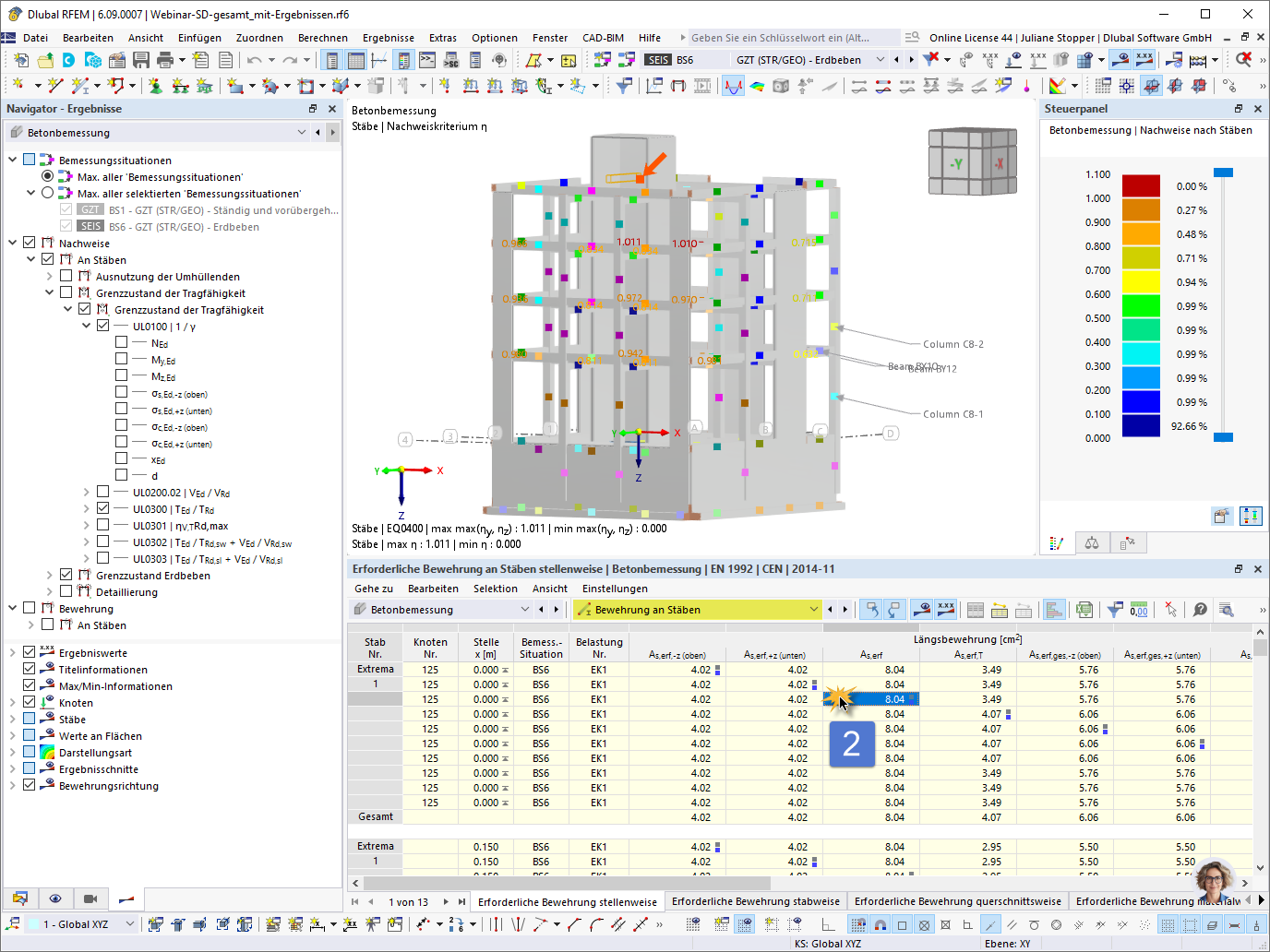

The image shows the calculation of the required reinforcement in the concrete based on details related to the design.
Concrete Design | Design Ratio | Reinforcement Determination

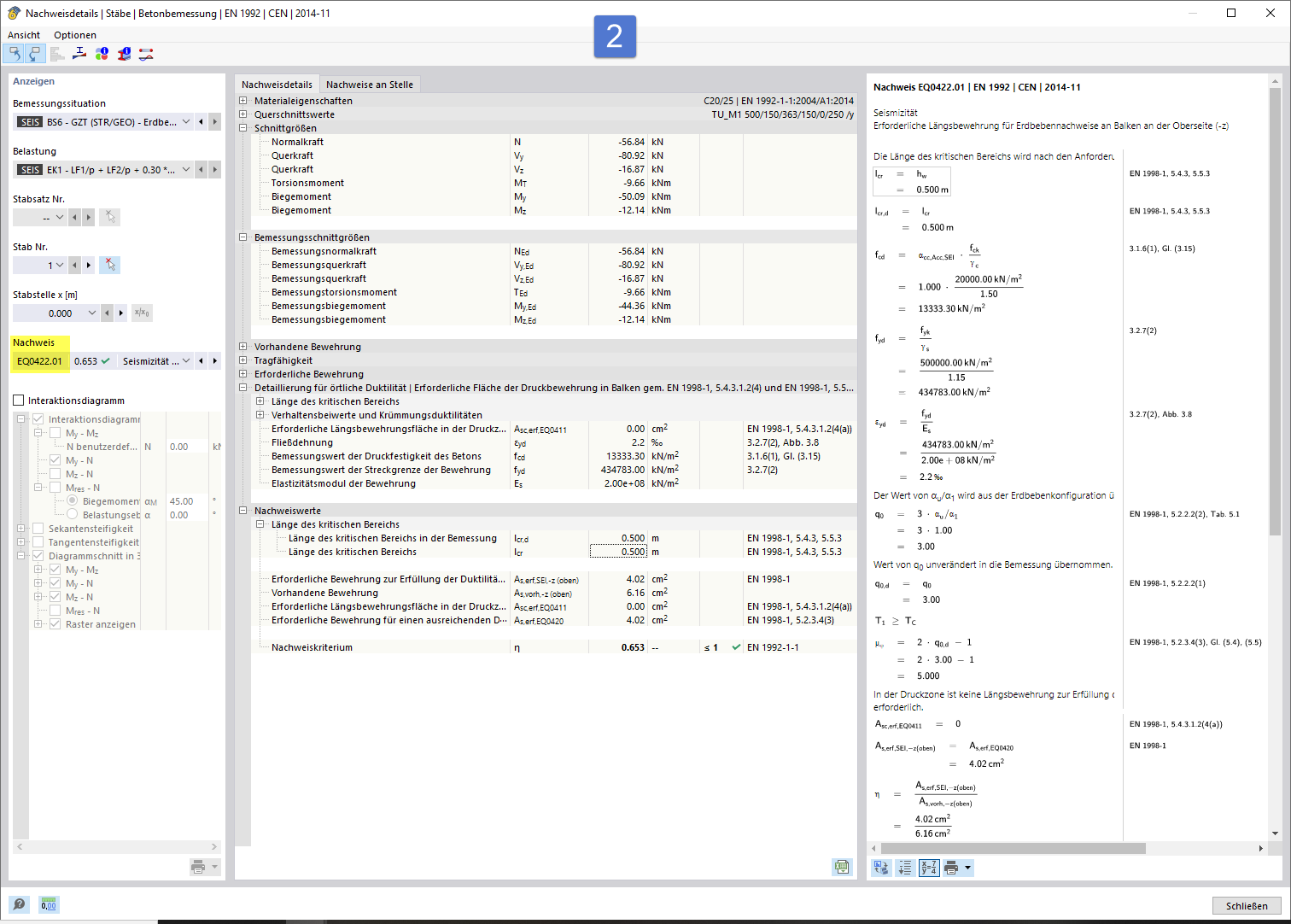

The image shows examples of the reinforcement result details in a concrete design calculation.
Concrete Design | Reinforcement Details
Tip

For the design check details, Excel export and printout are available. Further information can be found in the Concrete Design manual in the chapter Design Check Details.
