Automatic Function of Longitudinal Reinforcement for Members

For the design of reinforced concrete members, there is the option to automatically determine the number or diameter of rebars.

Feature 002920 | Automatic Function of Longitudinal Reinforcement for Members

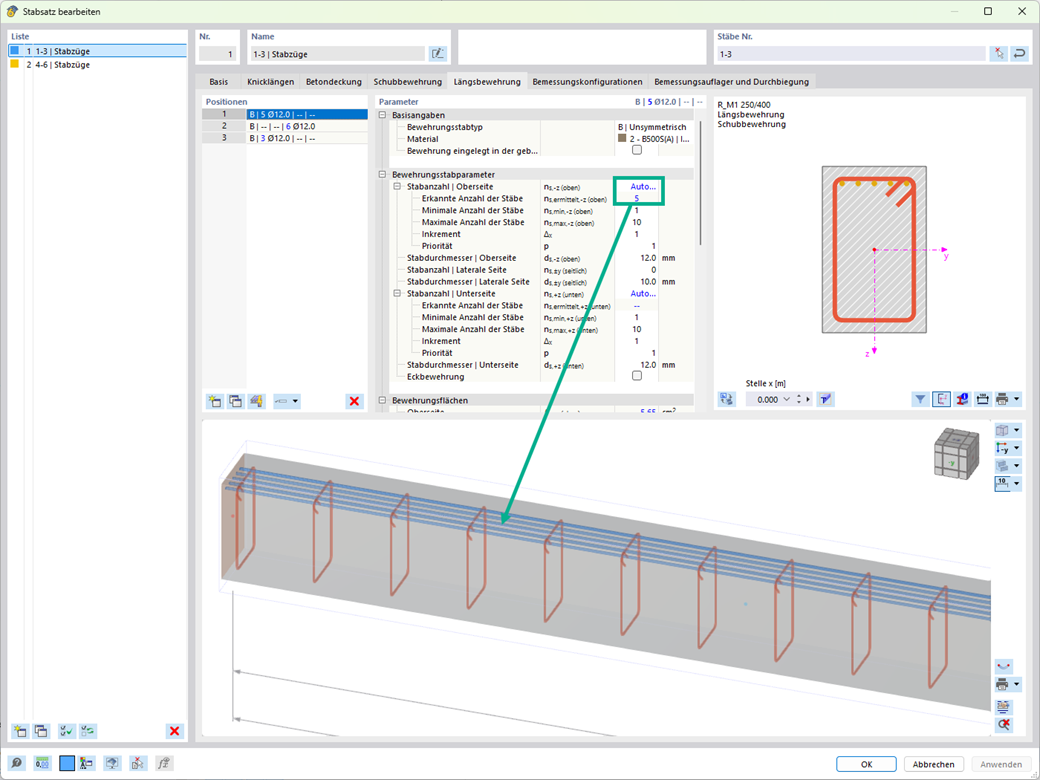

Automatic Determination of Number of Bars for Longitudinal Reinforcement
