An extraordinary structure was built in Chile: the "Temple of Light". It is one of eight Bahá'í temples worldwide. The monotheistic Bahá'í religion has about seven million followers, mainly in India, Iran, Africa, and North and South America. It took many decades to plan the temple.
Josef Gartner GmbH, a German customer of Dlubal Software, was given the job of planning, design, and construction of the entire structure above the foundation.
Structural analysis, construction and completion (steel and roof)
Josef Gartner GmbH, Würzburg, Germany
josef-gartner.permasteelisagroup.com

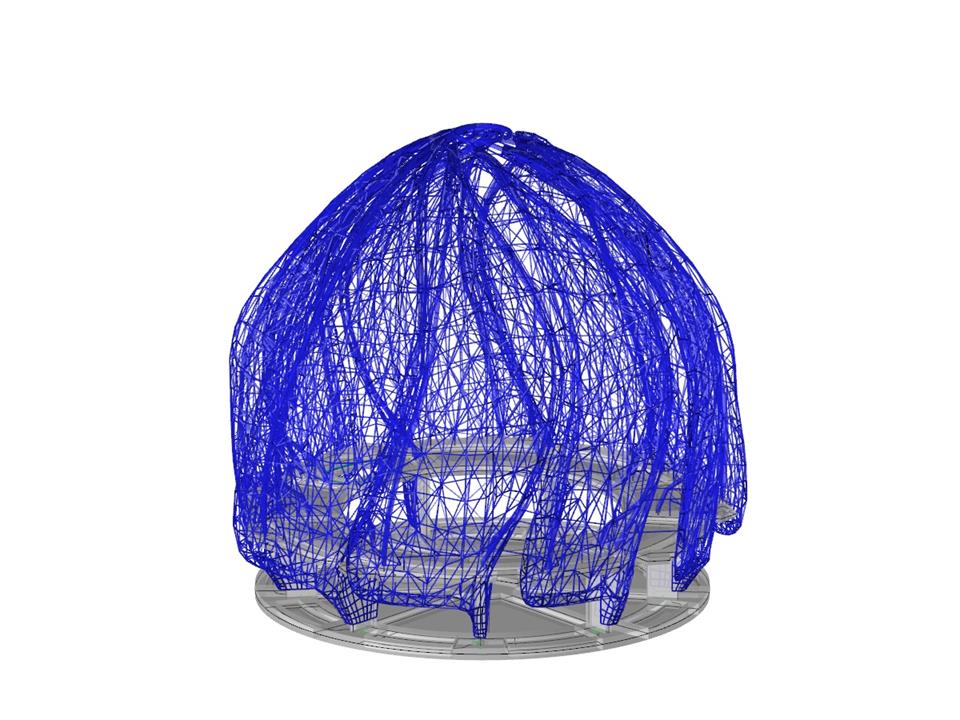

3D model (© Josef Gartner GmbH)
Josef Gartner GmbH, a German customer of Dlubal Software, was given the job of planning, design, and construction of the entire structure above the foundation.
Structural analysis, construction and completion (steel and roof)
Josef Gartner GmbH, Würzburg, Germany
josef-gartner.permasteelisagroup.com
3D model (© Josef Gartner GmbH)
Steel and Concrete Structure
No Download Possible
Customer Project / View Only
| Number of Nodes | 9734 |
| Number of Lines | 18620 |
| Number of Members | 17300 |
| Number of Surfaces | 118 |
| Number of Load Cases | 7 |
| Number of Result Combinations | 4 |
| Dimensions (Metric) | 33.128 x 33.197 x 30.407 m |
| Dimensions (Imperial) | 108.69 x 108.91 x 99.76 feet |
| Program Version | 5.02.00 |
