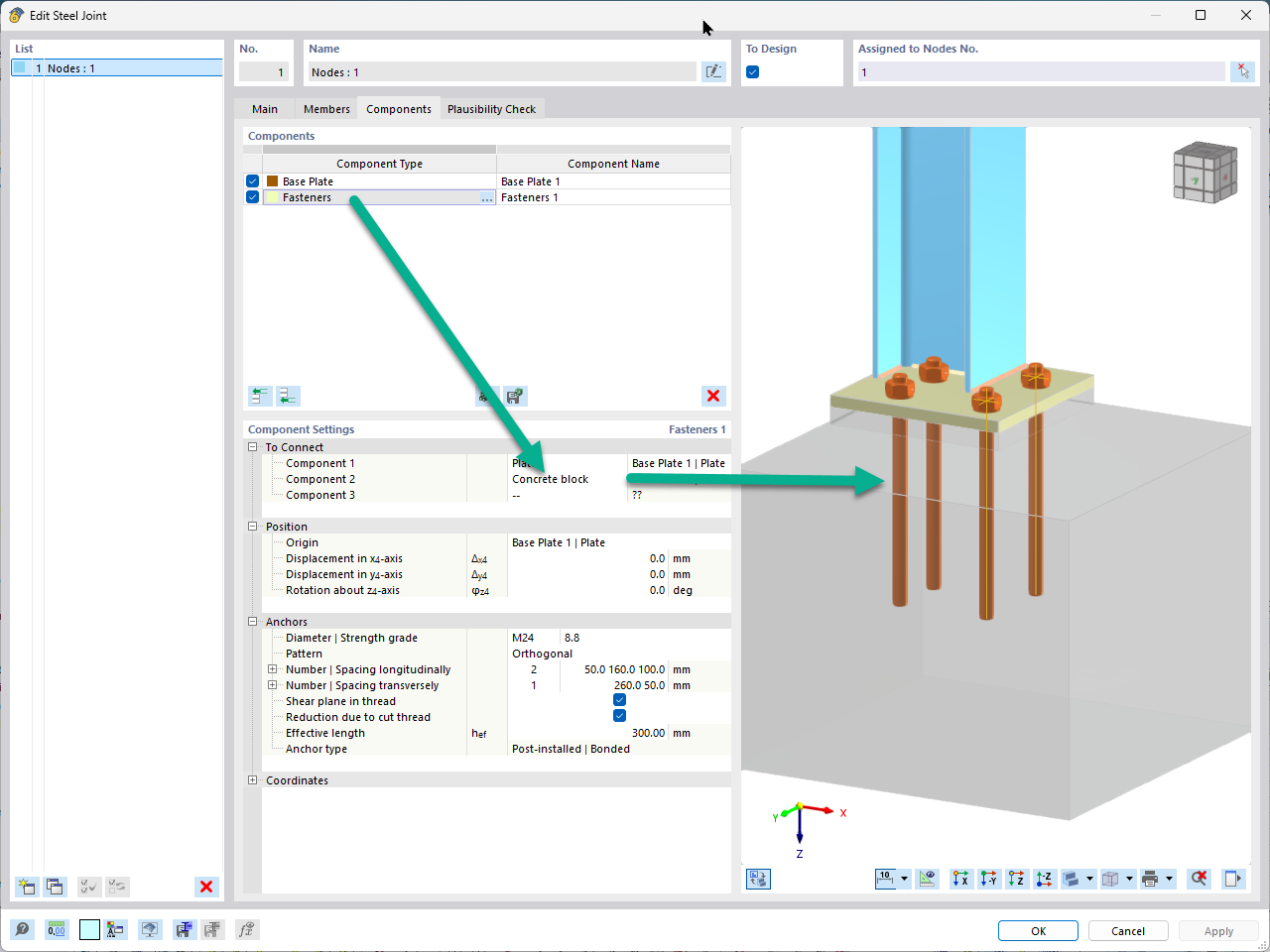

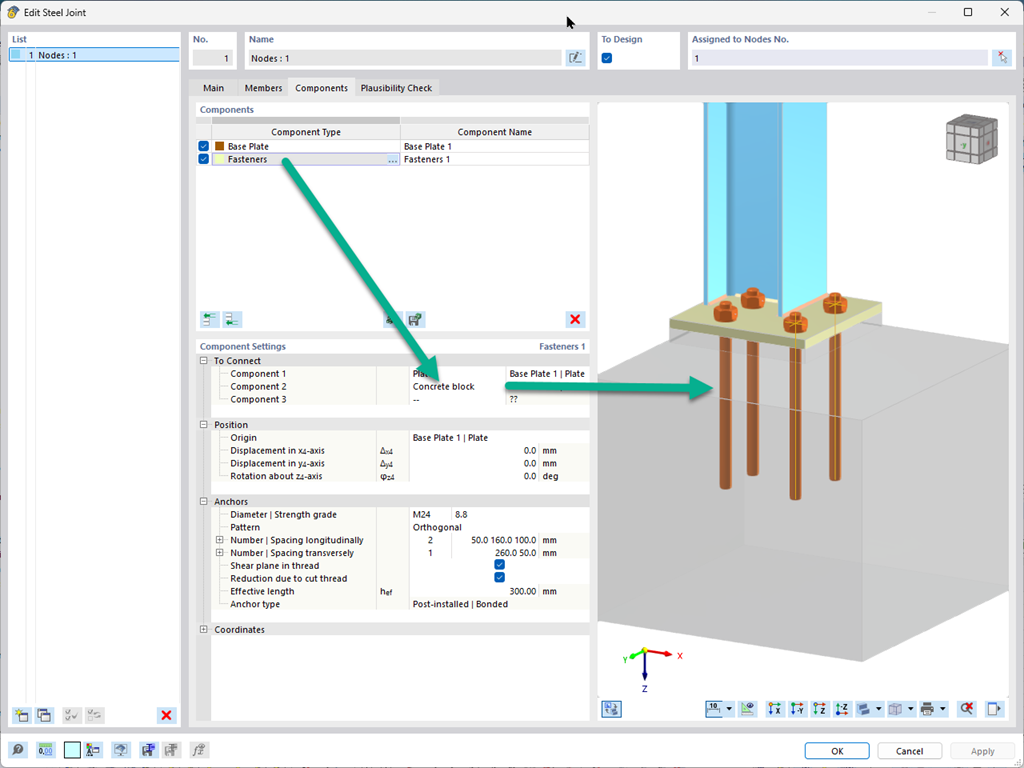

In the Steel Joint add-on, you can define anchors in a concrete block when using the "Fastener" component.
Component "Fastener" with Anchor in Concrete Block
