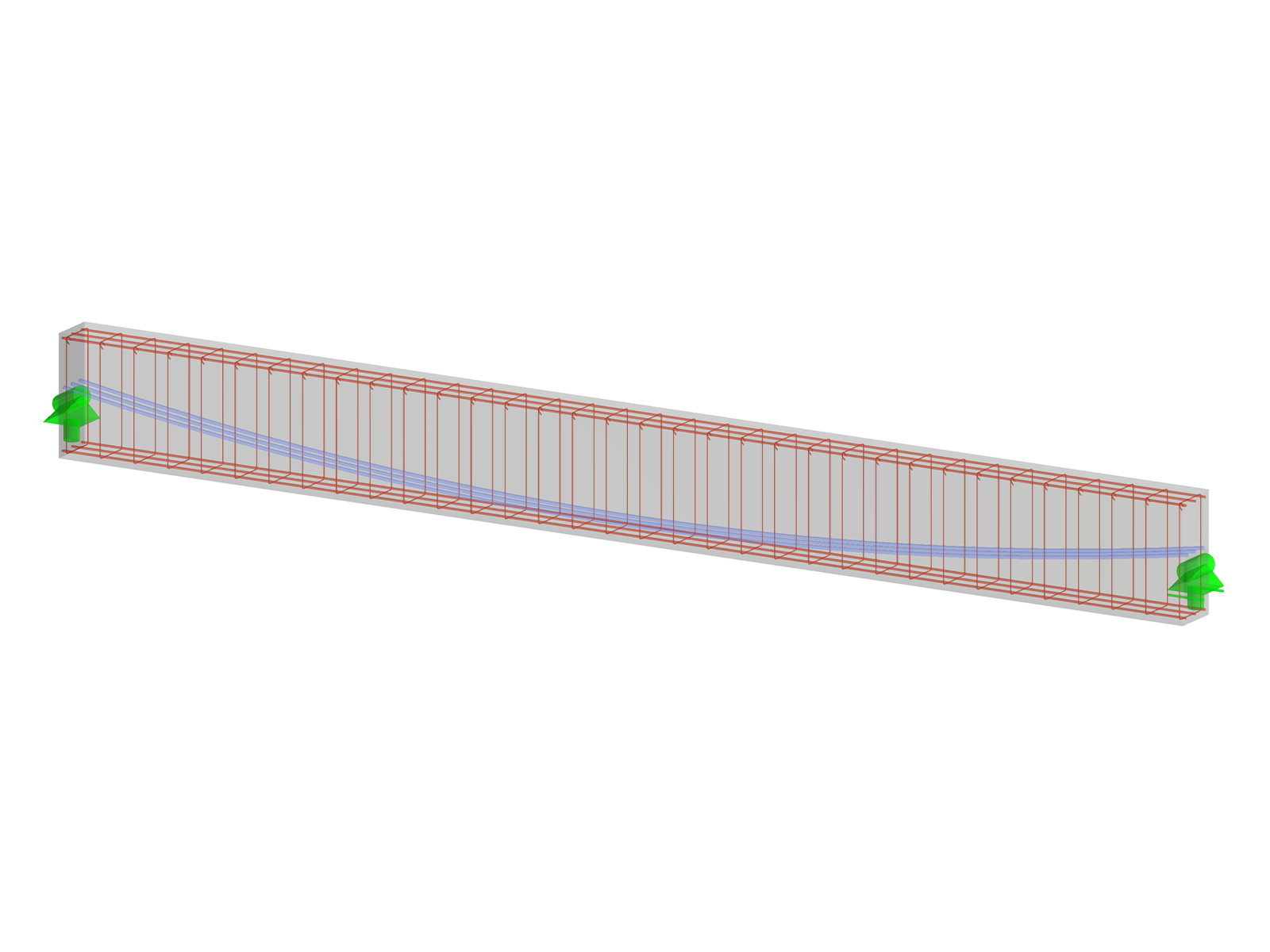

This model features a single-span concrete beam equipped with prestressing tendons. It includes six distinct types of simply supported reinforced concrete beams containing tendons. The model utilizes the Tendons add-on for RFEM 6.
Overall
This page has 0 user ratings.
| 5 star | ||
| 4 star | ||
| 3 star | ||
| 2 star | ||
| 1 star |
Single-Span Concrete Beam with Prestressing Tendons
| Number of Nodes | 36 |
| Number of Lines | 15 |
| Number of Members | 15 |
| Number of Surfaces | 0 |
| Number of Solids | 0 |
| Number of Load Cases | 3 |
| Number of Load Combinations | 8 |
| Number of Result Combinations | 0 |
| Total Weight | 60.502 tons |
| Dimensions (Metric) | 25,000 x 20,250 x 0,240 m |
| Dimensions (Imperial) | 82.02 x 66.44 x 0.79 feet |
You can download this structural model to use it for training purposes or for your projects. However, we do not assume any guarantee or liability for the accuracy or completeness of the model.
