Laboratory Building in Garching near Munich, Germany

The Technical University of Munich is currently undertaking the construction of a new laboratory building on its campus with the intention of further advancing state-of-the-art research. Not only is the building's purpose forward-thinking, but so is its sustainable construction.

113x

Dlubal customer Lignaconsult Schrentewein & Partner GmbH from Bolzano provided the structural calculations for the construction phase of this impressive building, which is mainly made of timber.

Structure

Covering an area of 30 m x 40 m (98.4 ft x 131.2 ft), the new research building will have four floors and an additional technical floor. The timber frame structure takes advantages of block-glued-laminated timber columns with a cross-section of 32 cm x 32 cm (12.6 in x 12.6 in).

The beams of various dimensions are made of structural beech or steel and support cross-laminated timber slabs with a thickness of 16 cm (6.3 in) that have been calculated for a live load of 7.5 kN/m² (156.6 lbf/ft²). The load was ultimately reduced to 5 kN/m² (104.4 lbf/ft²) to transfer the forces to the beams below.

In addition to research laboratories, the facility will include offices and conference rooms. The Dlubal customer Lignaconsult Schrentewein & Partner GmbH utilized the RFEM 6 program for the structural analysis in the execution phase. Furthermore, the add-ons Multilayer Surfaces (such as Laminate, CLT) and Building Model were used.

The new laboratory building at the Technical University of Munich is a clear indication that more sustainable construction methods are being implemented more and more as a matter of course, making it an extremely interesting customer project.

Location

Technical University of Munich Garching

Boltzmannstrasse 15

85748 Garching bei München

Investor	Technical University of Munich www.tum.de
Architecture	Lang Hugger Rampp Architekten GmbH www.langhuggerrampp.de
Structural Engineering (Design Phase)	GFM Bau- und Umweltingenieure GmbH www.gfm-ingenieure.de
Structural Design (Execution Phase)	Lignaconsult Schrentewein & Partner GmbH – Srl lignaconsult.net
General Contractor	regineering GmbH regineering.com
Timber Structure	ZP GmbH www.zhp.bz

Project Specifications

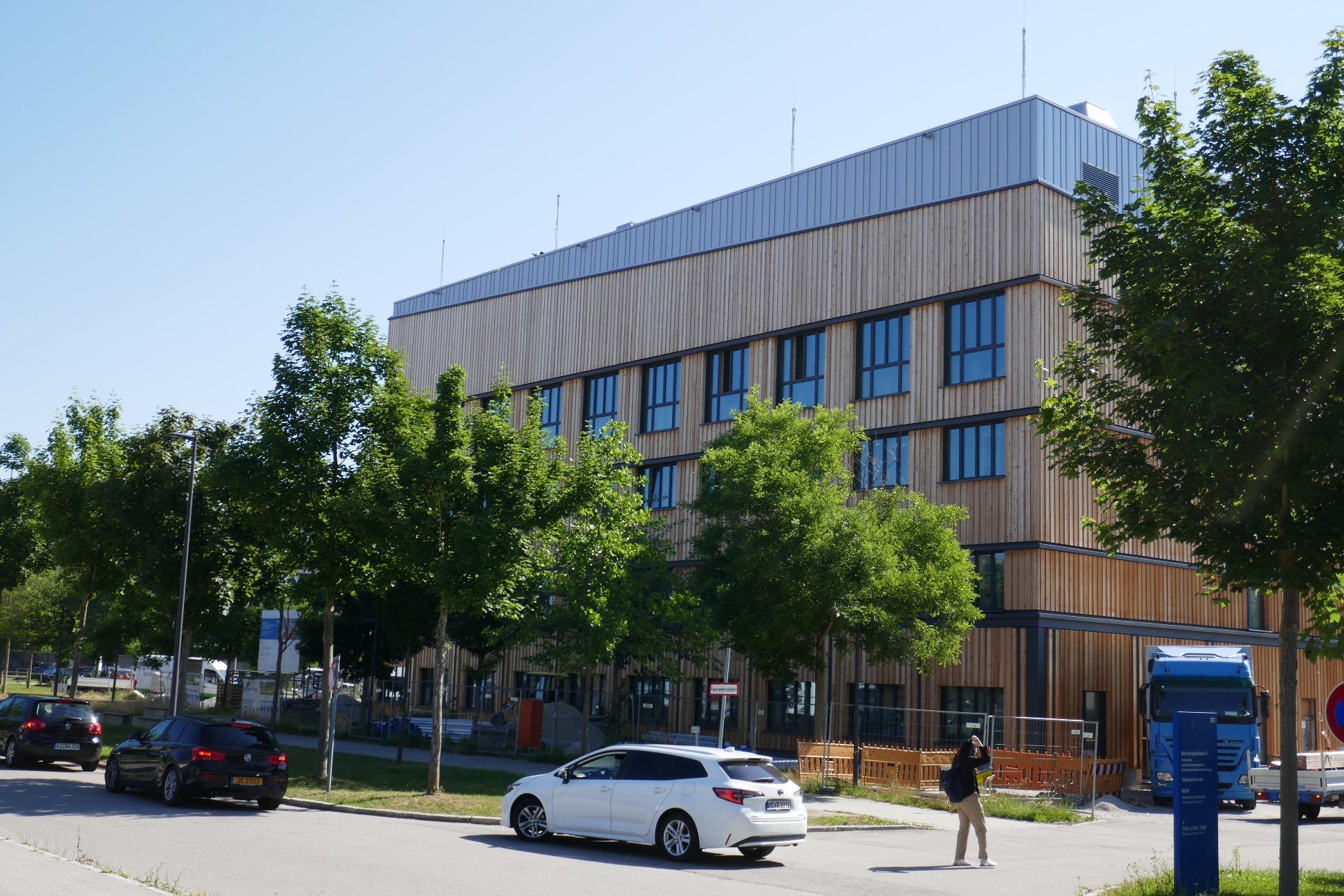

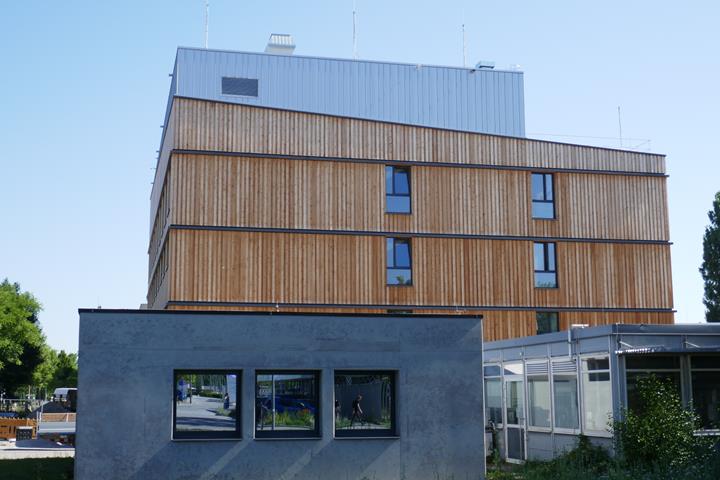

Visualization of Laboratory Building in Garching near Munich, Germany | © Lang Hugger Rampp Architekten

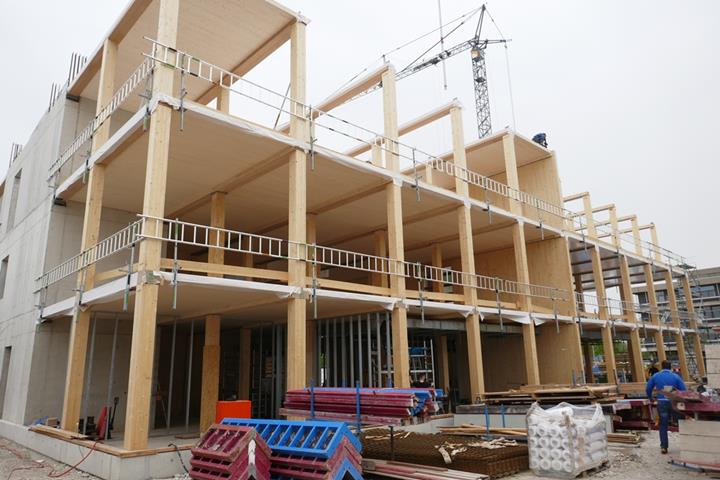

Laboratory Building During Assembly | © Lignaconsult

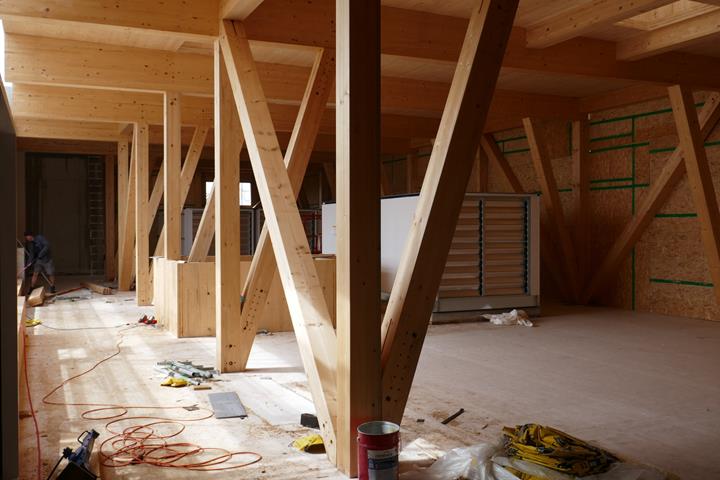

Interior columns and struts | © Lignaconsult

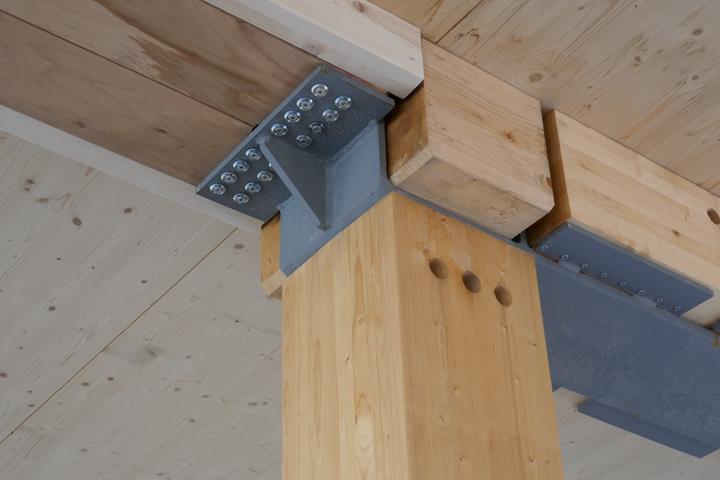

beam to column connection | © Lignaconsult

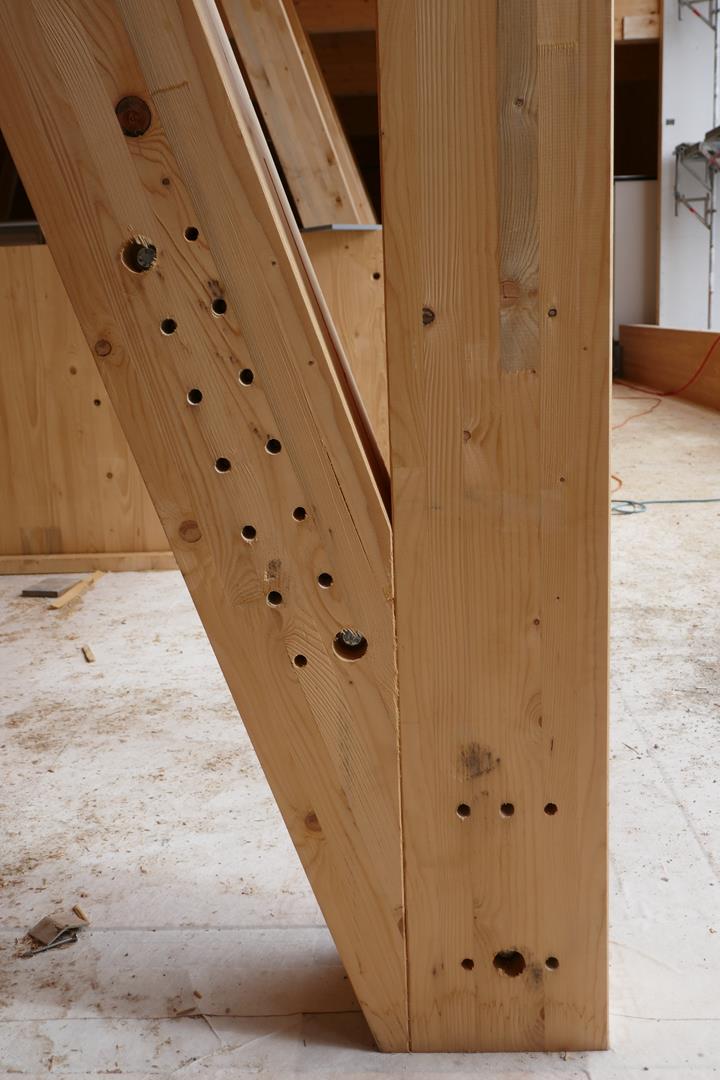

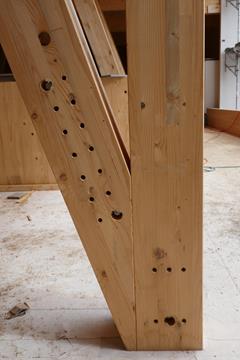

joint strut-column| © Lignaconsult

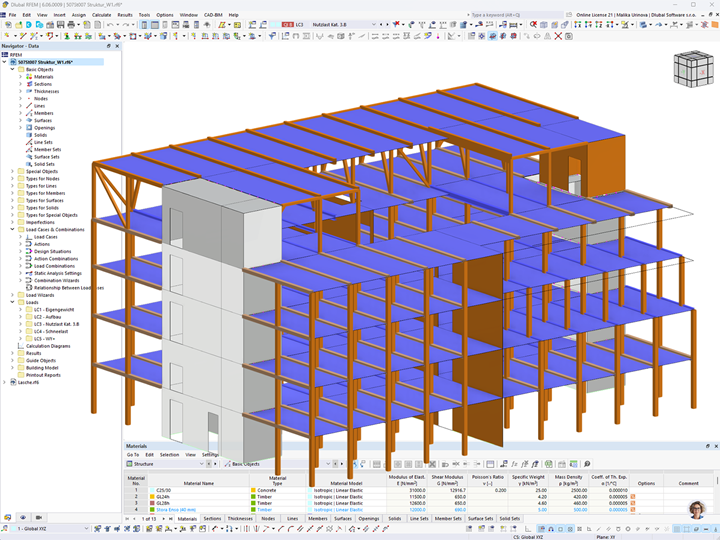

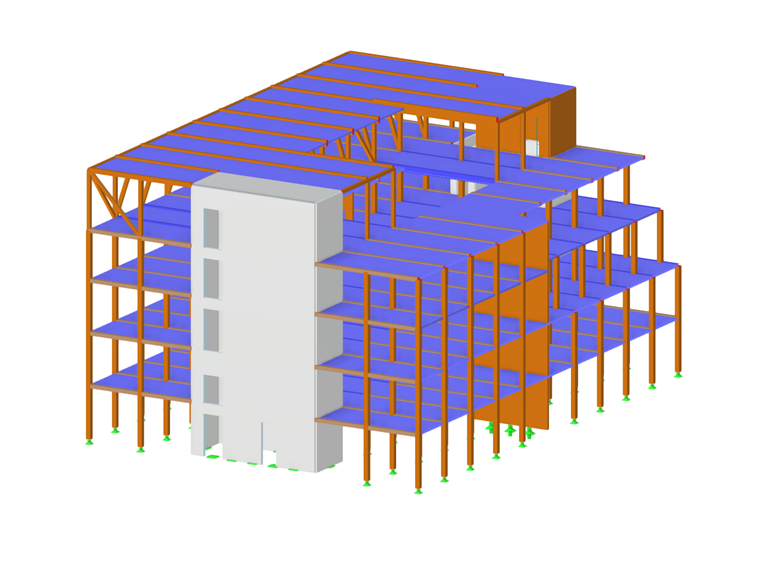

RFEM Model of Laboratory Building in Garching near Munich, Germany | © Lignaconsult

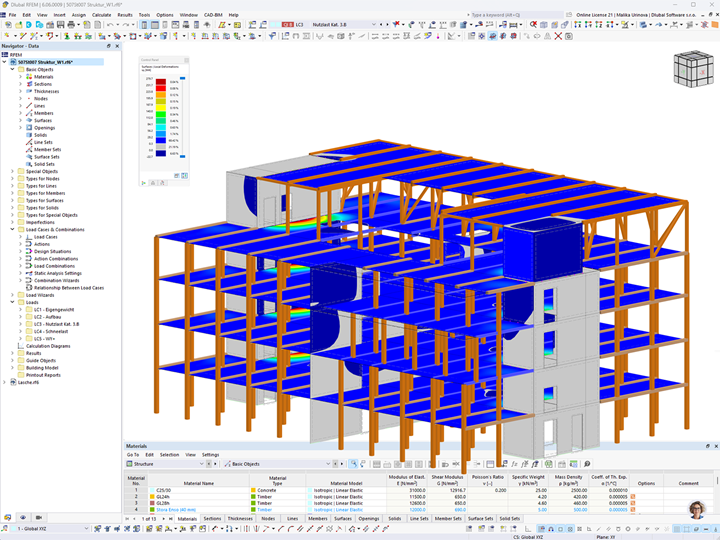

RFEM Model of Laboratory Building with Deformations | © Lignaconsult

Model Data

Number of Nodes 1161

Number of Lines 1640

Number of Members 689

Number of Surfaces 86

Number of Solids 0

Number of Load Cases 5

Number of Load Combinations 98

Number of Result Combinations 0

Total Weight 1141.188 tons

Dimensions (Metric) 27.800 x 20.380 x 38.000 m

Dimensions (Imperial) 91.21 x 66.86 x 124.67 feet
