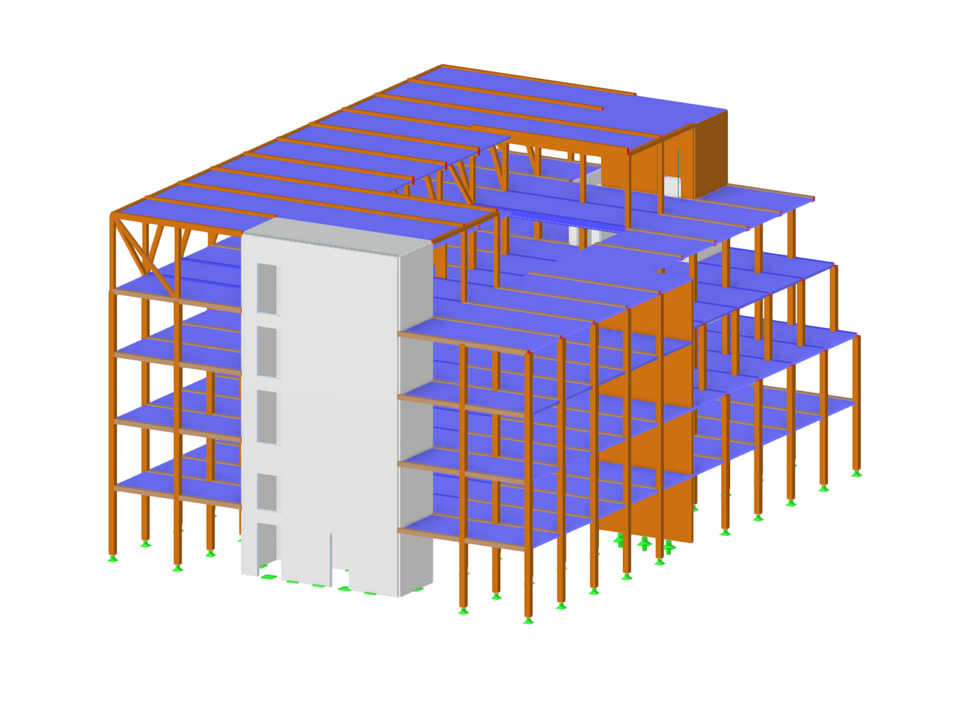

RFEM model of the laboratory building in Garching near Munich, Germany © Schrentewein & Partner
Model Used in
Overall
This page has 0 user ratings.
| 5 star | ||
| 4 star | ||
| 3 star | ||
| 2 star | ||
| 1 star |
Laboratory Building in Garching near Munich, Germany
No Download Possible
Customer Project / View Only
| Number of Nodes | 1161 |
| Number of Lines | 1640 |
| Number of Members | 689 |
| Number of Surfaces | 86 |
| Number of Solids | 0 |
| Number of Load Cases | 5 |
| Number of Load Combinations | 98 |
| Number of Result Combinations | 0 |
| Total Weight | 1141.188 tons |
| Dimensions (Metric) | 27.800 x 20.380 x 38.000 m |
| Dimensions (Imperial) | 91.21 x 66.86 x 124.67 feet |
