A taper is a member or surface with a variable cross-section distribution. Application cases for variable cross-section shapes are the reinforcements in the area of frame joints, cantilevered members or slabs and towers with conical hollow sections.
Modeling in RFEM/RSTAB

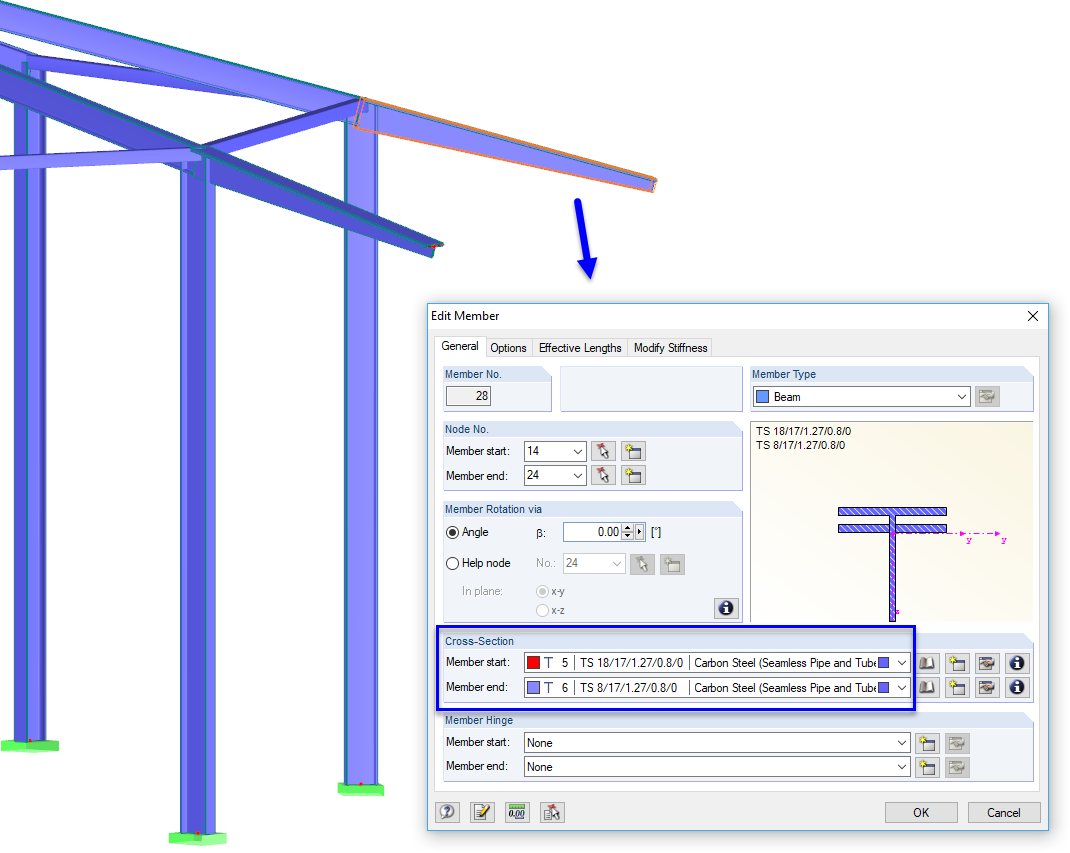

A tapered member is modeled by defining different cross-sections for the member start and the member end. The cross-section type must be consistent; for example, I-shaped cross-sections at both member ends.
To determine the member stiffness, the cross-section properties are interpolated using the member length. The interpolation can be adapted to the geometry of the taper: as a rule of linear distribution, the cross-section is only reduced or extended by the height. If the cross-section width is also changed, we recommend using the quadratic approach for the interpolation of the cross-section properties.
It is also possible to model surfaces as tapers by defining the surface thickness by three points as linearly variable. The definition points can be within the surface or even outside it as long as they rest in the plane of the surface.
Design
The design of tapered members in add-ons, such as Steel Design or Stress-Strain Analysis is possible if a uniform number of stress points is given.
By clicking the links below, you can find application examples of tapered members in the add-on modules of the RFEM 5 program generation.
