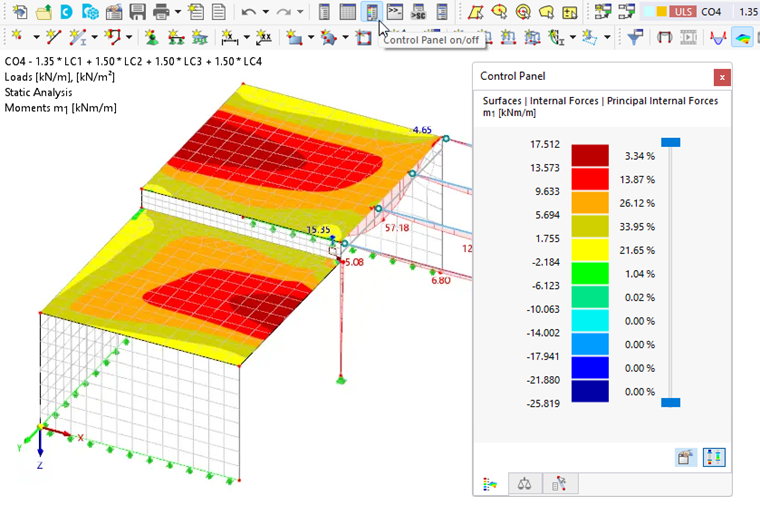

The panel provides various display and control options for the display of internal forces, deformations, or design checks. It consists of several tabs.
You can show or hide the panel by selecting the menu "View" → "Control Panel" or using the
button.
