Surface Releases

With a surface release, the model can be decoupled on a surface. You can use it to model, for example, solids being connected in an unbraced manner or transferring only compressive forces on the contact surface. The displacements are controlled by the 'Surface Release Type' that describes the properties of the hinge.

Tip

With a surface release it is possible to define nonlinear contact properties for surfaces without generating a contact solid between them.

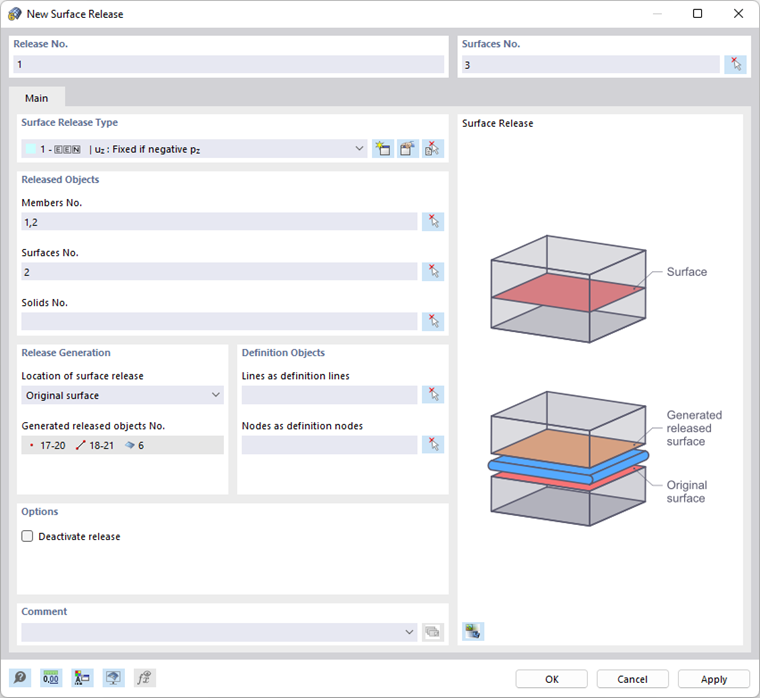

Surface Release Type

The properties of the release are described by a hinge. Select the release type in the list, or define a new type using the New button. The corresponding dialog box is described in the Surface Release Types chapter.

Released Objects

Specify the numbers of the members, surfaces, and solids that are decoupled at the surface. You can use the Select Individually button to define the objects graphically in the work window.

Release Generation

Info

Surface releases result in double surfaces belonging to different parts of the model.

RFEM creates a copy of the surface at the locations allowing the released displacements. In the list, select whether to place the release (hinge) on the 'Original surface' or the 'Released surface'. The setting specifies with which part of the model the hinge is shifting, thus having an effect on the results.

When you have defined a surface, the number of the generated surface including node and line numbers is shown. In the navigator, it is marked with the added 'Surface Release' labeling. It cannot be edited.

Definition Objects

The released surface is automatically created as a copy with corresponding lines and nodes. However, if you want to use one or more already existing lines or nodes for the generated surface, you can specify the corresponding numbers in this dialog section.

Options

With the 'Deactivate release' check box you can cancel the decoupling on the surface for certain analyses without deleting the surface release itself.

Example

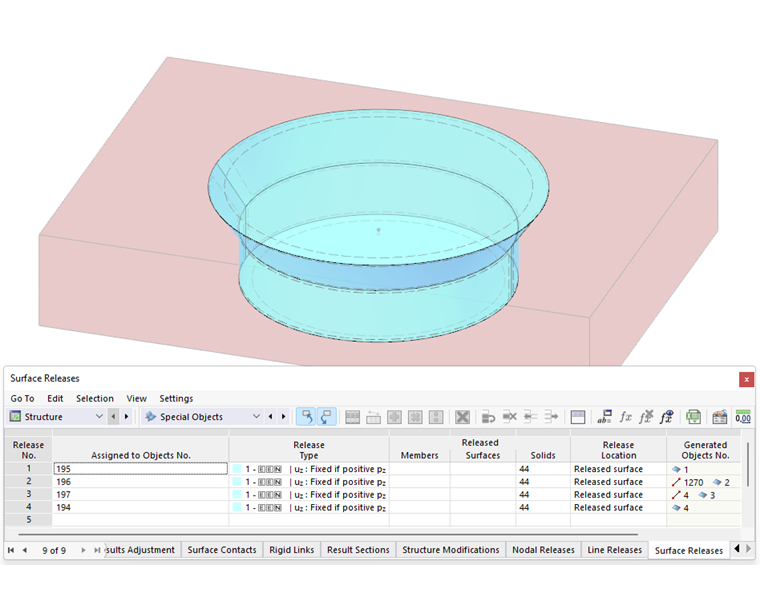

For a funnel-shaped component, the cap should only act under compression forces. Here, it is necessary to define a surface release type with the 'Fixed if positive pz' effect. Then, use this type for the surface releases for the boundary surfaces of the inner solid ("plug").
