Selecting contents as described in the Printout Report Manager chapter involves a lot of effort. Therefore, it is possible to save a compilation, including graphics, as a template and use it for other models. This allows you to efficiently create printout reports from templates. Some templates are set up during the installation.
Importing a template
To use a template for the current printout report, click the
button in the bottom left of the
Printout Report Manager

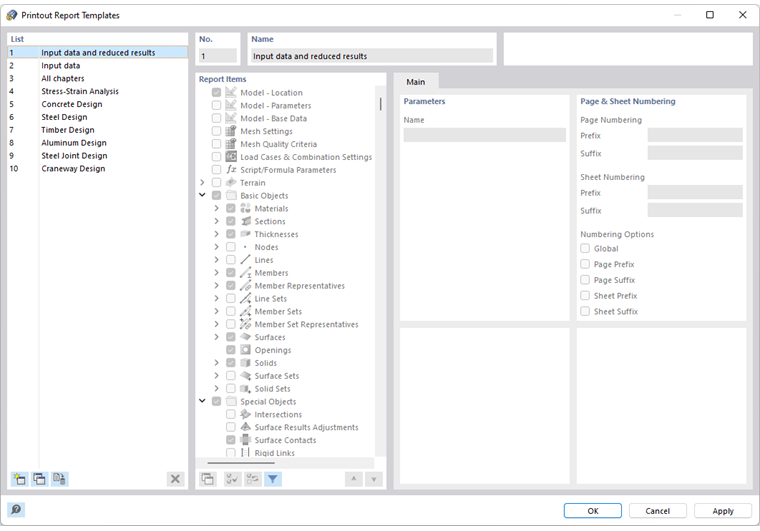

. The 'Printout Report Templates' dialog box appears.
.png?mw=760&hash=f788f3577019afe1230e555ae818c3fe8437992f)
The 'List' includes various templates for the printout of the structural analysis and the design add-ons. The preset printout report templates cannot be modified.
If you have created some user-defined templates (see Creating a template), you can select one of these entries in the list and, if necessary, adjust the report items. Click OK to apply the settings of the template to the current printout report.
The buttons below the 'List' have the following functions:
|
Creates a new printout report template |
|
Copies selected printout report template |
|
Defines settings of selected template as default for new printout reports |
|
Deletes selected user-defined printout report template |
Creating a template

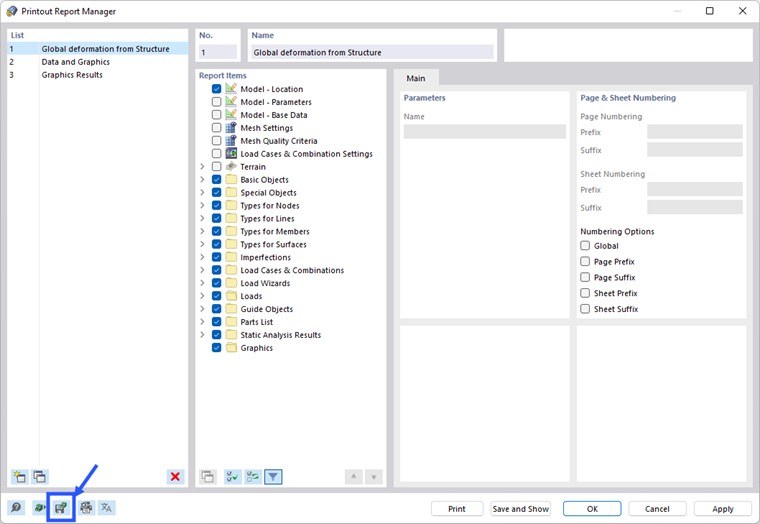

To save the settings of the current printout report, including graphics, as a template, click Edit Printout Report on the Edit printout report menu. You can also click the
button in the printout report toolbar. The 'Printout Report Manager' dialog box appears. Click the
button at the bottom left.

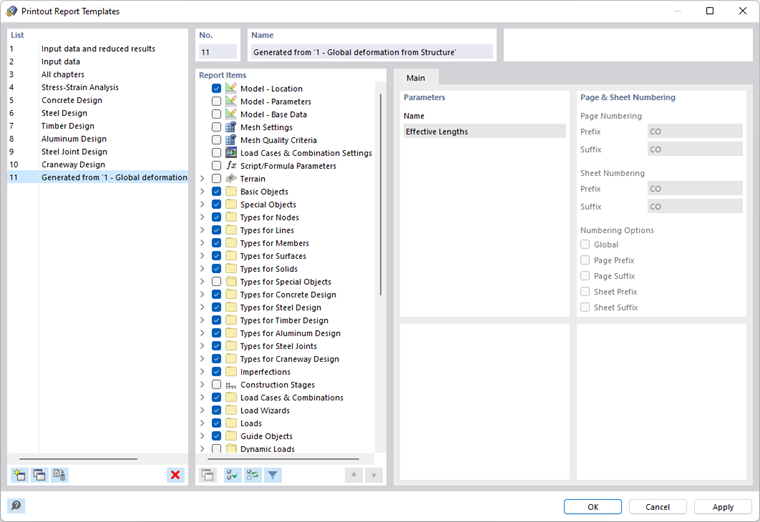

The 'Printout Report Templates' dialog box appears.
The new template appears as the last entry in the list. You can change the preset description in the 'Name' dialog section.
Save the new printout report template by clicking OK.
