Opening Dialog Box for Editing Objects

As for the input dialog boxes, there are different ways to open the dialog box for editing an object:

• "Edit" menu

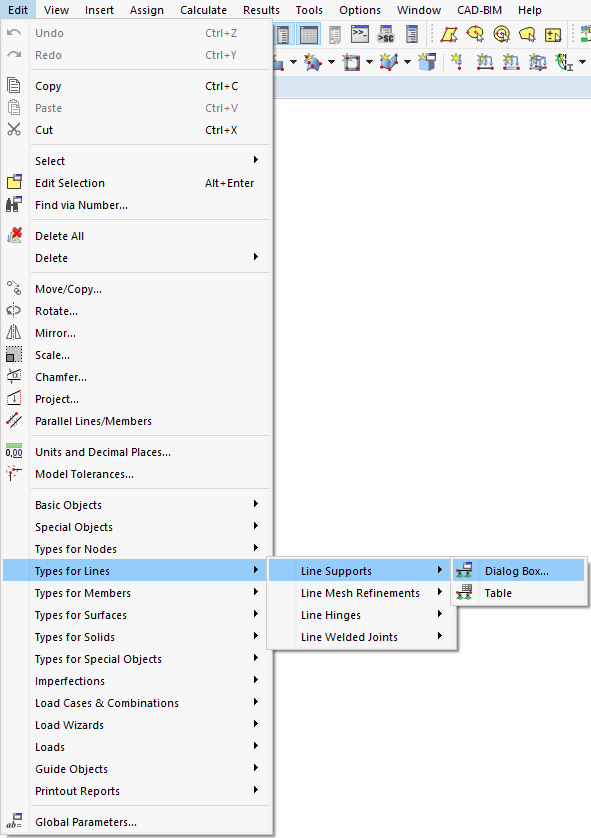

Menu "Edit"

• Shortcut menu or double-click in graphics

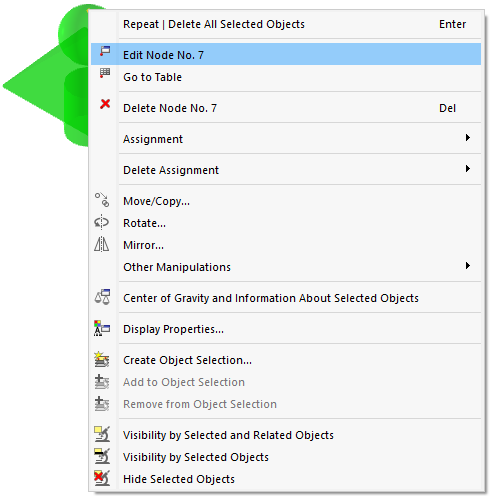

Shortcut Menu of Node

Double-click the object in the work window. Alternatively, you can use the object's shortcut menu.

• Shortcut menu or double-click in the navigator

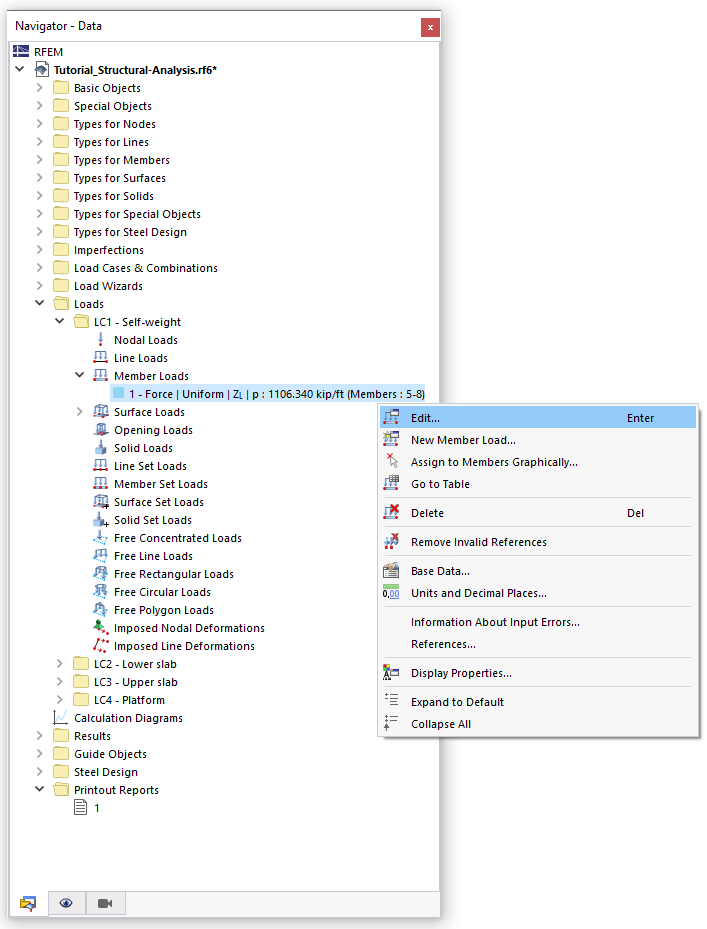

Shortcut Menu of Member Load

• Shortcut menu or double-click in the table

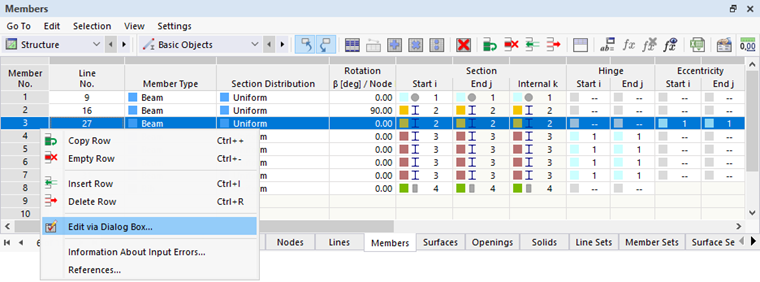

Shortcut Menu in Table

Double-click the row of an object. Alternatively, you can use the shortcut menu of the row number.

• The button in the dialog box

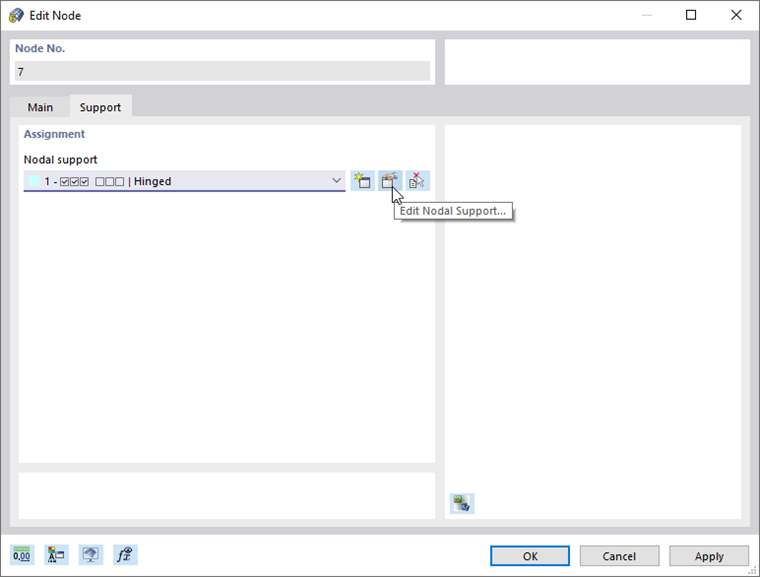

Button for Editing Object Type

The input dialog boxes are aligned with the objects or types. In some dialog boxes, you can only adjust selected object properties, but in other dialog boxes you can also create new assignments or new object types.

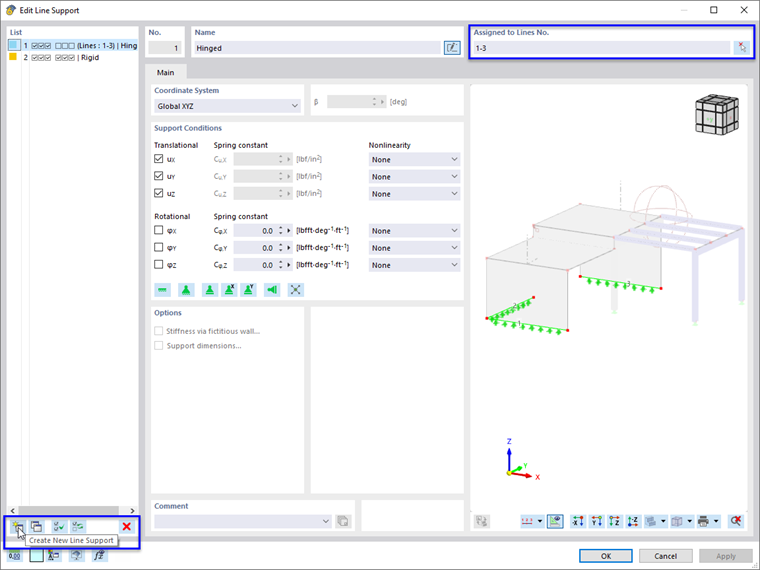

Dialog Box "Edit Line Support" with Options for Assigning and Creating New Types

The image above shows the edit dialog box for line supports. Various support types are defined on the left in the "List". Select an entry in the list, then adjust the support properties. Use the button to assign the selected support type graphically to one line or several lines. You can also extend or reduce the list of support types. Use the buttons below the list.

Buttons for "List" of Object Types

	Create a new object type
	Copy the selected object type
	Select all object types
	Reverse the selection of object types
	Delete the selected object type
