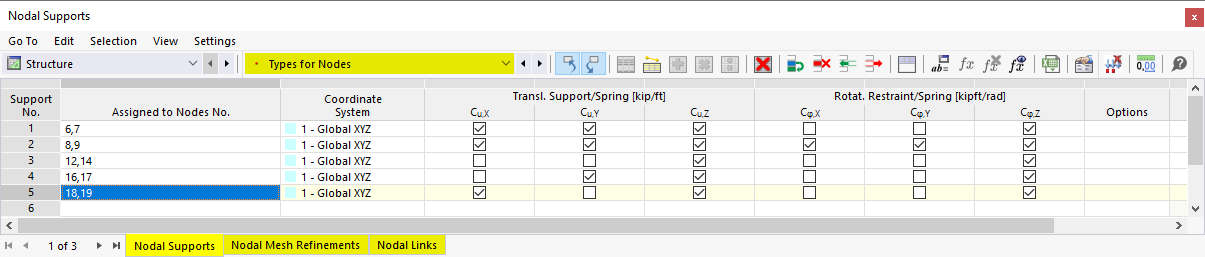

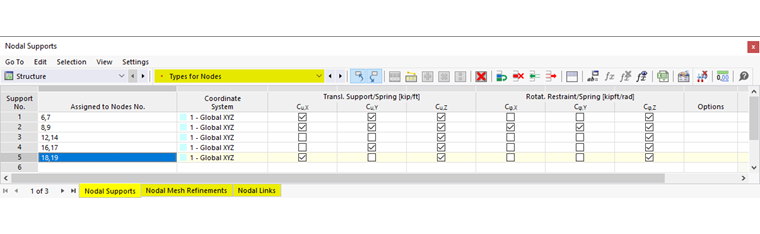

The Types for Nodes category manages special properties of the nodes, such as supports and FE mesh refinements. They are listed as subcategories in the navigator. In the table, the data are arranged in corresponding tabs.
