Parts Lists

After the calculation, parts lists are available in the Parts Lists table category.

Selecting "Parts Lists" Category

This category represents a summary of the members, surfaces, and solids used, sorted by materials. The parts lists include all objects that have identical properties ("items").

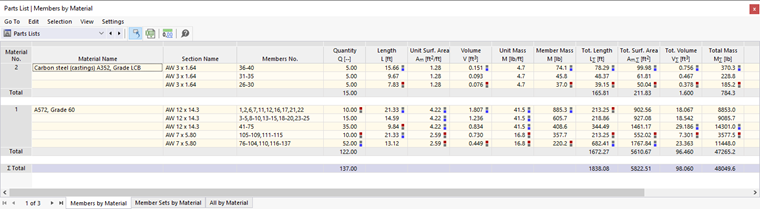

Parts List of Members in Table

The 'All by Material' table provides a general survey of the materials and objects used.

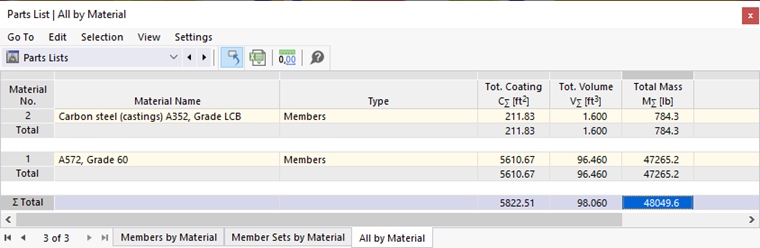

Parts List for All Objects

In the 'Total Mass' column, the weight of the individual items is shown. The total mass of the model can be seen in the last row.
