Mats

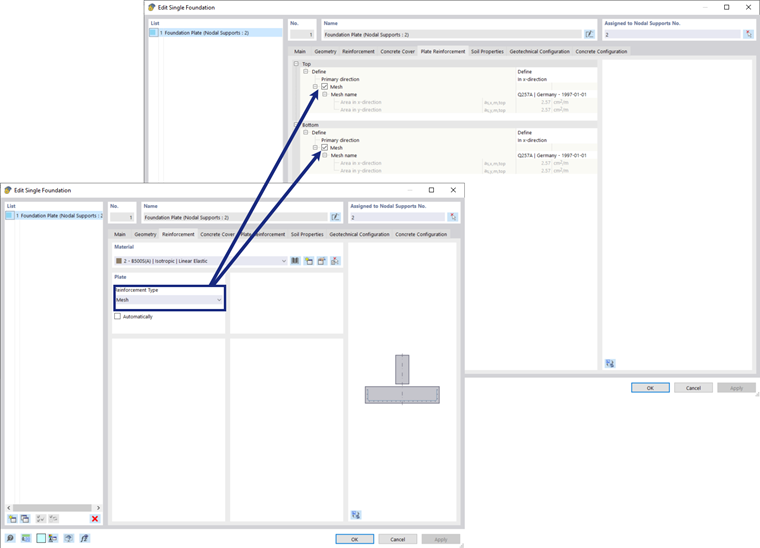

If you have selected the Mesh Reinforcement type in the Reinforcement tab, you can only define meshes here.

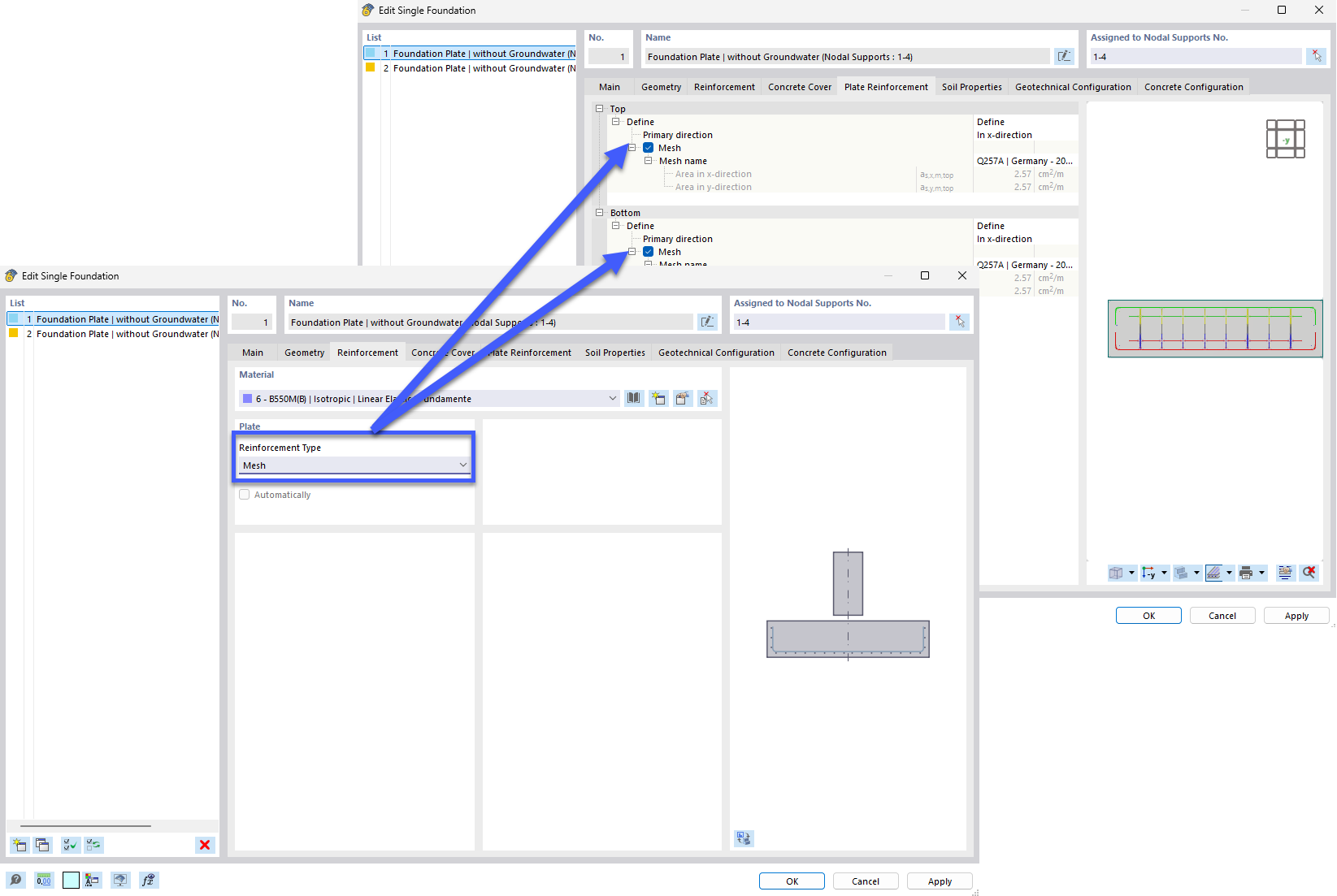

Detail of the plate reinforcement in a concrete foundation with a focus on reinforcement meshes.
Plate Reinforcement for Concrete Foundations

In der Liste 'Definieren' haben Sie mehrere Auswahlmöglichkeiten jeweils für die Ober- und Unterseite:

  1. Bewehrung manuell definieren
  2. RFEM definiert die Bewehrung automatisch (in Vorbereitung)
  3. Bewehrung deaktivieren
Concrete Foundations | Defining Mesh in Drop-Down Menu
Concrete Foundations | Defining Mesh in Drop-Down Menu

Die erste Bewehrungsrichtung (in x- oder y-Richtung) können Sie in der Liste Primäre Richtung definieren.

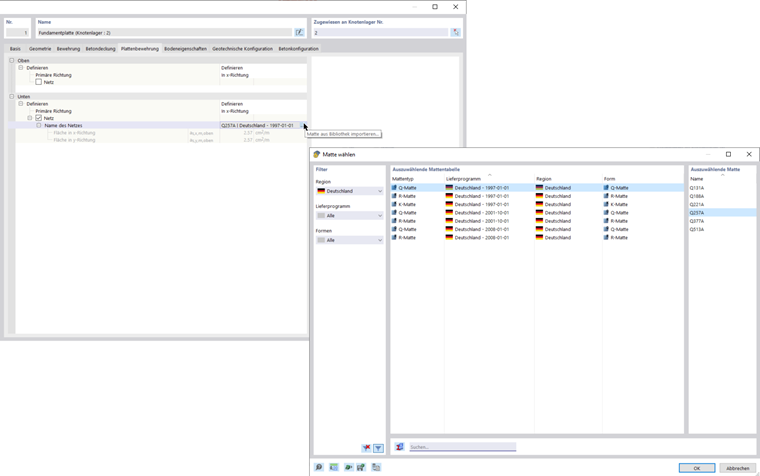

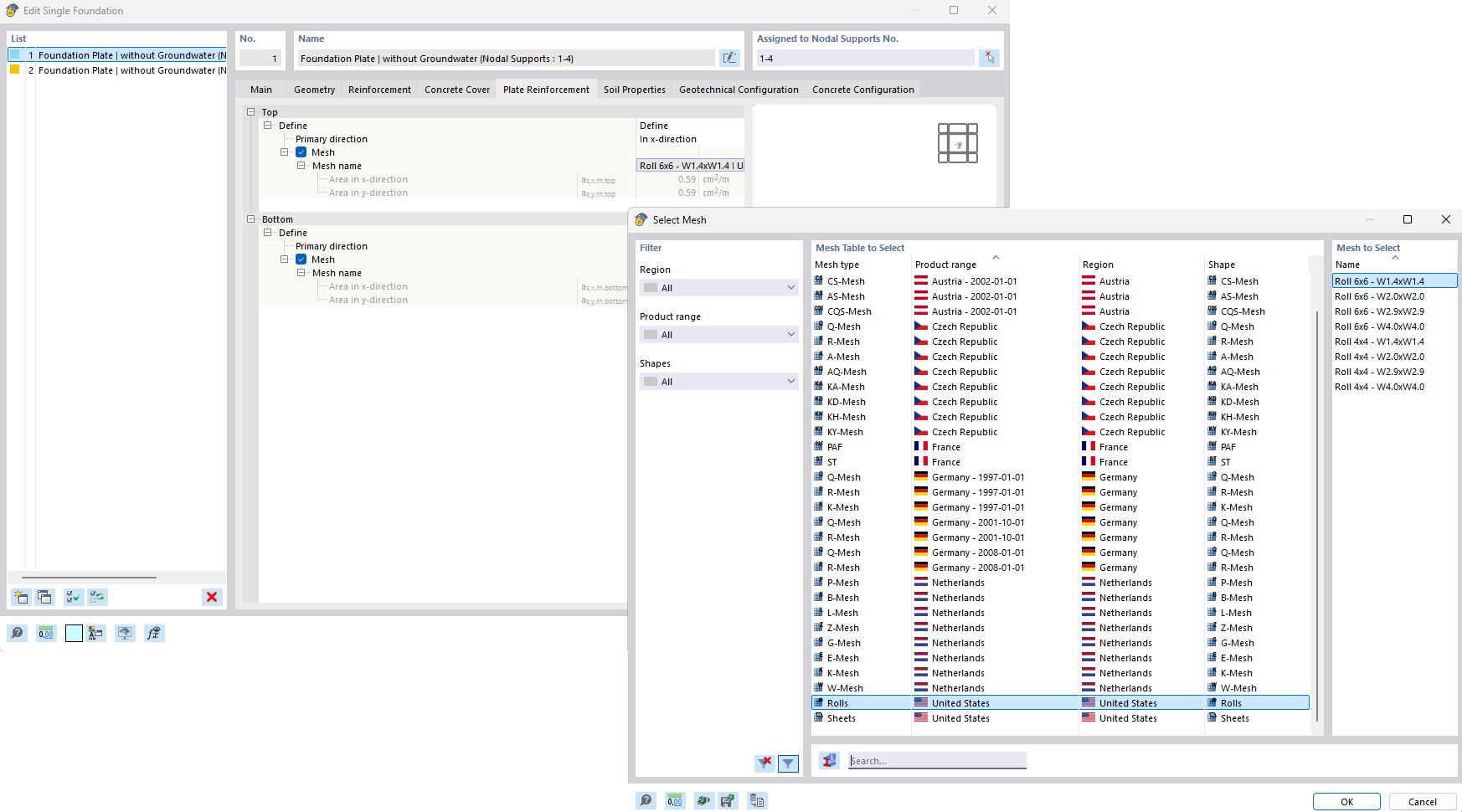

Unter Name der Matte können Sie mit der Schaltfläche Edit Object eine Matte aus der Bibliothek importieren.

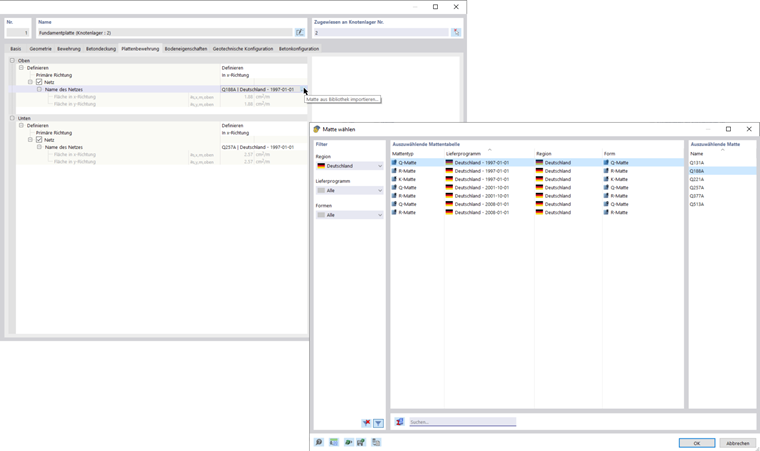

Rendering of concrete foundations, displayed with an imported mesh from the library.
Importing Concrete Foundations from Library

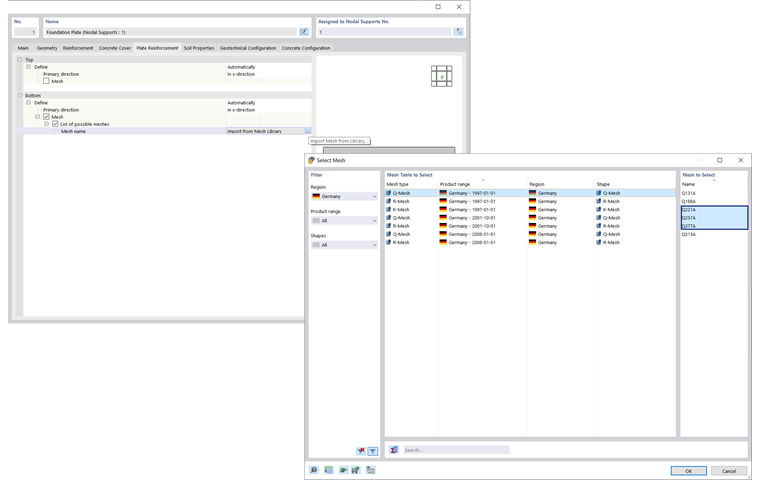

Wenn die Bewehrung so eingestellt ist, dass sie automatisch ausgewählt wird (in Vorbereitung), können Sie eine Liste von Matten in der Bibliothek auswählen. RFEM wählt dann aus dieser Liste die passende Matte aus.

Concrete Foundations | Selecting Mesh from Library
Concrete Foundations | Selecting Mesh from Library
