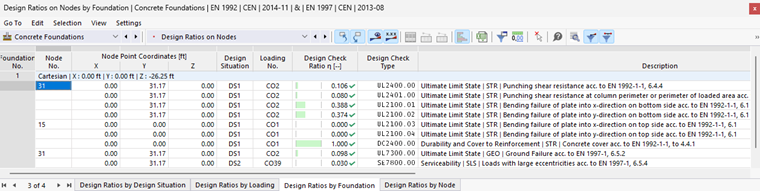

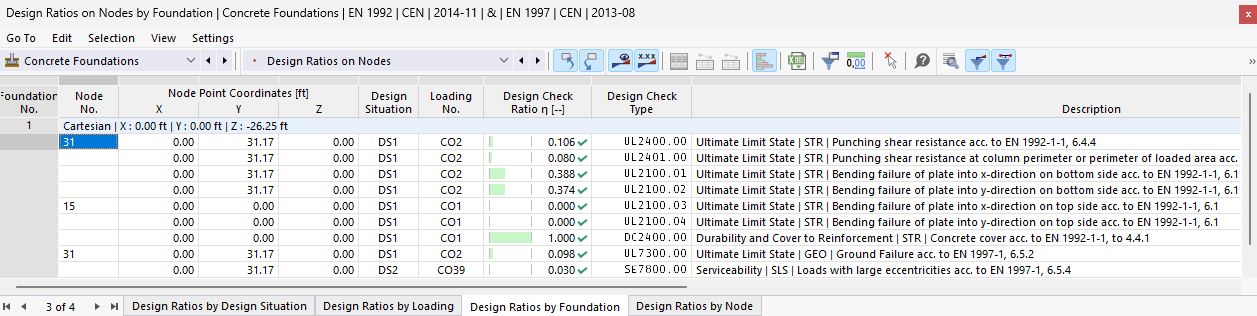

The result tables of the Design Ratios on Nodes category contain the result data of the performed foundation designs.
The designs of the nodes are sorted in the tabs according to the following criteria:
- Design Situations
- Loads
- Node
Node No.
For each design criterion, the number of the node with the greatest design ratio is shown.
Node Point Coordinates
The coordinates X, Y, and Z of the nodes are shown in three columns.
Design Situation
This column contains the numbers of the Design Situations for which the individual design ratios are available.
Loading
This column shows the numbers of the load or result combinations that are governing for the respective design checks.
Design Check Ratio
This column shows the design conditions according to Norm . The utilization degree is expressed by the length of the colored bar.
Design Check Type
Each design is identified by an identifier with a number. All ultimate limit state design checks have the "UL" identifier. In the Description column, the type of the design is explained.
Design Check Formula
You can check this column in the Ergebnistabellen-Manager Activate. It shows the equations of the standard according to which the design checks are carried out.
Description
Each design is explained by a short description with reference to the section in the standard.
Tip
You can display the 'Design Check Details' for a certain design ratio by using the
or by double-clicking the row.

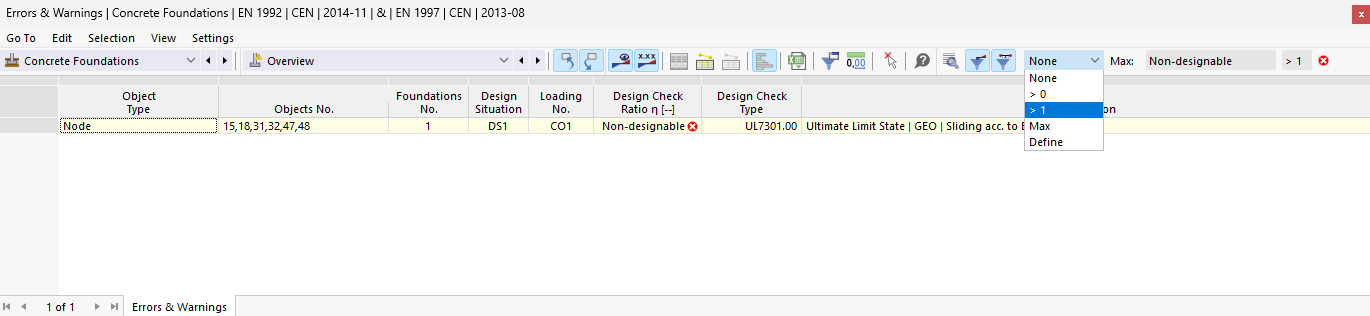

Filtering Results by Ratio
The list on the right in the table toolbar allows you to filter the tables by the utilization degree. The Max option shows only the governing design for each object.
You can also define your own filter options in the format "> #.##" in this list. Thus, only the ratios greater than the user-defined value are displayed in the table.
